Schneider Electric LAD7C1 Pre-wired Connector Tesys

Product Description

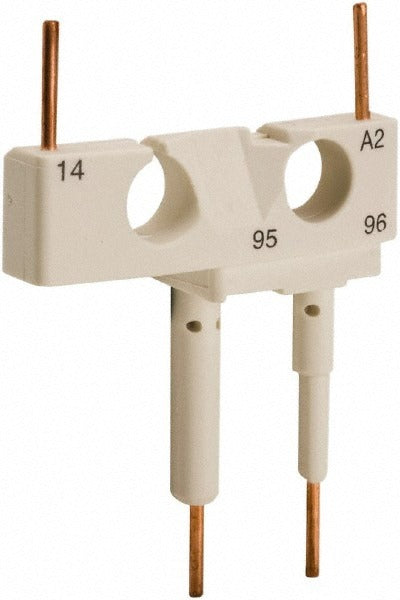

The SCHNEIDER ELECTRIC LAD7C1 is a pre-wired connector accessory designed to simplify wiring connections on compatible contactors and overload relays. This component eliminates the need for individual terminal connections by providing a factory-wired interface that plugs directly into the control circuit. It is installed by licensed electricians and industrial maintenance technicians working on motor control applications. The LAD7C1 measures 1.6 inches in length, 2.6 inches in width, and 0.4 inches in height, with a total weight of 0.01 pounds, making it a compact, low-profile solution for panel and enclosure installations.

This pre-wired connector is suited for use in motor control centers, industrial control panels, and equipment panels where TeSys-series contactors and overload relays are deployed. It is appropriate for both new installations and service replacements in commercial and light industrial settings where clean, reliable low-voltage control wiring is required.

Key Features

• Factory pre-wired design reduces field wiring time and connection errors
• Compact form factor at 1.6 x 2.6 x 0.4 inches fits tight panel spaces
• Plug-in interface compatible with TeSys series contactors and overload relays
• Sold and packaged as a single unit for direct replacement use

Compatibility

Designed for use with LC1D09-D18 contactors, LR3D01-D35 overload relays, LRD01-35 overload relays, and TeSys series devices as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before connecting or disconnecting this accessory. Verify that the target contactor or overload relay is fully powered down before inserting or removing the connector. Do not force the connector into place; confirm proper alignment with the mating terminal block before seating.
