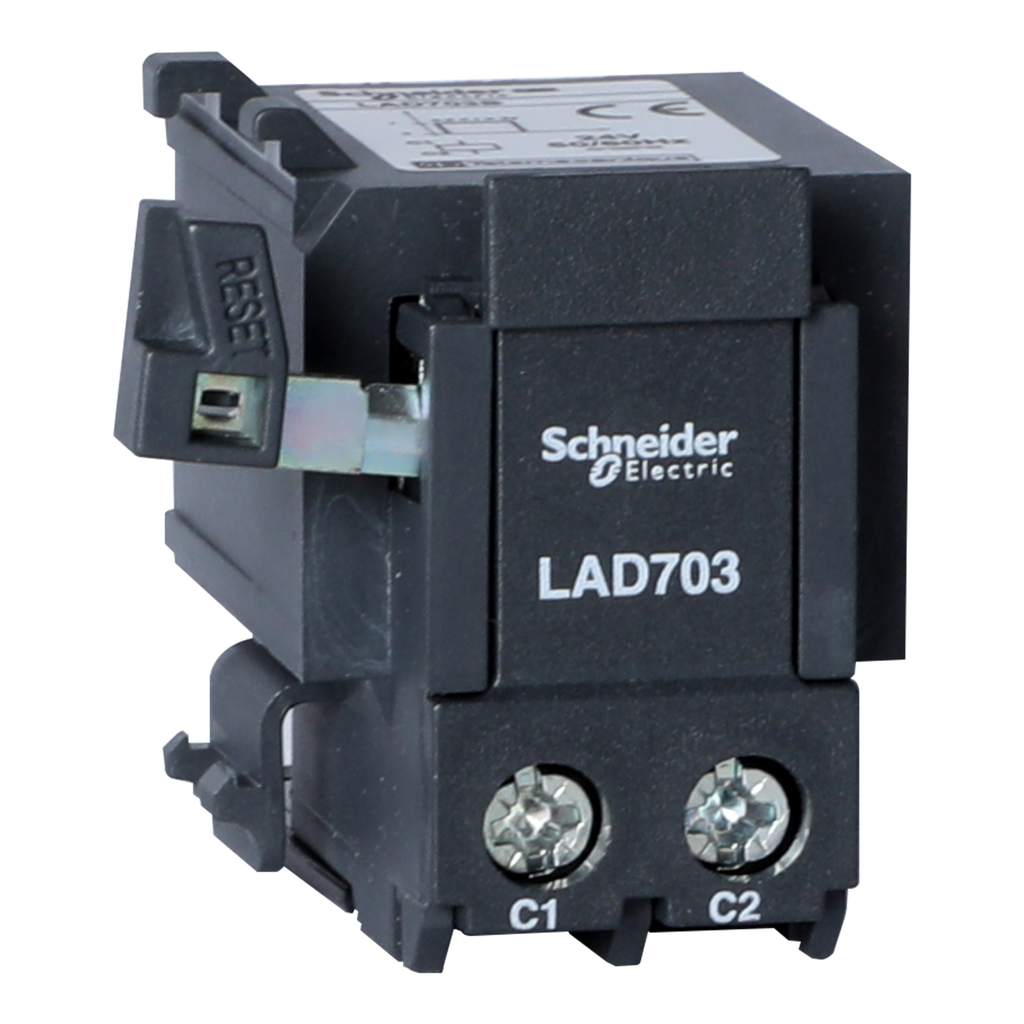

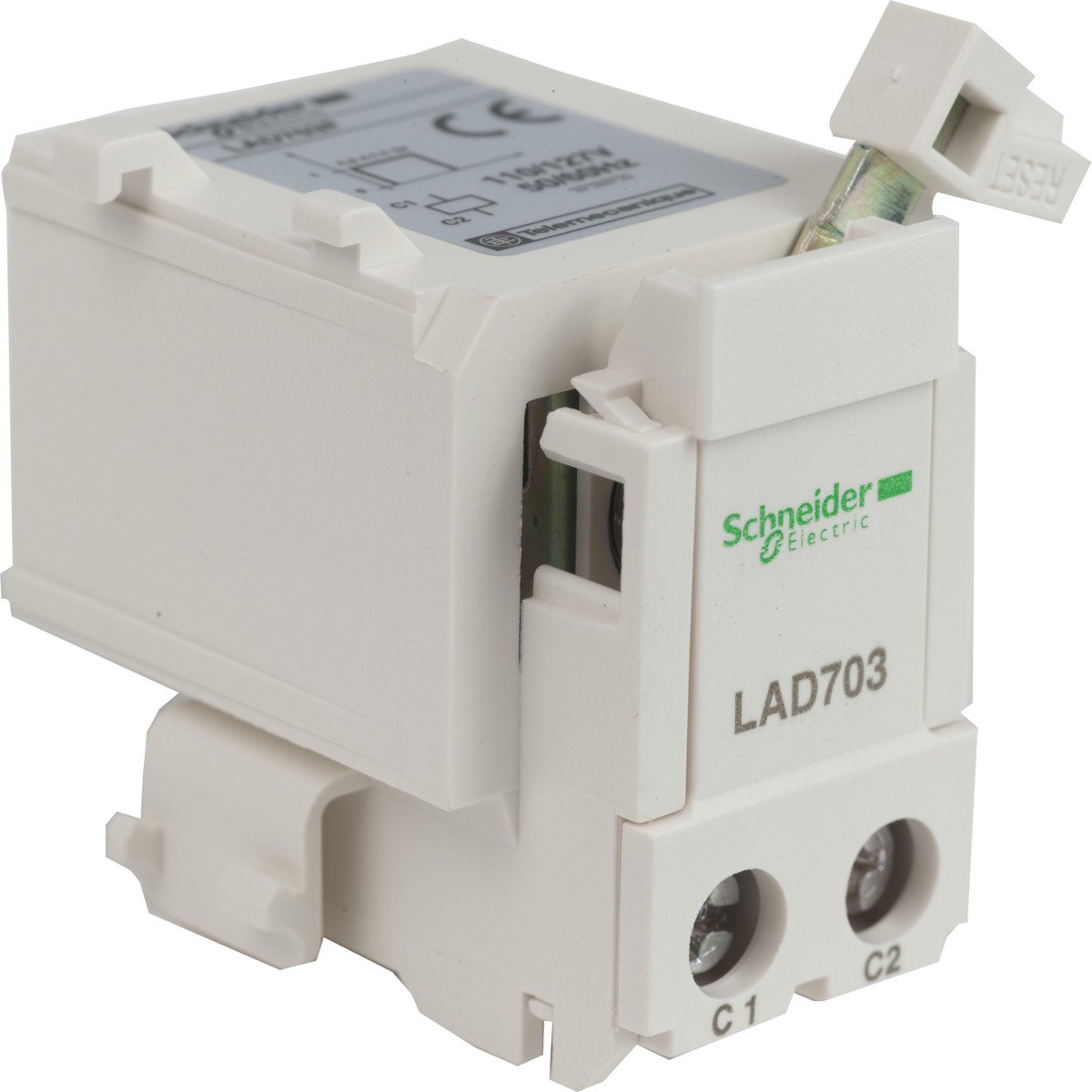

Schneider Electric LAD703F Remote Control Device 110 Volt Stop/Reset Overload Relay

Product Description

The Schneider Electric LAD703F is a remote control device designed for thermal overload relays. It operates on a 110 volt AC or DC control circuit, allowing remote tripping and electrical resetting. This unit is compatible with various models including LRD/LR3D D01-D35 and evaluates load conditions to prevent motor damage.

• Uses a 110V AC/DC control circuit
• Facilitates remote operation
• Mounts on thermal overload relays easily

Product Highlights

Ideal for applications requiring safe and efficient overload protection in electric motors and control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: LAD703F
• Net Weight: 0.09 kg
• Operating Temperature: -5C to 55C
• Warranty Length: 18 months
• Country of Origin: France
• Compatible Models: LRD01 to D35, LR3D01 to D35, LR9G
• Control Circuit Voltage: 110 V AC 50/60 Hz, 110 V DC
• Maximum Inrush Power: 100 VA
