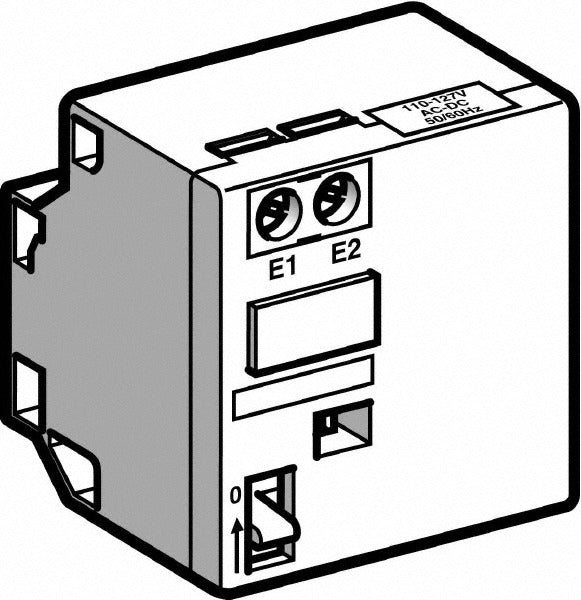

Schneider Electric LAD6K10F Contactor Mechanical Latch Block

Product Description

The SCHNEIDER ELECTRIC LAD6K10F is a mechanical latch block accessory designed for use with TeSys D series contactors and control relays. It provides a latching function that holds the contactor in the energized or de-energized position without requiring continuous coil power, reducing energy consumption and heat generation in control panel applications. The LAD6K10F weighs 0.22 pounds and measures 2 inches high, 2.5 inches wide, and 1.9 inches in length. Installation is performed by licensed electricians during panel assembly or contactor retrofit work.

This mechanical latch block is suited for industrial and commercial electrical control panel applications where contactors must maintain a switched state without sustained coil energization. Typical scenarios include motor control centers, automated switching circuits, and energy-conservation panel designs. It is compatible with LC1D09-D38, LC1D40A-D65A, LC1DT20-DT40, LC1DT60A-DT80A, TeSys D, and TeSys D Control Relays as specified by the manufacturer.

Key Features

• Holds contactor position without continuous coil power, reducing panel heat load
• Compatible across the TeSys D contactor family including multiple frame sizes
• Compact form factor: 2 inches high, 2.5 inches wide, 1.9 inches in length
• Sold as a single-unit accessory, no additional hardware kit required
• Direct OEM-style accessory for reliable integration with TeSys D hardware

Compatibility

Compatible with LC1D09-D38, LC1D40A-D65A, LC1DT20-DT40, LC1DT60A-DT80A, TeSys D, and TeSys D Control Relays.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before attaching or removing the latch block from the contactor. Verify mechanical alignment with the contactor frame before securing the accessory. Do not force the latch block onto incompatible contactor frames.
