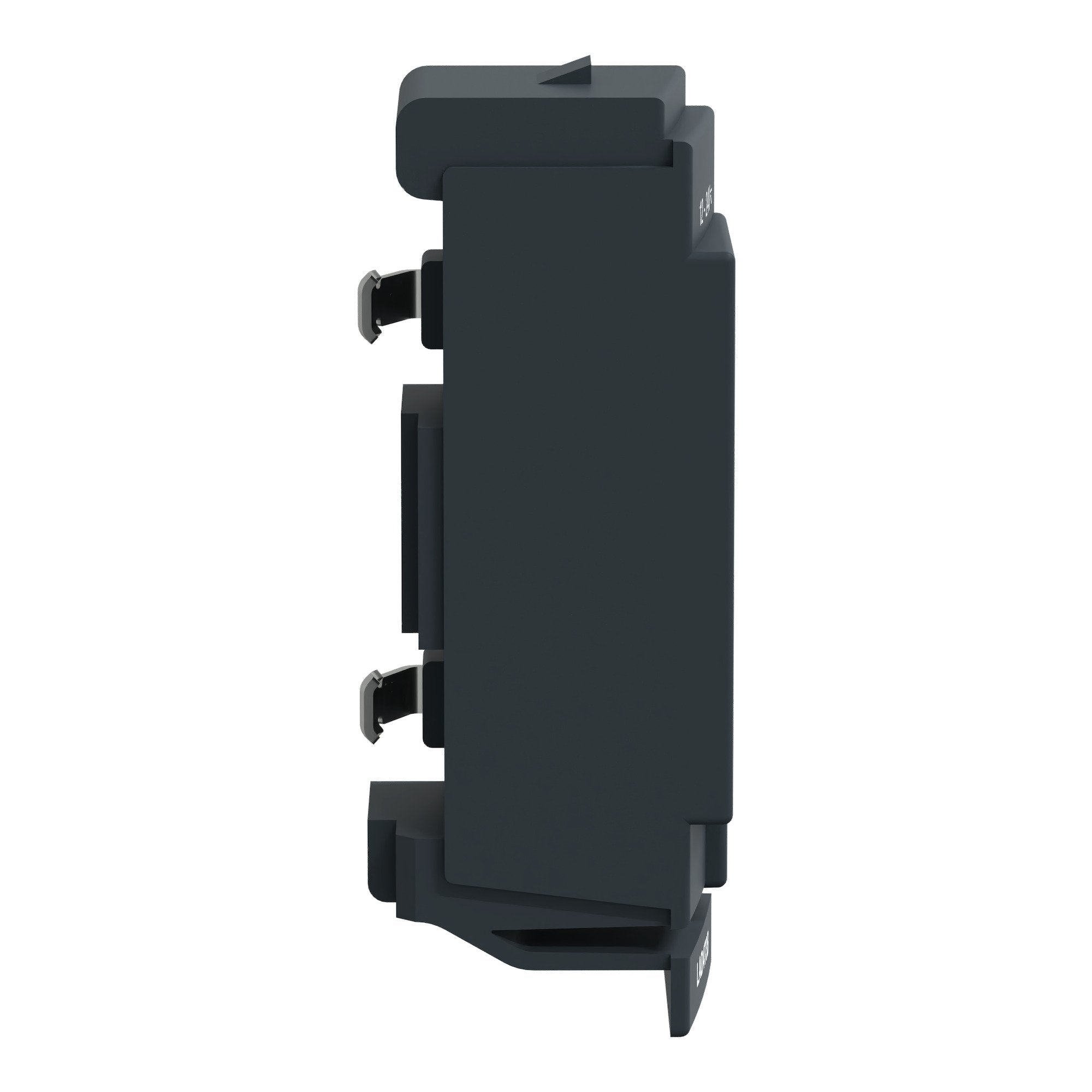

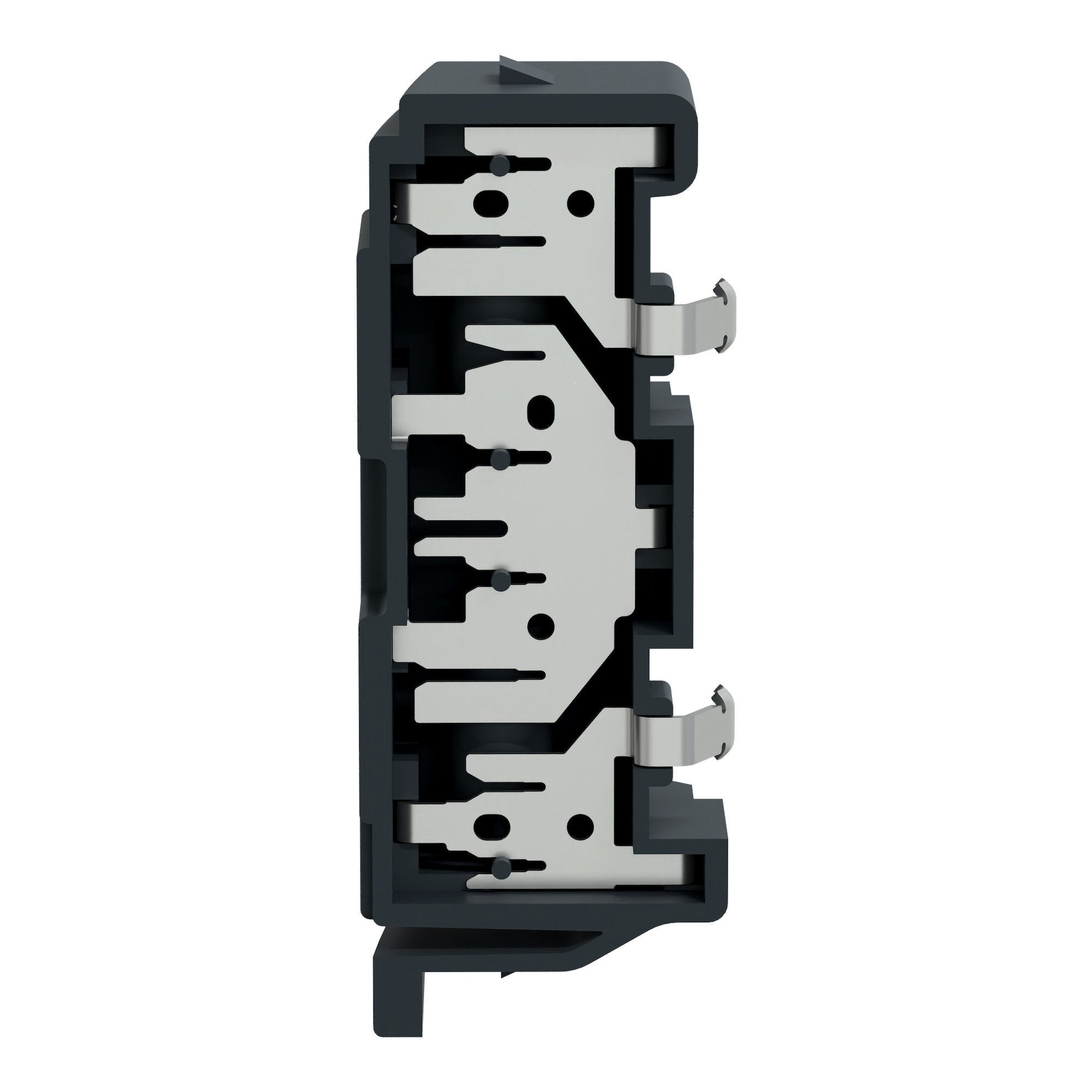

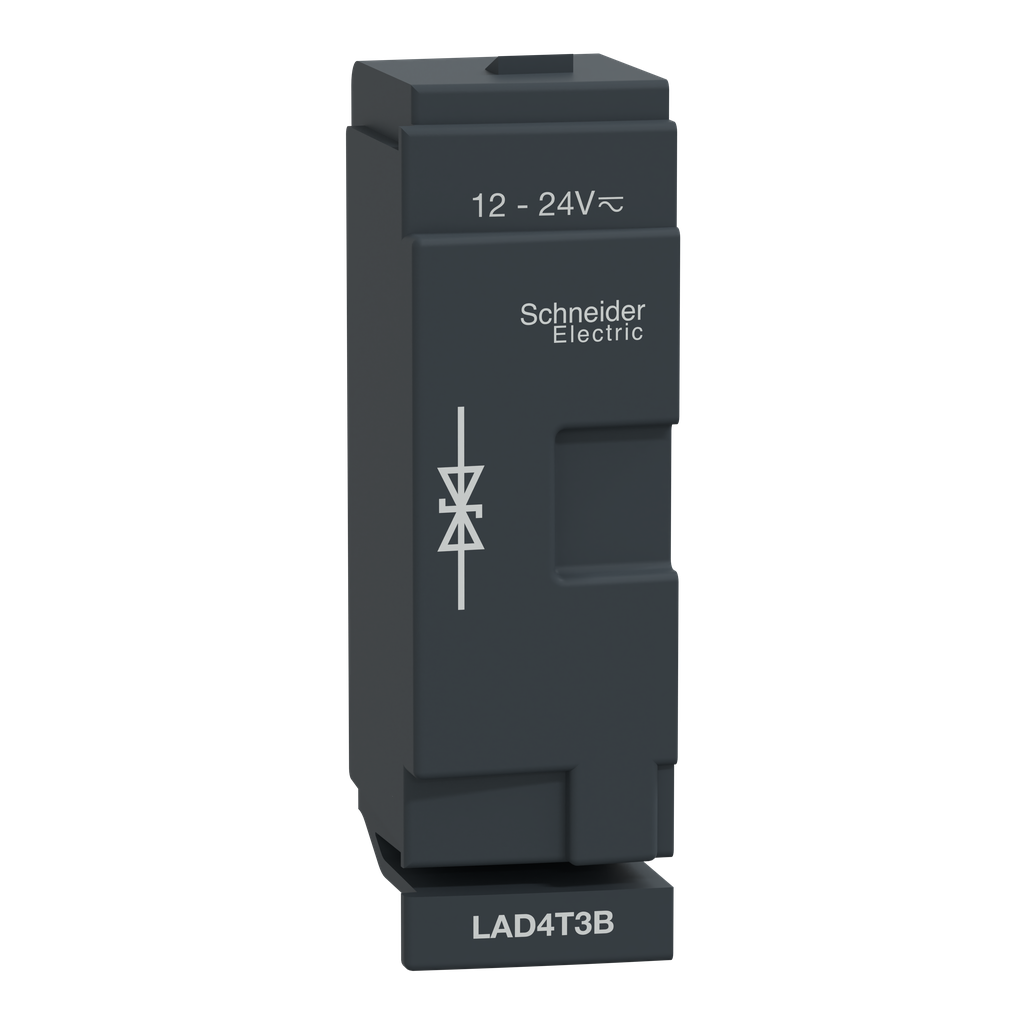

Schneider Electric LAD4T3B TeSys Deca - suppressor module - 24 V AC/DC

Product Description

The Schneider Electric LAD4T3B is a TeSys D suppressor module designed for use with LC1D40A-D80A and LC1DT60A-DT80A contactors. This module operates with control circuit voltages of twelve to twenty-four volts AC or DC. It features bidirectional peak limiting diodes to protect connected equipment by limiting transient voltage to a maximum of two times the control voltage. The installation is straightforward with a clip-on front mounting design, ensuring that the overall size of the contactor remains unchanged.

• Compatible with LC1D40A-D80A and LC1DT60A-DT80A contactors.
• Provides surge protection by limiting transient voltage.
• Clip-on mounting does not alter contactor dimensions.

Product Highlights

This suppressor module enhances operational safety in automation control setups, ensuring compliance with Green Premium standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D/Schneider

Technical Specifications

• Catalog Number: LAD4T3B
• Weight: 0.04 lb
• Coil Voltage: 12...24 V AC/DC; 50/60 Hz
• Mounting Type: Clip
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Operating Temperature: -25 to 55 degrees C
