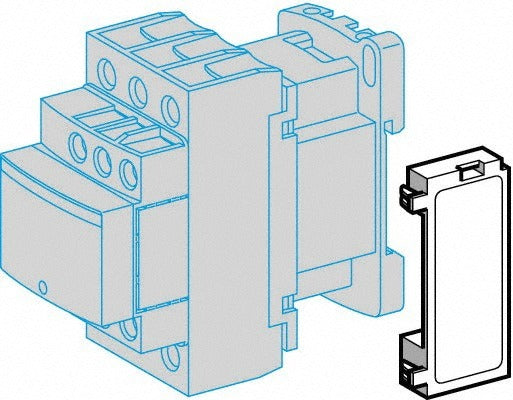

Schneider Electric LAD4RCE Contactor Suppressor Module

Product Description

The SCHNEIDER ELECTRIC LAD4RCE is a contactor suppressor module designed to reduce electrical noise and voltage spikes generated when a contactor coil de-energizes. Suppressor modules protect sensitive control circuits and extend the service life of contactor coils by absorbing the inductive kick at coil drop-out. This accessory mounts directly to the contactor body and is wired into the coil circuit. It is installed by licensed electricians and controls technicians working on motor control centers, panel boards, and industrial control panels where contactor longevity and circuit protection are required.

This suppressor module is rated for use with 3 Pole LC1D80-D150 contactors and the Schneider Electric TeSys D contactor family. It is commonly applied in commercial and light industrial electrical systems where coil suppression is needed to protect PLCs, relay outputs, and other low-voltage control components from transient voltage feedback. The compact form factor allows installation directly on the contactor without additional mounting hardware.

Key Features

• Mounts directly to compatible TeSys D series contactor bodies for a clean, integrated installation
• Suppresses inductive voltage transients at coil de-energization to protect control circuit components
• Compact dimensions of 1.2 inches length, 2.8 inches width, and 0.4 inches height for tight panel installations
• Lightweight at 0.03 pounds, adding negligible load to the contactor assembly
• OEM accessory designed for direct compatibility with 3 Pole LC1D80-D150 and TeSys D contactors

Compatibility

Designed for use with 3 Pole LC1D80-D150 contactors and the Schneider Electric TeSys D contactor family.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and local electrical codes. De-energize and lock out the panel or motor control center before installing or replacing any contactor accessory. The suppressor module snaps onto the contactor coil terminals — confirm the module seating is secure before restoring power. Do not install on contactors outside the specified compatible series.
