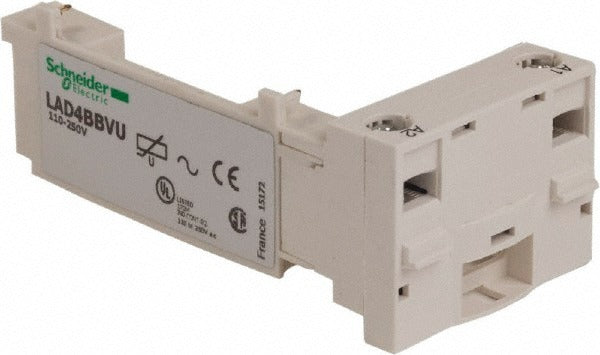

Schneider Electric LAD4BBVU Contactor Retrofit Coil Adapter

Product Description

The SCHNEIDER ELECTRIC LAD4BBVU is a contactor retrofit coil adapter designed to simplify coil replacement and upgrade work on compatible TeSys D series contactors. This accessory allows technicians to swap or retrofit coil assemblies without replacing the entire contactor body, reducing downtime and material cost on the job. It mounts directly to the contactor frame and interfaces with the existing coil cavity. The LAD4BBVU measures 2 inches in length, 3.6 inches in width, and 1.4 inches in height, and weighs approximately 0.09 pounds, making it a compact, lightweight component suited for panel and enclosure work.

This retrofit coil adapter is used in commercial and industrial electrical installations where TeSys D series contactors control motor loads, lighting circuits, or other electrical loads in motor control centers, distribution panels, and control enclosures. Electricians and controls technicians performing scheduled maintenance or field repairs on LC1D09 through LC1D38 contactors will find this adapter a direct-fit solution for coil replacement work without full contactor changeout.

Key Features

• Enables coil retrofit on existing contactor bodies, avoiding full unit replacement
• Compatible with LC1D09-D38 contactor frame sizes
• Designed for use with TeSys D series contactors
• Compact form factor: 2 inches x 3.6 inches x 1.4 inches
• Lightweight at 0.09 pounds for easy handling in tight enclosures
• Sold as a single-unit accessory (package quantity of 1)

Compatibility

Designed for use with SCHNEIDER ELECTRIC LC1D09-D38 contactors and the TeSys D product family.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and any applicable local electrical codes. De-energize and lock out the panel or control circuit before removing or installing any contactor coil components. Verify coil voltage rating compatibility before completing the retrofit. Do not force the adapter into position; confirm proper alignment with the contactor frame before securing.
