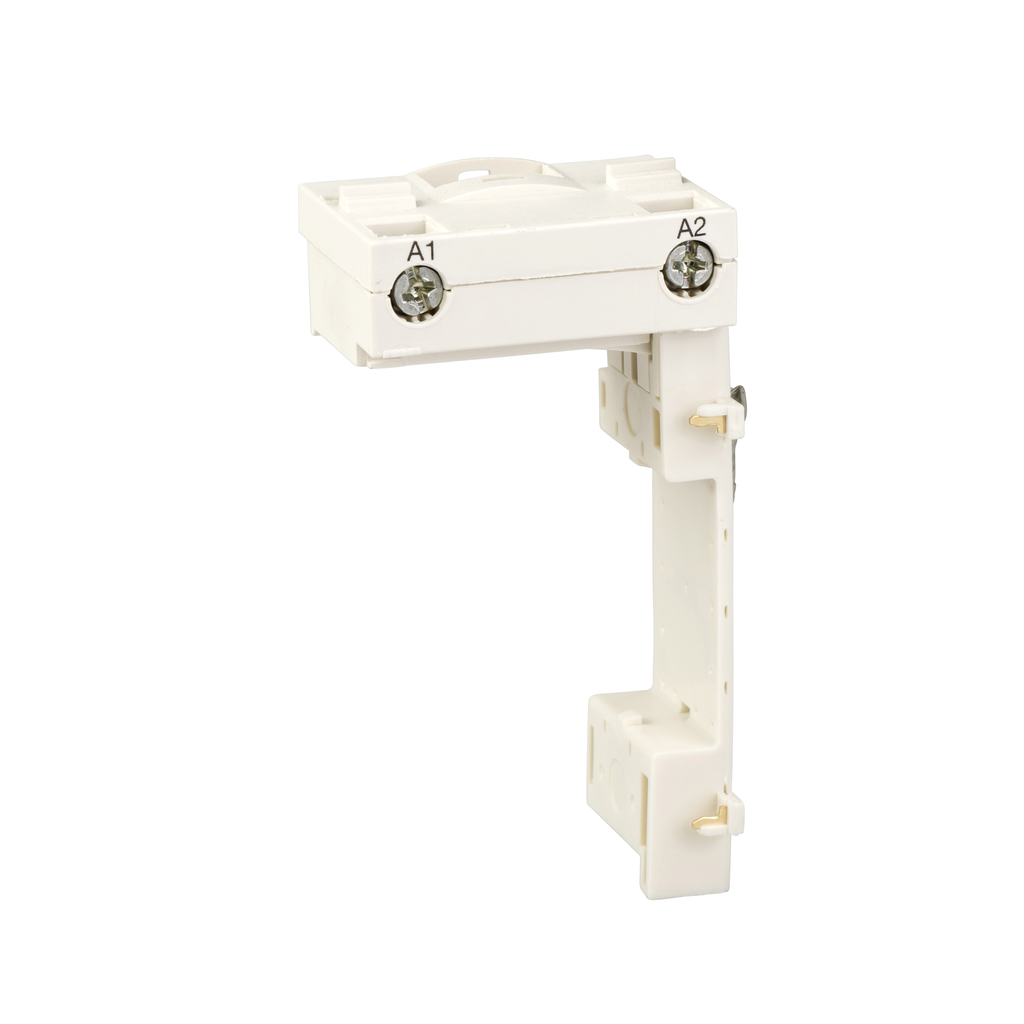

Schneider Electric LAD4BB Square D Contactor Retrofit Coil Adapter

Product Description

The Schneider Electric LAD4BB is a TeSys D wiring adapter designed for use with the coil circuit of three-pole contactors LC1D09 to LC1D38. This product enables connection to the coil circuit from the top of the contactor, facilitating the adaptation of existing wiring to newer models. It also provides a mounting option for an electronic timer module LA4DT, which must be ordered separately. This product is compliant with Green Premium standards, including RoHS and REACh.

• Compatible with LC1D09 to LC1D38 contactors
• Allows top access connection
• Mounting option for electronic timer module LA4DT

Product Highlights

Use this wiring adapter to modernize your existing electrical systems with ease and efficiency.

Product Information

Standard Information

• Catalog Number: LAD4BB
• Brand: Schneider Electric

Technical Specifications

• Type: Connection accessory; retrofit coil without coil suppression
• Weight: 0.04 lb
• Coil Voltage: AC ONLY
• Application: LC1D09 to LC1D38
• Operating Temperature: -5C to 55C
• Warranty Length: 18 months
• Country of Origin: France
• GTIN: 03389110470451
