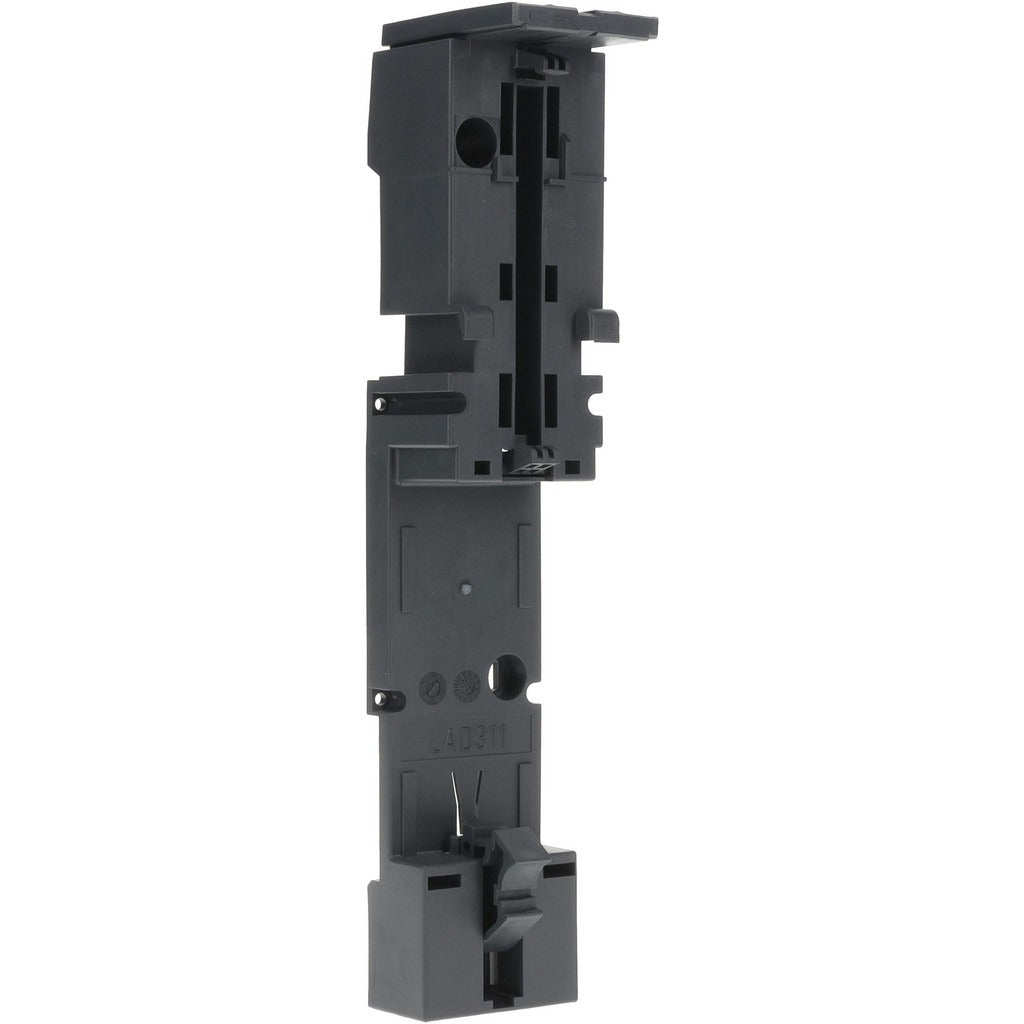

Schneider Electric LAD311 Contactor Mounting Plate

Product Description

The SCHNEIDER ELECTRIC LAD311 is a contactor mounting plate designed to secure and position contactors within electrical enclosures and control panels. This accessory provides a stable mechanical interface between the contactor and its mounting surface, ensuring proper alignment and reducing vibration-induced wear over time. Measuring 9.3 inches in length, 1.8 inches in width, and 2.3 inches in height, the LAD311 is a compact, OEM-style bracket suited for industrial and commercial electrical installations. Licensed electricians and panel builders are the primary installers of this component.

The LAD311 mounting plate is intended for use with SCHNEIDER ELECTRIC LC1D09-D38 and LS1D32 contactors, as well as TeSys GV2 motor starters and protective devices. It is commonly installed in motor control centers, machine control panels, and industrial distribution boards where TeSys series components are integrated. The plate supports clean, organized panel layouts and is packaged individually, making it straightforward to order as a direct replacement or for new panel builds.

Key Features

• Compatible mounting plate for LC1D09-D38, LS1D32, and TeSys GV2 series devices
• Compact form factor at 9.3 inches long, 1.8 inches wide, and 2.3 inches tall
• Lightweight at 0.24 pounds, minimizing added load inside the enclosure
• OEM accessory ensuring proper fit and alignment with SCHNEIDER ELECTRIC TeSys components
• Single-unit packaging supports precise quantity ordering for service and panel builds

Compatibility

Designed for use with SCHNEIDER ELECTRIC LC1D09-D38, LS1D32, and TeSys GV2 series contactors and motor starters as specified by the manufacturer.

Installation Notes

Installation of this mounting plate should be performed by a qualified electrician in accordance with applicable NEC requirements and local electrical codes. De-energize and lockout/tagout the panel before beginning any mounting or wiring work. Verify that the contactor or starter being mounted is compatible with the LAD311 before securing hardware. Do not modify the plate or force-fit incompatible devices.
