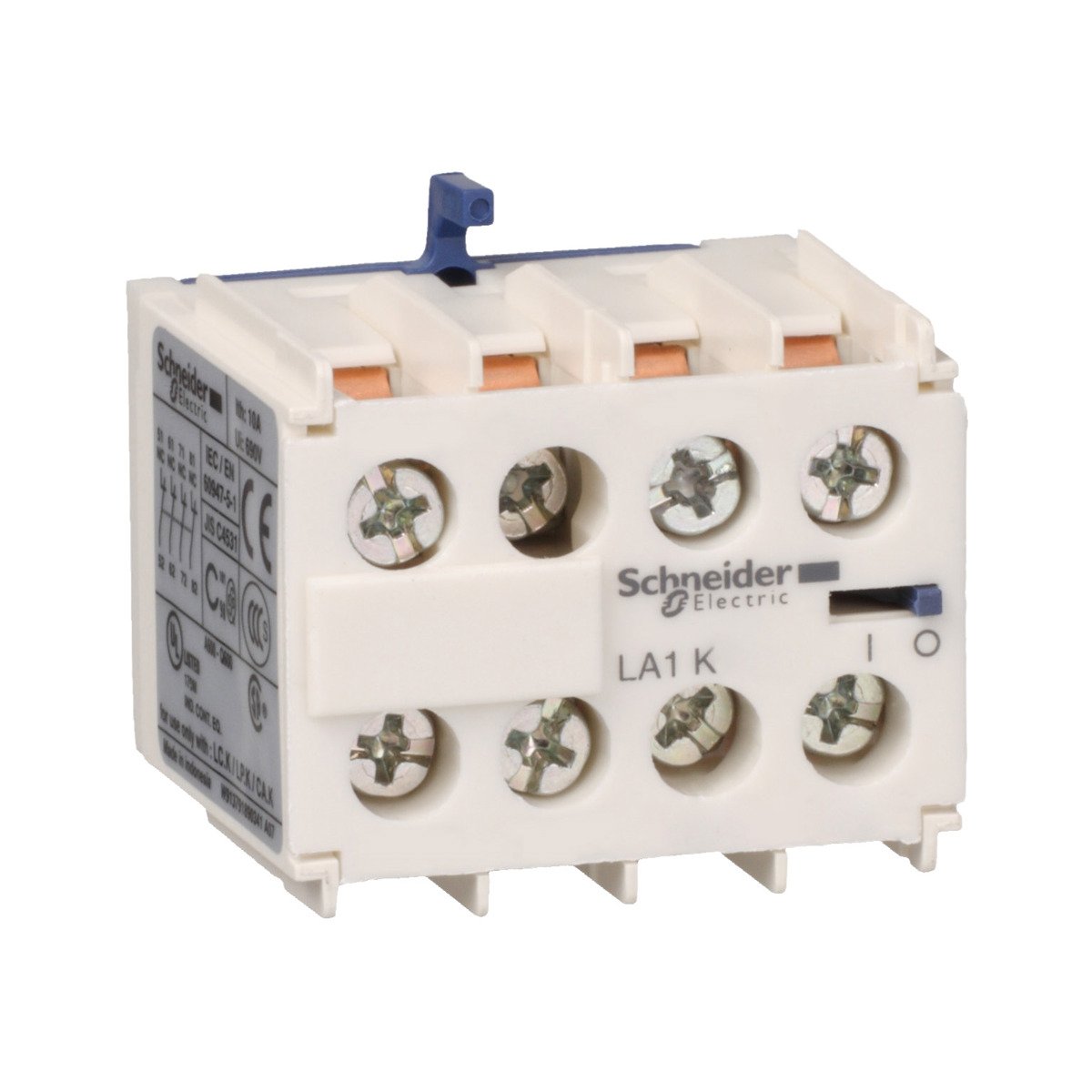

Schneider Electric LA1KN40 Auxiliary Contact Block 575 VAC 10 Amp 4NO

Product Description

The Schneider Electric LA1KN40 auxiliary contact block is designed for use with contactors LC.K, LP.K, and CA.K. It features four normally open (4NO) contacts rated at ten amps and can operate up to six hundred ninety volts alternating current.

• Provides reliable connection with screw clamp terminals.
• Front mounting option allows for simple installation.
• Multi-standard certified including IEC, UL, CSA, and CCC.

Product Highlights

Designed for efficient electrical control in industrial applications, the LA1KN40 is a part of the TeSys K range. It supports various applications such as motor control and automation. Its robust design ensures high durability and performance.

Product Information

Standard Information

• Catalog Number: LA1KN40
• Brand: Schneider Electric

Technical Specifications

• Depth: 35 mm
• Width: 38 mm
• Height: 30 mm
• Weight: 0.10 lb
• Voltage: 690 Volt
• Contact Rating: 10 A 50 AC
• Country of Origin: Indonesia
• Warranty Length: 18 months
