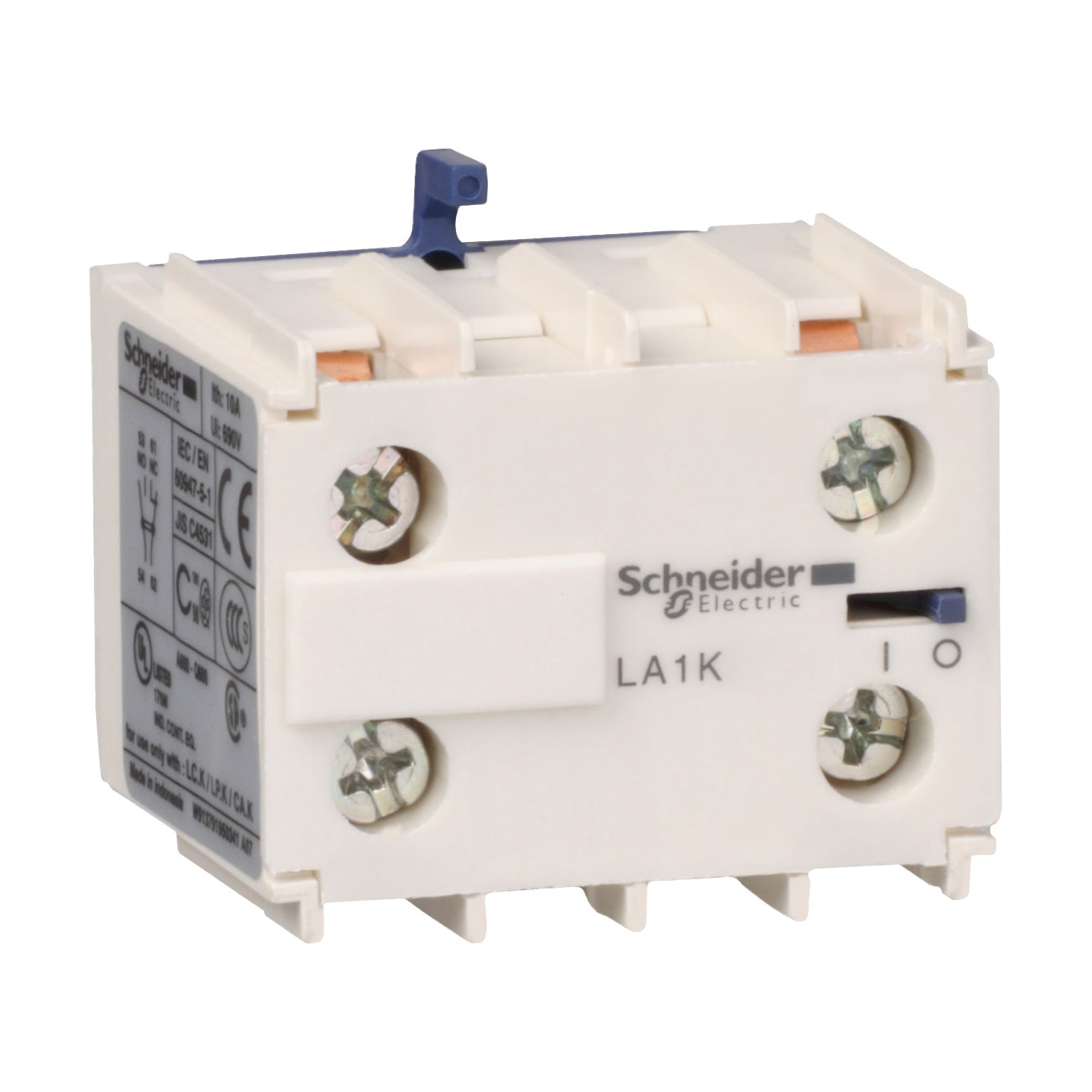

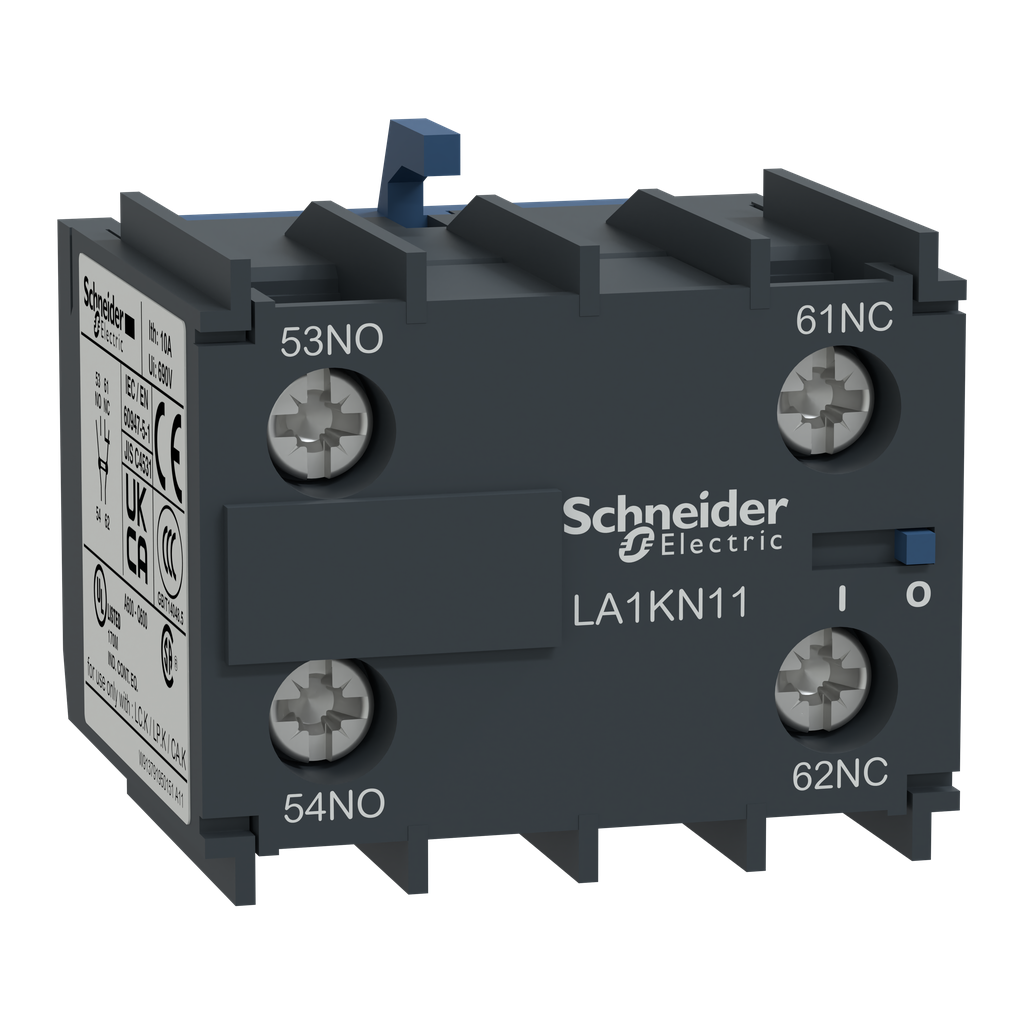

Schneider Electric LA1KN11 Square D 575 VAC 10 Amp 1NO 1NC Screw Clamp Terminal Auxiliary Contact Block

Product Description

The Schneider Electric LA1KN11 is an auxiliary contact block designed for TeSys K contactors. This block provides one normally open (1NO) and one normally closed (1NC) contact rated at up to ten amps and six hundred ninety volts alternating current. Connection is made using screw clamp terminals, ensuring a secure and reliable setup. It features a clip-on mounting design, making it easy to install on the front of the contactor.

• Rated for 10A and 690V AC
• Includes one NO and one NC contact
• Multi-standards certified with Green Premium compliance

Product Highlights

This product is suitable for various applications within the control and automation sector, highlighting its flexibility and adaptability in different environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: LA1KN11

Technical Specifications

• Type: Auxiliary contact block
• Voltage: 690 Volt
• Contact Configuration: 1NO + 1NC
• Weight: 0.10 lb
• Dimensions: 1.38 inches (Length) x 38 mm (Width) x 30 mm (Height)
• Warranty Length: 18 months
• Country of Origin: Indonesia
