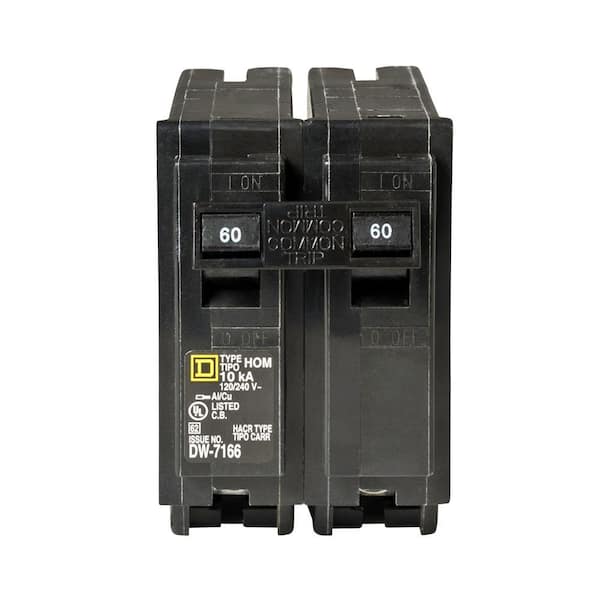

Schneider Electric HOM260 DP Miniature Circuit Breaker 60 Amp

Product Description

The SCHNEIDER ELECTRIC HOM260 DP miniature circuit breaker manages energy and processes, providing circuit protection against overloads and short-circuits. Designed for fast installation, it is compatible with Homeline electrical panels and CSEDs with 2 spaces. This 2-pole breaker is rated at 60A and 120/240 VAC, with a 10 kAIC breaking capacity.

• Protects against overloads
• Protects against short-circuits
• Compatible with Homeline electrical panel

Product Highlights

Provides overload and short circuit protection for residential and commercial applications. UL Listed.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: HOM260 DP
• Country of Origin: Mexico

Technical Specifications

• Brand: Schneider Electric
• Current Rating: 60 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Plug-in
• Number Of Poles: 2
• Voltage: 240 Volts
• Maximum Amperage (A): 60 A
• Interruption Type: Standard Trip
• Pack Size: 1
• Amperage: 60 Amp
• Applications: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
• Conductor Size: 8-2 AWG
• Current: 60 Amp
• Interrupt Rating: 10 kAIC
• Line Rated Current: 60 A
• Number of Spaces: 2
• Range: Homeline NULL
• Short Circuit Current: 10 kA
• Short Circuit Current Ratng: 10 kA
• Tc Connection: SCREW #8-2 AWG(AL/CU)
• Type: MINIATURE CIRCUIT BREAKER
• Wire Size: AWG 8...AWG 2 aluminium/copper)1
• Sub Brand: HOMELINE
• Depth: 2.98 Inch
• Height: 3.13 Inch
• Length: 2.98 Inch
• Width: 2 in
• Certifications: UL
