Schneider Electric HOM230GFIC Homeline 30A 2 Pole 120/240VAC

Product Description

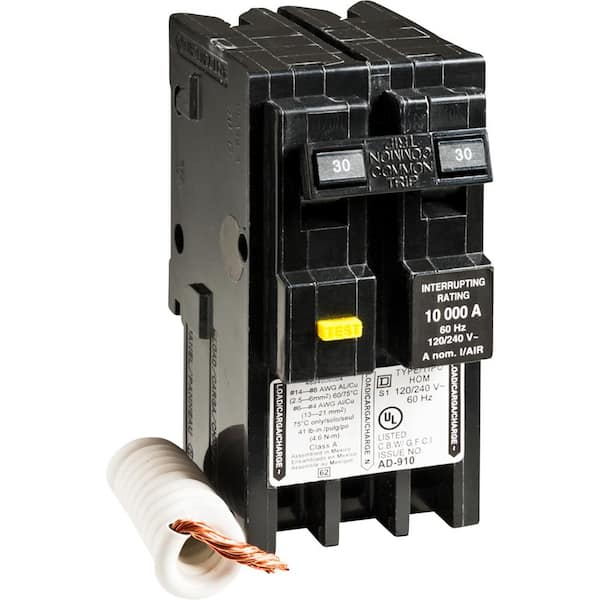

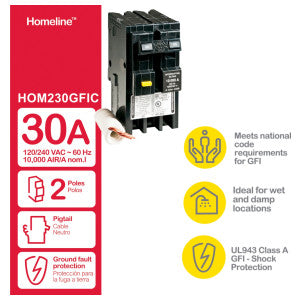

The SCHNEIDER ELECTRIC HOM230GFIC is a Homeline miniature circuit breaker engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, it provides standard circuit protection and is HACR rated. This 2 pole circuit breaker is rated 30A at 120/240 VAC with 10 kA breaking capacity.

• Homeline 30 Amp two-pole GFCI circuit breaker
• Plug-on design, easy to install
• Compatible with homeline load centers and CSED devices

Product Highlights

Provides overload and short circuit protection, combined with Class A ground fault protection. UL Listed.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: HOM230GFIC
• Country of Origin: Mexico

Technical Specifications

• Current Rating: 30 Amps
• Circuit Breaker Type: GFCI
• Mounting Type: Plug-In Mount
• Number of Poles: 2
• Smart Home Compatibility: Not Smart Home Compatible
• Voltage: 240 Volts
• Control Style: Breaker
• Material: Copper
• Model: HOM230GFIC
• Interrupt Rating: 10 kA
• Rated Voltage: 120/240V ac
• AWG Range: AWG 12...AWG 4
• Height: 3.13 in.
• Depth: 2.98 in.
• Width: 2 in.
• Maximum Amperage (A): 30 A
• Interruption Type: GFCI
• Pack Size: 1
• Brand: Schneider Electric
• Part Number #: HOM230GFIC
• UNSPSC: 39121603
