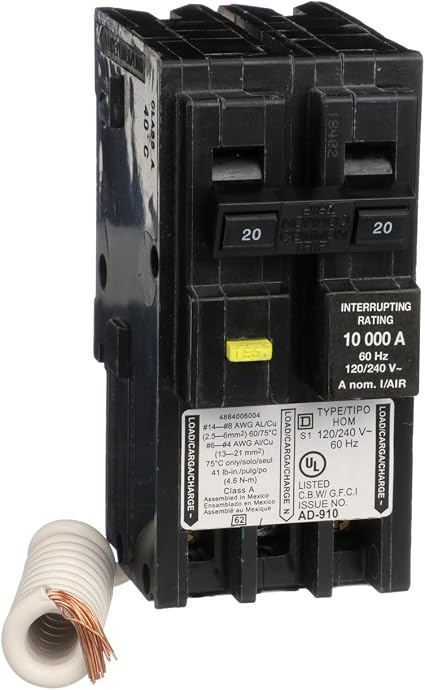

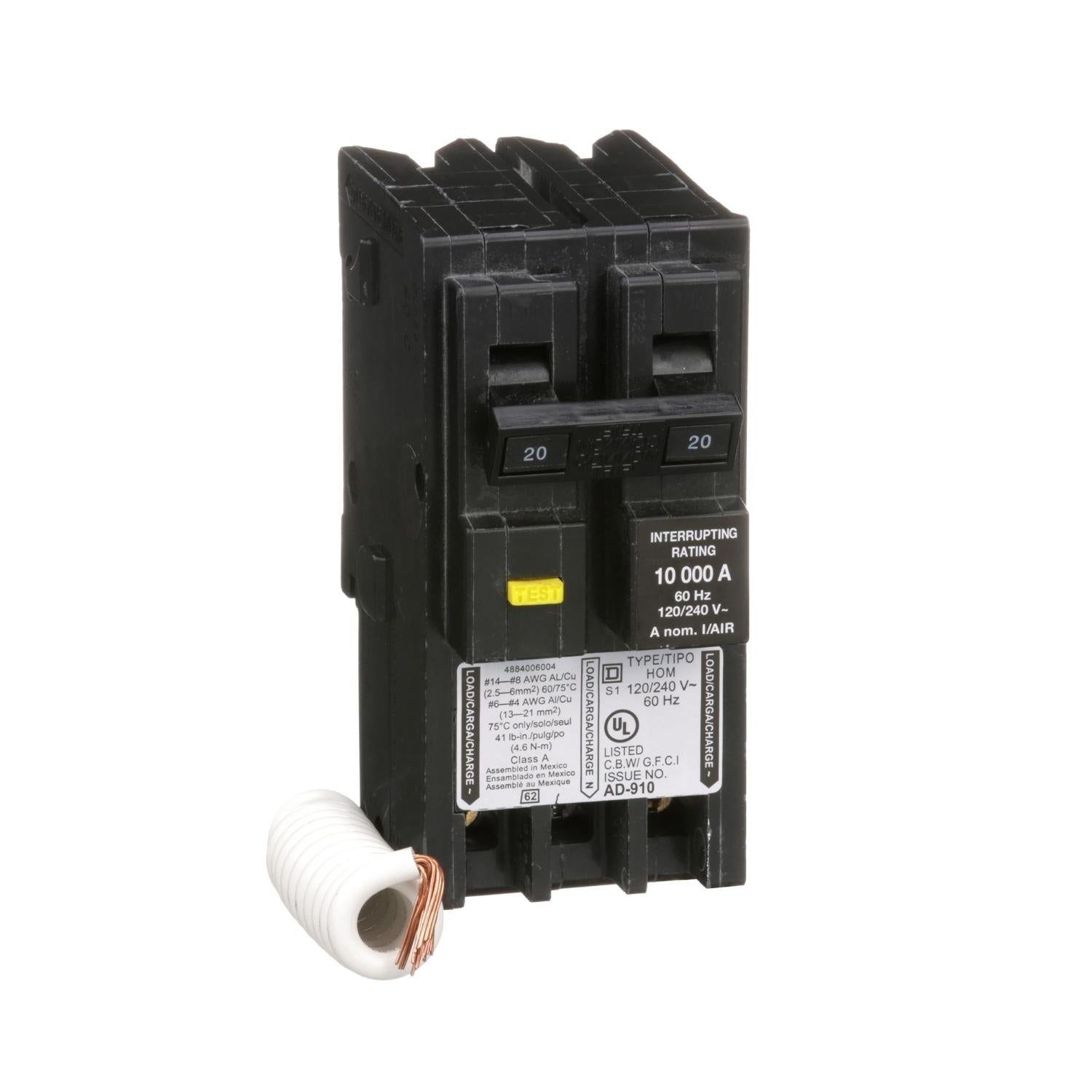

Schneider Electric HOM220GFIC Homeline GFCI Circuit Breaker 20 Amp (2-Pole)

Product Description

Schneider Electric HOM220GFIC is a Square D Homeline 20 A two-pole GFCI circuit breaker for 120/240 V AC branch circuits. It provides Class A ground-fault protection (trips at 6 mA or more) and a 10 kA interrupting capacity, uses a plug-in/pigtail neutral design for Homeline load centers, and accepts two conductors on the clamp terminal with a wire range of 14 AWG to 8 AWG.

• 20 A, 120/240 V AC, two-pole GFCI (Class A, 6 mA trip) with 10 kA interrupting rating
• Plug-in mount compatible with plug-on or pigtail neutral; accepts two wires on clamp terminal (14 AWG to 8 AWG copper or aluminum)
• UL-listed and HACR-rated protection suitable for dryers, ranges, furnaces, and air conditioners

Product Highlights

Two-pole 20 A Homeline GFCI breaker with plug-in neutral, Class A ground-fault protection, and 10 kA interrupting capacity

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: HOM220GFIC

Technical Specifications

• Brand: Square D by Schneider Electric
• Model: HOM220GFIC
• MPN: HOM220GFIC
• Series: Homeline
• Current Rating: 20 A
• Voltage: 120/240 V AC
• Number of Poles: 2
• Circuit Breaker Type: GFCI (Class A)
• GFCI Trip Threshold: 6 mA
• Breaking Capacity / Interrupt Rating: 10 kA
• Mounting Type: Plug-in mount (plug-on neutral / pigtail neutral compatible)
• Wire Range / Terminal Capacity: Accepts 2 wires on clamp terminal; 14 AWG to 8 AWG copper or aluminum
• Certifications: UL-listed, HACR-rated
• Trip Type: Thermal magnetic
• Frequency Rating: 50/60 Hz
• Actuator Type: Paddle
• Terminal Type: Screw clamp
• Dimensions (HxWxD): 3.13 in x 2 in x 2.98 in
• Item Weight: 1.1 Pounds
• Intended Applications: Dryers, ranges, furnaces, air conditioners
