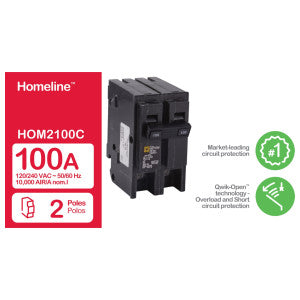

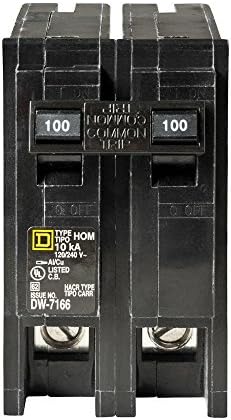

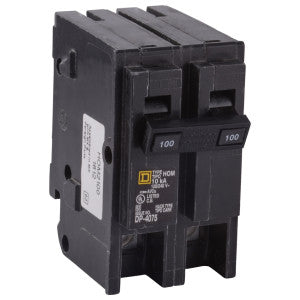

Schneider Electric Hom2100c Homeline 100 Amp Circuit Breaker

Product Description

The SCHNEIDER ELECTRIC HOM2100C Homeline 100 Amp Circuit Breaker is designed for fast installation and superior circuit protection. This 2-pole breaker protects against overloads and short-circuits in residential and commercial applications. It is compatible with Homeline load centers and CSEDs with 2 spaces, and provides standard circuit protection. Rated 100A at 120/240 VAC.

• Protects against overloads and short-circuits
• Compatible with Homeline electrical panels and CSEDs with 2 spaces
• Unique trip window indicates a tripped circuit

Product Highlights

The HOM2100C circuit breaker is designed for use in Homeline load centers. It provides reliable circuit protection and is suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: HOM2100C
• Country of Origin: Mexico

Technical Specifications

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Model / MPN: HOM2100C
• Product Type: CIRCUIT_BREAKER
• Current Rating: 100 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Panel Mount
• Number Of Poles: 2
• Maximum Amperage (A): 100 A
• Interruption Type: Standard Trip
• Pack Size: 1
• Amperage: 100 Amp
• Poles: 2 Pole
• Phase: Single Phase
• Voltage: 240VAC
• Loadcenter use: HOM Loadcenter
• Trip Type: Common Trip, Thermal Magnetic
• Voltage AC: 120/240 VAC
• Frequency: 50/60 HZ (Underwriters Lab/CSA)
• Voltage DC: 48 VDC
• Interrupting Rating: 10 Kiloampere At 120/240 VAC (Underwriters Lab/CSA), 5 Kiloampere At 48 VDC
• Wire Size: 14 To 8 Awg (Aluminum/Copper), (2) 14 To 10 Awg (Copper)
• Mounting: Plug On Mounting
• Approval: Underwriters Lab
• Application: Used On Home-Line Load Centers, HOM Panel board, Oem Interior/Speed-D[R] Switchboard Distribution Panel
• Model: HOM Line
• Interrupt Rating: 10 kA
• Rated Voltage: 120/240V ac
• Torque: 4.8-4.8 N.m
• Height: 3.13 in.
• Depth: 2.98 in.
• Width: 2 in.
