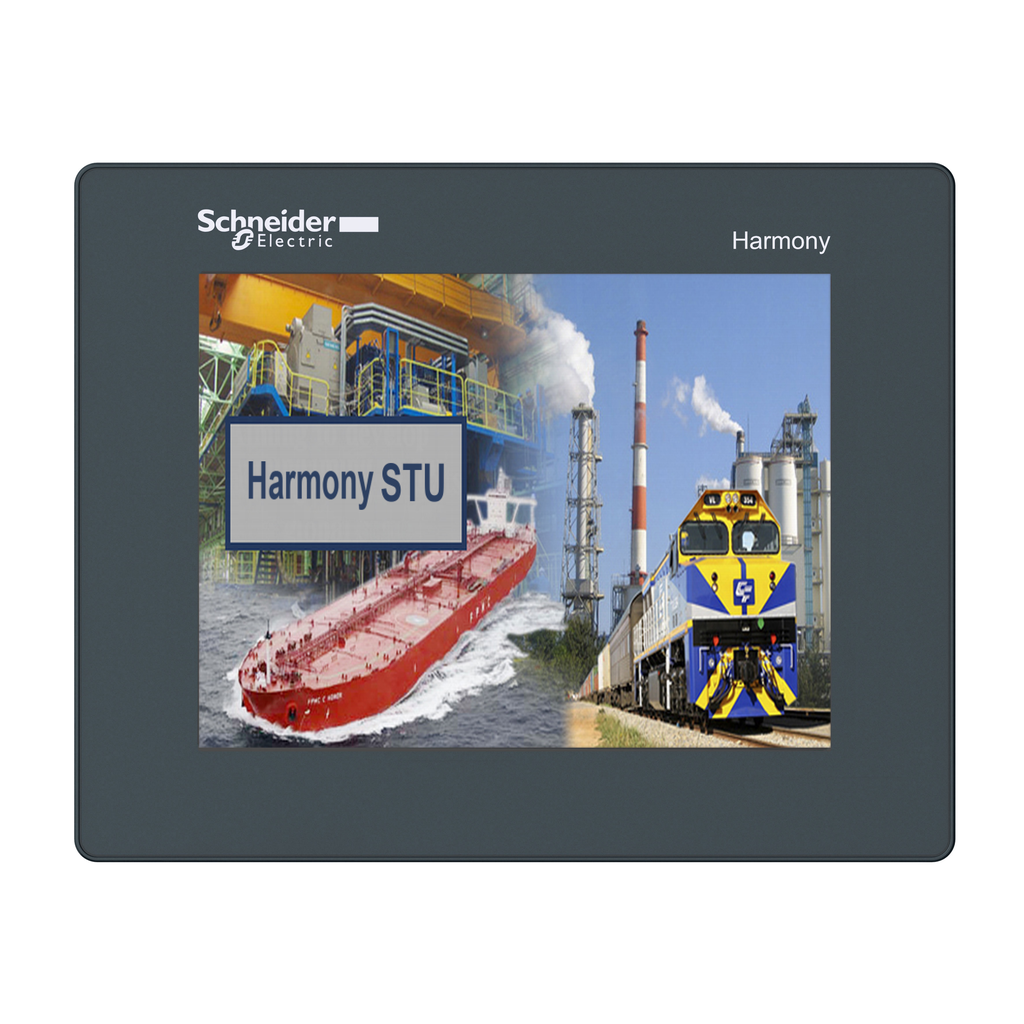

Schneider Electric HMISTU855 Square D 24 VDC Touch Screen 320 x 240 Pixel

Product Description

Schneider Electric HMISTU855 is a compact touchscreen operator interface. This model operates on 24 volts direct current and features a five point seven inch color TFT LCD with a resolution of three hundred twenty by two hundred forty pixels. The device includes one host USB port, one mini-B USB port, one RS232C RS485 port, and one Ethernet TCP/IP port, making it suitable for various industrial applications.

• Screen resolution of 320 x 240 pixels
• Compact design with a fixing hole diameter of 22 millimeters
• Ideal for automation systems in industries like food and beverage

Product Highlights

This touchscreen is designed for industrial use, allowing optimized data communication with automation systems. It fits smoothly into existing setups without requiring panel cut-outs.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Name: Square D HMISTU855

Technical Specifications

• Power Supply: 6.8W; External source
• Screen Type: Touch panel screen
• Width: 163 mm
• Depth: 56.5 mm
• Height: 129.15 mm
• Certifications: C-tick, CULus, Marine, UKCA
• Operating Temperature: 0 to 50 degrees Celsius
• Storage Temperature: -20 to 60 degrees Celsius
