Schneider Electric HJA36020 Circuit Breaker PowerPacT H 20A 3 Pole 600VAC

Product Description

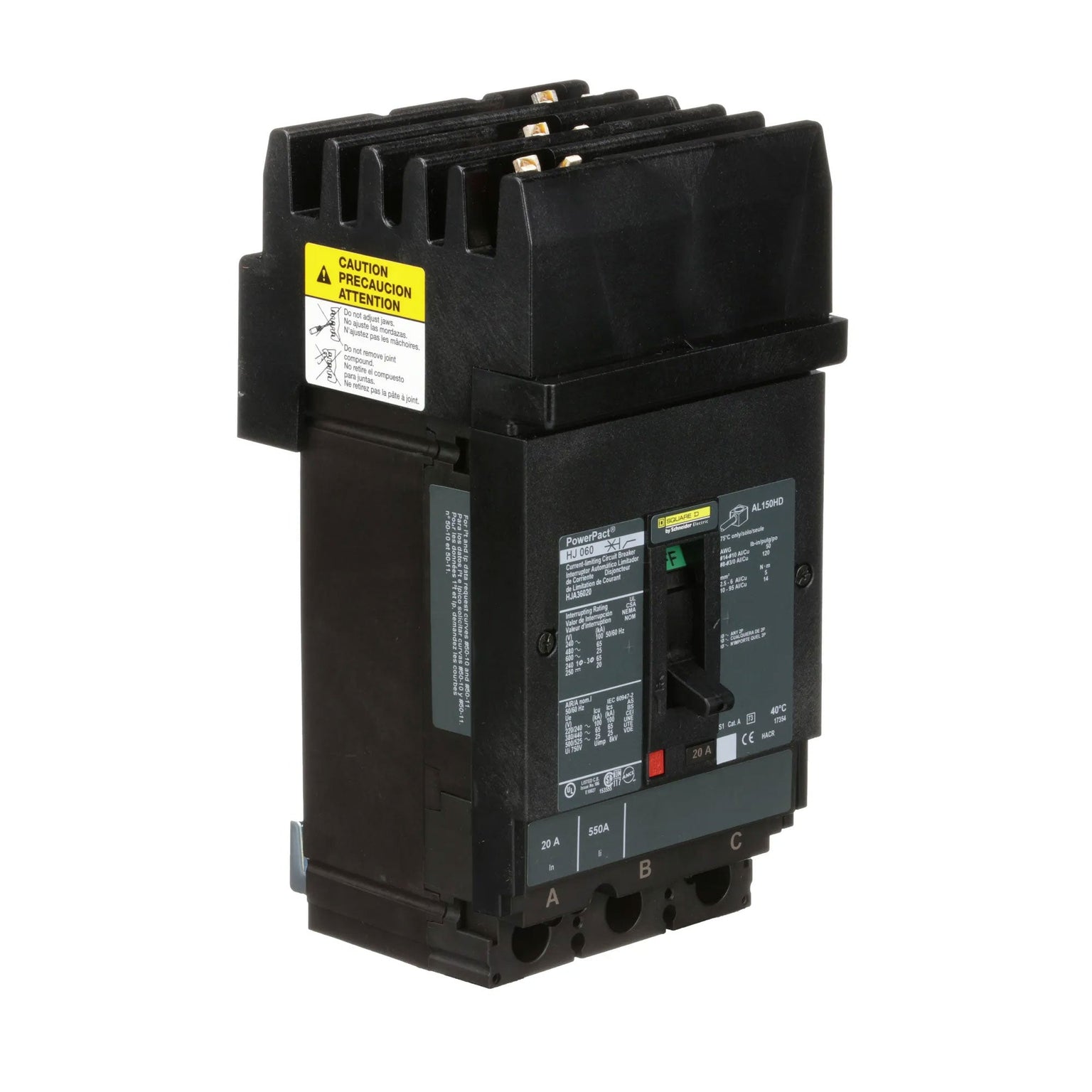

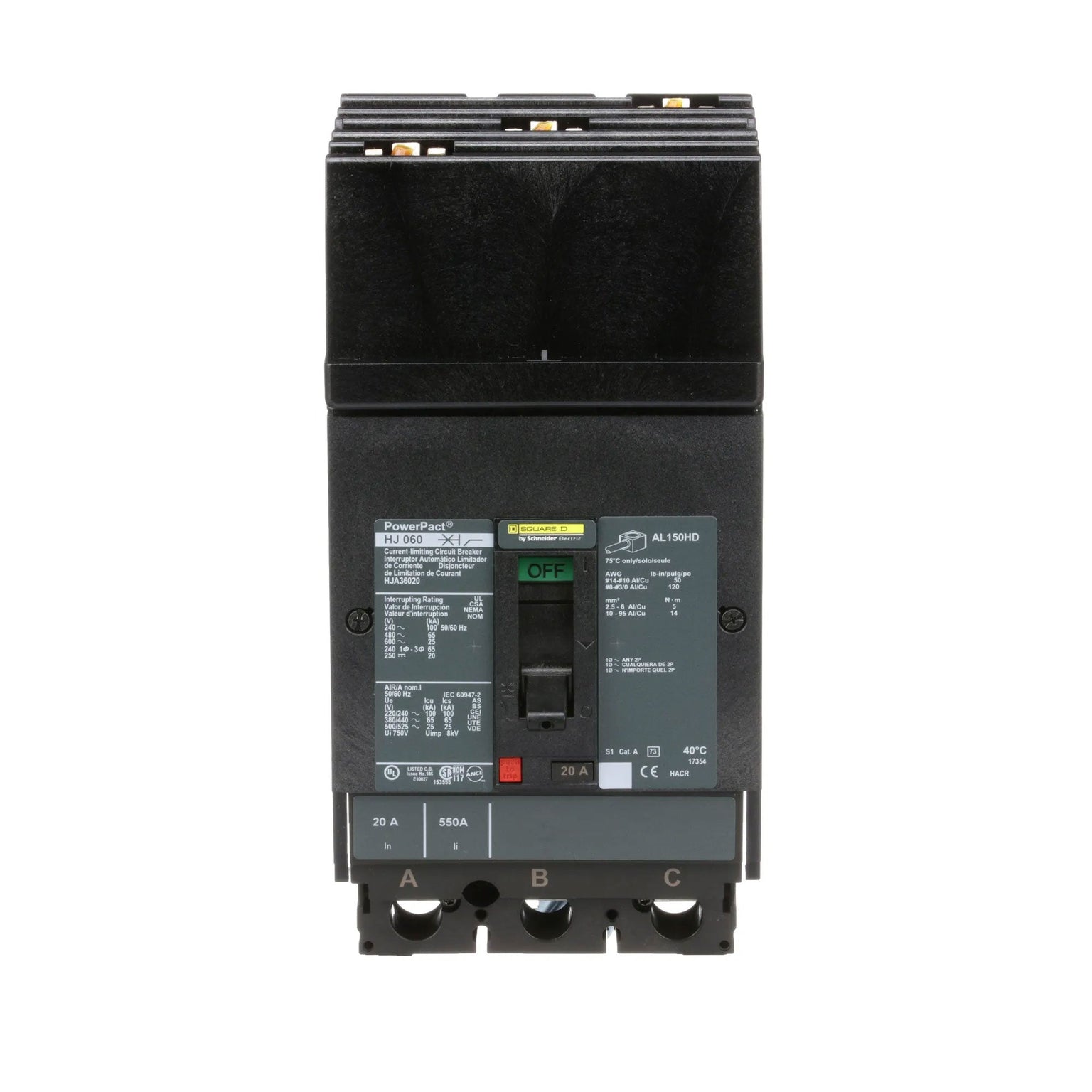

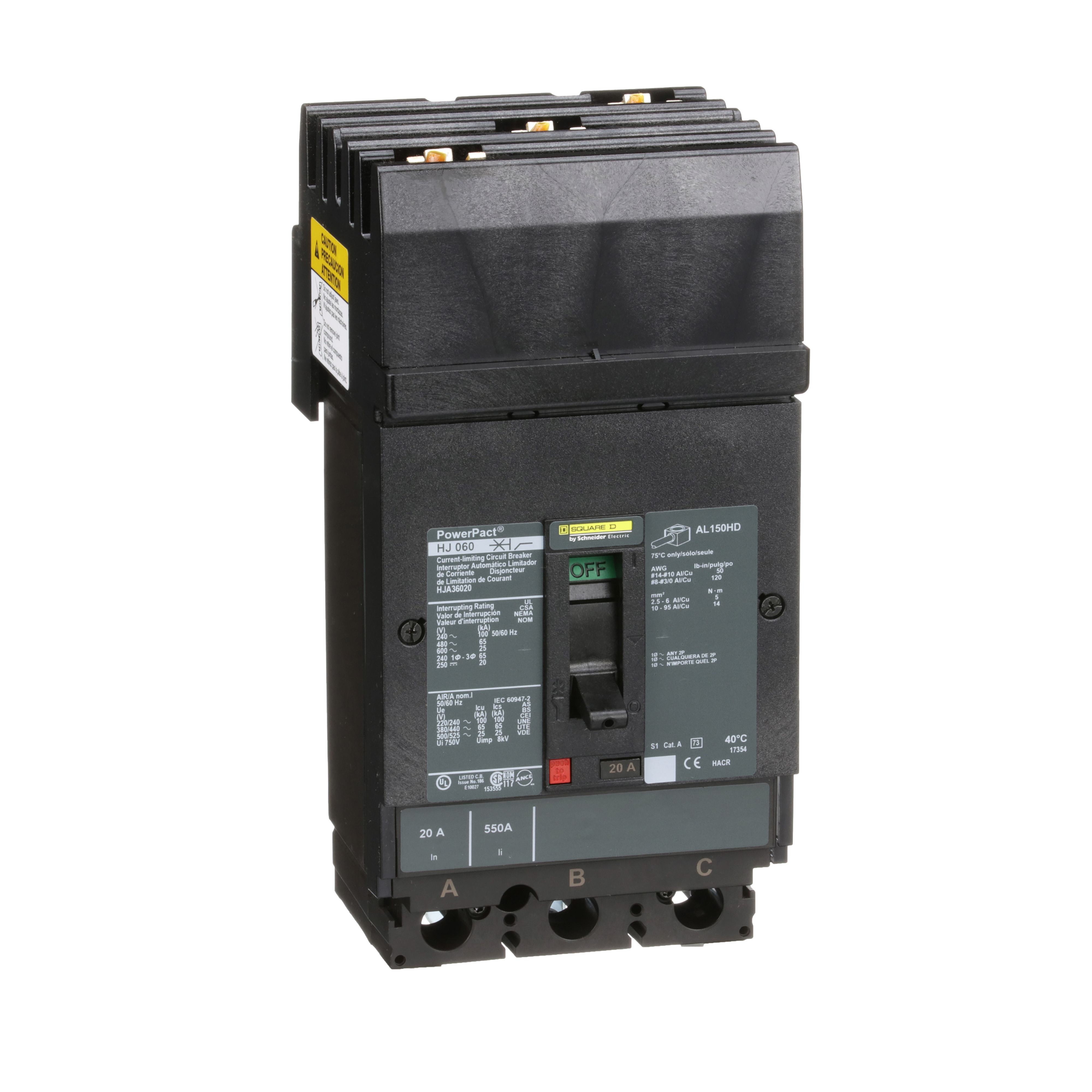

The SCHNEIDER ELECTRIC HJA36020 is a PowerPacT H molded case circuit breaker. This 3-pole, 20A circuit breaker is rated for 600VAC and provides overload and short circuit protection. It features an I-Line connection on the line end and lugs on the load end, with ABC phase connection.

• Provides overload and short circuit protection
• I-Line connection (On end) - lugs (Off end) ABC
• Suitable for reverse fed applications

Product Highlights

The SCHNEIDER ELECTRIC HJA36020 circuit breaker is ideal for I-Line panelboard applications requiring reliable circuit protection.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: HJA36020
• Country of Origin: China

Technical Specifications

• Brand: Schneider Electric
• Manufacturer: SCHNEIDER ELECTRIC
• Model / MPN: HJA36020
• Product Type: CIRCUIT_BREAKER
• Alternate Catalog Number: HJA36020
• Application: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: HJA36020
• Connection: I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC
• Connection Type: I-Line® Lug
• Country of Origin: MX
• EU RoHS Indicator: Y
• Frame: H
• Frequency Rating: 50/60 Hz
• Number Of Poles: 3
• Operating Temperature: -13 to 158F (-25 to 70C) °C
• Phase: 3 pH
• Standard: UL LISTED - CSA CERTIFIED - IEC RATED - CCC
• Sub Brand: POWERPACT
• Type: Type HJA
• UNSPSC: 39121601
• Amperage Rating: 20 A
• Interrupt Rating: 25/20 kA
• Trip Type: Thermal Magnetic
• Voltage Rating: 600 VAC/250 VDC VAC//VDC
• Part Number: HJA36020
• Family: Powerpact
• Amp: 20
• Volt: 600
• Category: Molded Case / 3-Pole
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V
• Frame Type: H-Frame
• Trip Unit Technology: Thermal-magnetic
• Line Rated Current: 20 A
• Mounting Mode: I-Line bracket
• Breaking Capacity Code: J
• Electrical Connection: I-Line connection line / Lugs load
• Magnetic Hold Current: 350 A
• Continuous Current Rating: 80%
• Control Type: Toggle
• AWG Gauge: AWG 14...AWG 3/0 aluminium/copper terminal
• Condition: New
• Current Rating: 20 Amps
• Circuit Breaker Type: Standard
• Panel Mount: Panel Mount
• Material: Copper
• Voltage: 480 Volts
• Item Package Quantity: 1
• Included Components: HJA36020
• Batteries Required?: No
