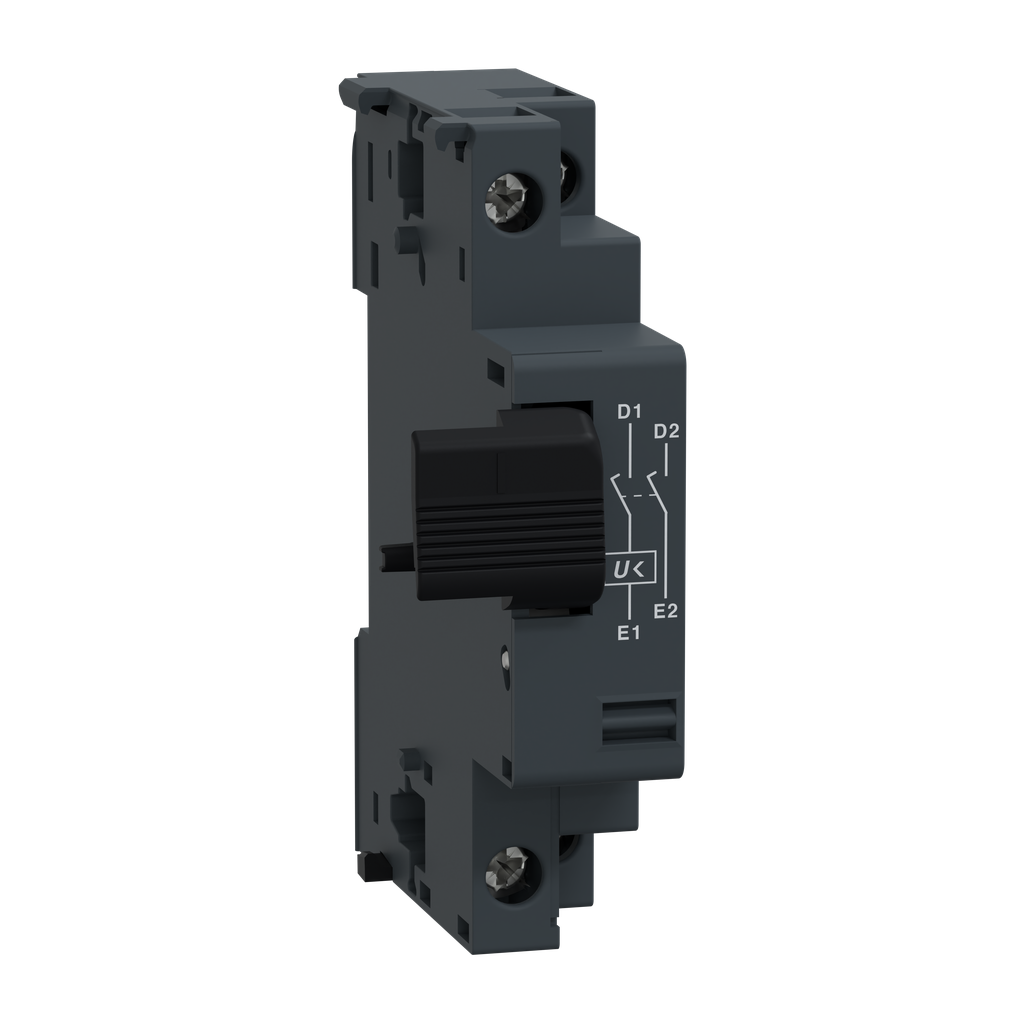

Schneider Electric GVAX116 Manual Starter Undervoltage Trip 110 to 115 VAC

Product Description

The Schneider Electric GVAX116 is a manual starter undervoltage trip designed to operate within a voltage range of 110 to 115 VAC. This device is suitable for use with motor circuit breakers, particularly the GV2ME models. When the control voltage drops below a certain threshold, the GVAX116 will trip the circuit, ensuring safety in electrical systems.

• Voltage range: 110 to 115 VAC
• Tripping mechanism activates below 0.35 Uc
• Multi-standard certified

Product Highlights

This product is easy to install on the right-hand side of compatible circuit breakers. The connection is made via screw clamp terminals, simplifying the setup process.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GVAX116
• Weight: 0.23 lb
• Width: 18 mm
• Height: 89 mm
• Depth: 66 mm
• Voltage Requirement: 0.7...0.35 UN
• Applications: Compatible with GV2ME
• Country of Origin: Czech Republic
• Warranty: 18 months
