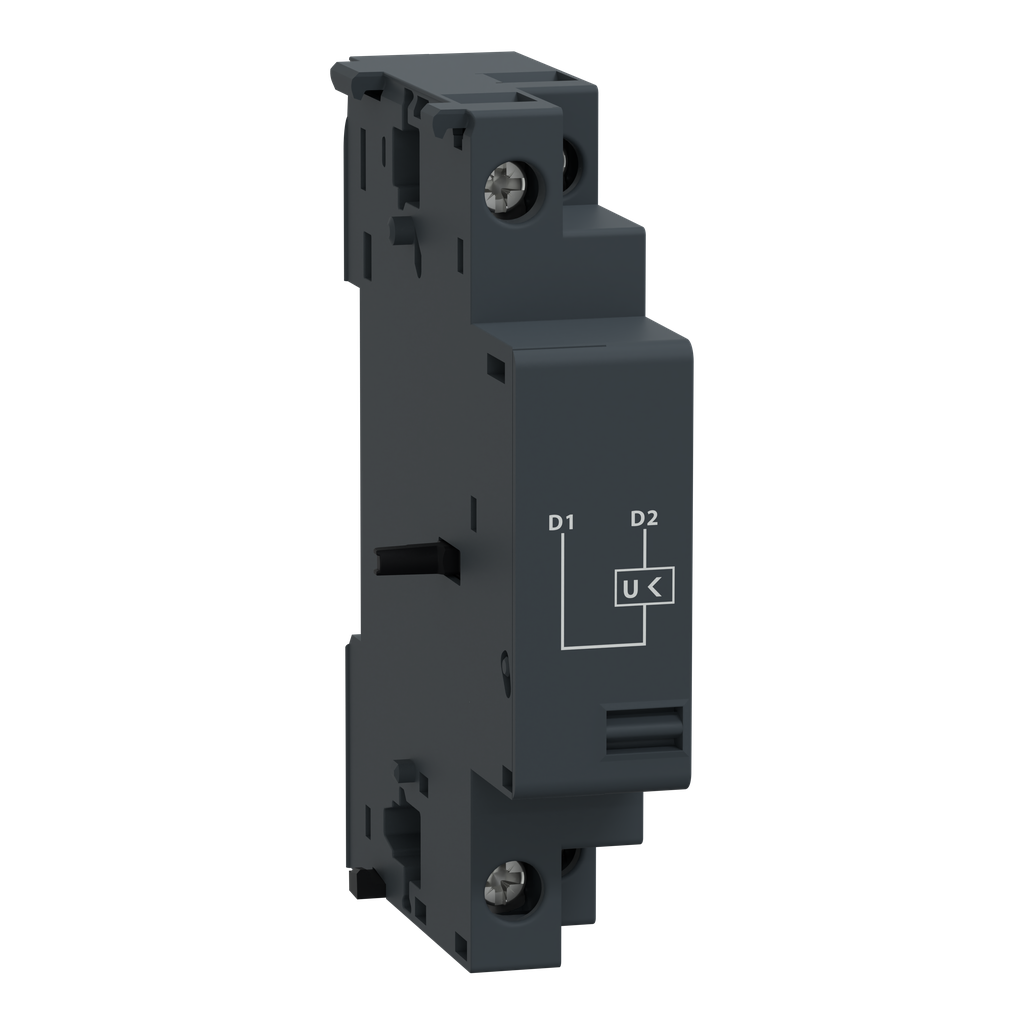

Schneider Electric GVAU226 Manual Starter/Motor Circuit Breaker Shunt Trip Unit 220 to 240 VAC

Product Description

The Schneider Electric GVAU226 is a manual starter and motor circuit breaker shunt trip unit designed for use with motor circuit breakers GV2 and GV3. This product operates at a voltage range of 220 to 240 volts AC and is rated for sixty hertz. The unit trips the circuit breaker when the control voltage drops below thirty-five percent of its maximum voltage rating. It can be installed on the right side of the circuit breaker, utilizing screw clamp terminals for connection.

• Multi-standard certification includes IEC, UL, CSA, CCC, and EAC.
• Designed for automatic reset functionality.
• Green Premium compliant, meeting RoHS and REACh standards.

Product Highlights

This undervoltage release unit is built for reliable performance in various electrical control applications where motor protection is essential.

Product Information

Standard Information

• Catalog Number: GVAU226
• Brand: Schneider Electric
• Manufacturer: Square-D

Technical Specifications

• Type: Undervoltage Trip
• Voltage: 220 to 240 Volts AC at 60 Hertz
• Weight: 0.23 lb
• Dimensions: 18 mm width, 89 mm height, 66 mm depth
• Warranty: 18 months
• Country of Origin: Czech Republic
• Operating Temperature: -5°C to 55°C
• GTIN: 03389110346015
