Schneider Electric GVAN20 Square D GVAN20 2NO 690 VAC 240 VDC 6 Amp Manual Starter Auxiliary Contact

Product Description

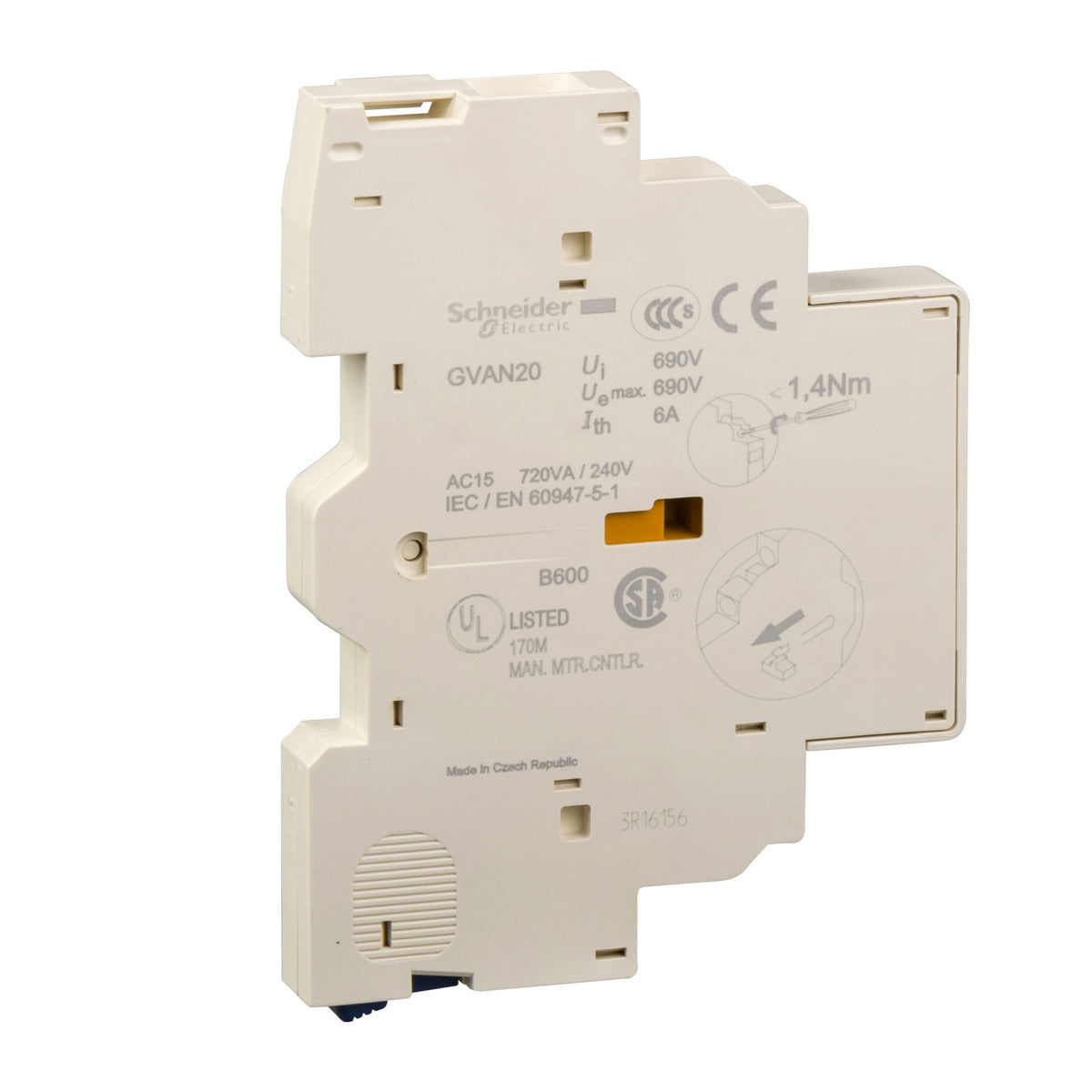

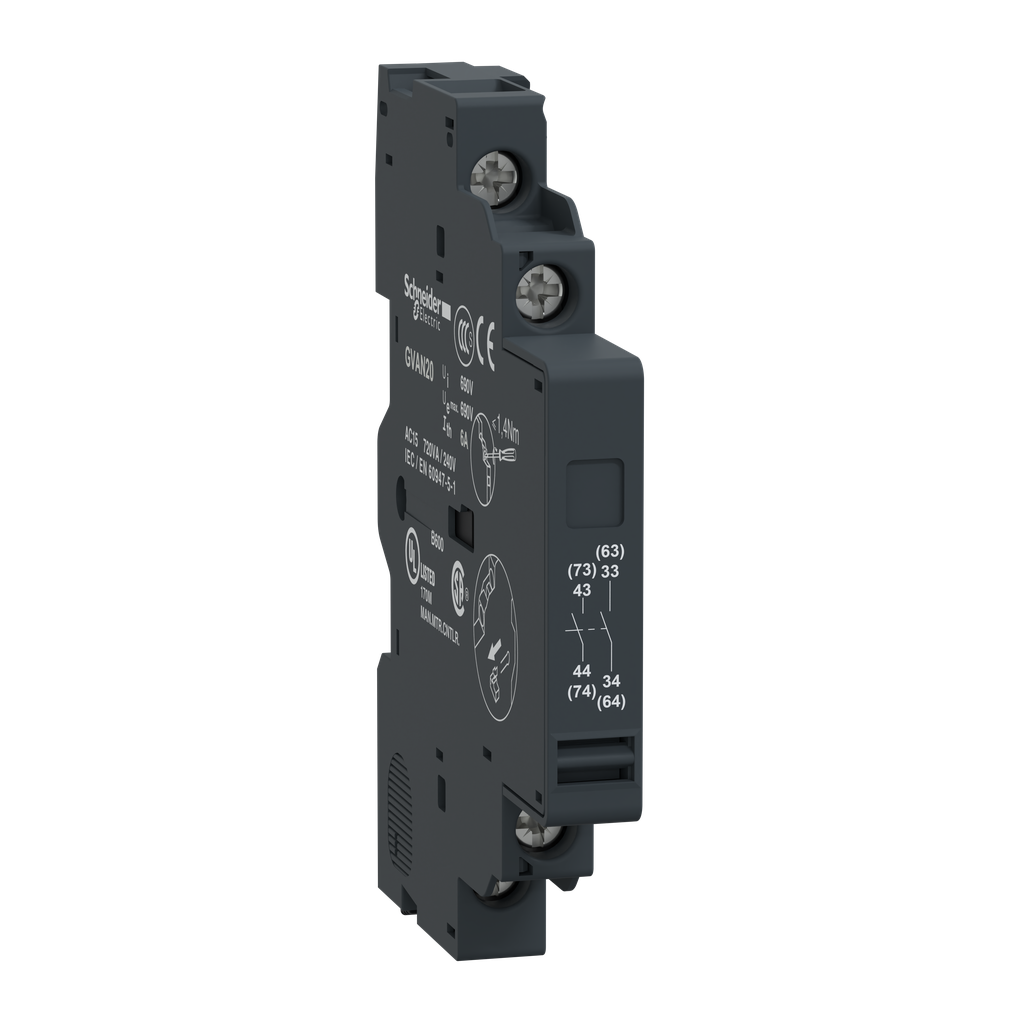

The Schneider Electric GVAN20 is a reliable auxiliary contact block designed for use with motor circuit breakers GV2 and GV3. This product features two normally open (2NO) instantaneous auxiliary contacts. It is rated for a maximum operation of six amperes at six hundred ninety volts AC and six amperes at two hundred forty volts DC. The installation is straightforward, allowing for the block to be mounted on the left-hand side of the circuit breaker, with the capability to mount two blocks. This contact uses screw clamp terminals for connections, ensuring secure and efficient wiring.

• Max voltage: 690V AC and 240V DC
• Mounts on left side of circuit breaker
• Multi-standard certified, including IEC, UL, and CSA

Product Highlights

This product is compliant with Green Premium standards, making it an eco-friendly choice for your installation needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GVAN20
• Voltage: 240 Volt
• Amperage: 6 Amp
• Width: 0.37 inches
• Height: 3.50 inches
• Depth: 2.60 inches
• Weight: 0.11 lb
• Country of Origin: Czech Republic
