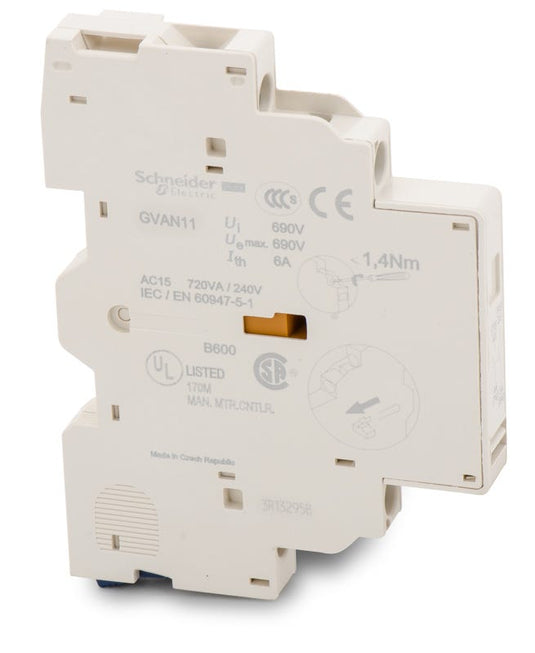

Schneider Electric GVAN11 Auxiliary Contact Block 1 NO + 1 NC

Product Description

The Schneider Electric GVAN11 is an auxiliary contact block that features a contact configuration of one normally open and one normally closed. This product is compatible with models GV2ME, GV2RT, GV2L, GV3P, GV3L, GV2LE, and GV2P. It is designed for secure installation with screw clamp terminals and is typically mounted on the left side.

• Contact configuration: 1 NO + 1 NC
• Compatible with GV2ME, GV2RT, GV2L, GV3P, GV3L, GV2LE, GV2P
• Includes screw clamp terminals for reliable connections

Product Highlights

This auxiliary contact block is essential for expanding the control features of compatible Schneider Electric circuit breakers.

Product Information

Standard Information

• Product Type: Auxiliary contact block
• Brand: Schneider Electric

Technical Specifications

• Mounting Location: Left side
• Rated Insulation Voltage: 600 V
• Rated Operational Voltage: 48...690 V AC, 24...240 V DC
• Mechanical Durability: 100000 cycles
• Minimum Switching Current: 5 mA
• Width: 9.3 mm
• Height: 89 mm
• Depth: 66 mm
• Net Weight: 0.05 kg
