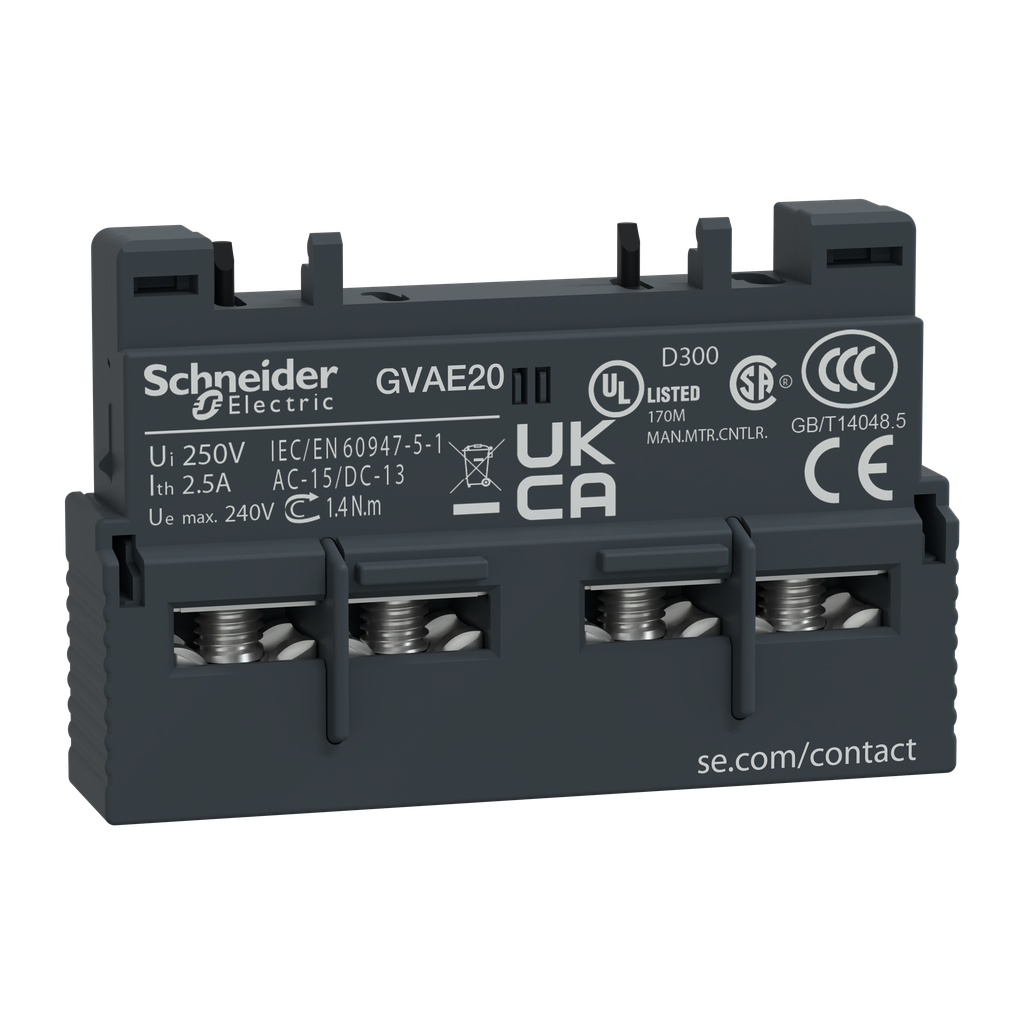

Schneider Electric GVAE20 Auxiliary Contact Block 2NO 240 VAC 60 VDC 2.5 Amp

Product Description

Schneider Electric GVAE20 is an auxiliary contact block designed for TeSys motor circuit breakers GV2 and GV3. It features two normally open (2NO) instantaneous auxiliary contacts rated for operation up to 2 Amperes at 240 Volts AC and 1 Ampere at 60 Volts DC. Installation occurs on the front side of the circuit breaker, with connections made via screw clamp terminals. The product is sold in lots of ten units and carries multiple certifications including IEC, UL, CSA, CCC, and EAC, ensuring compliance with various standards.

• Designed for motor circuit breakers GV2 and GV3
• Operates effectively up to 240V AC and 60V DC
• Connection achieved via secure screw clamp terminals

Product Highlights

This product supports various applications and is recognized for its Green Premium compliance (RoHS/REACh), making it suitable for environmentally conscious projects.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GVAE20
• Weight: 0.04 lb
• Depth: 29 mm
• Width: 45 mm
• Height: 11 mm
• Voltage: 240 Volt
• Amperage: 2.5 Amp
• Country of Origin: Czech Republic
• Warranty Length: 18 months
