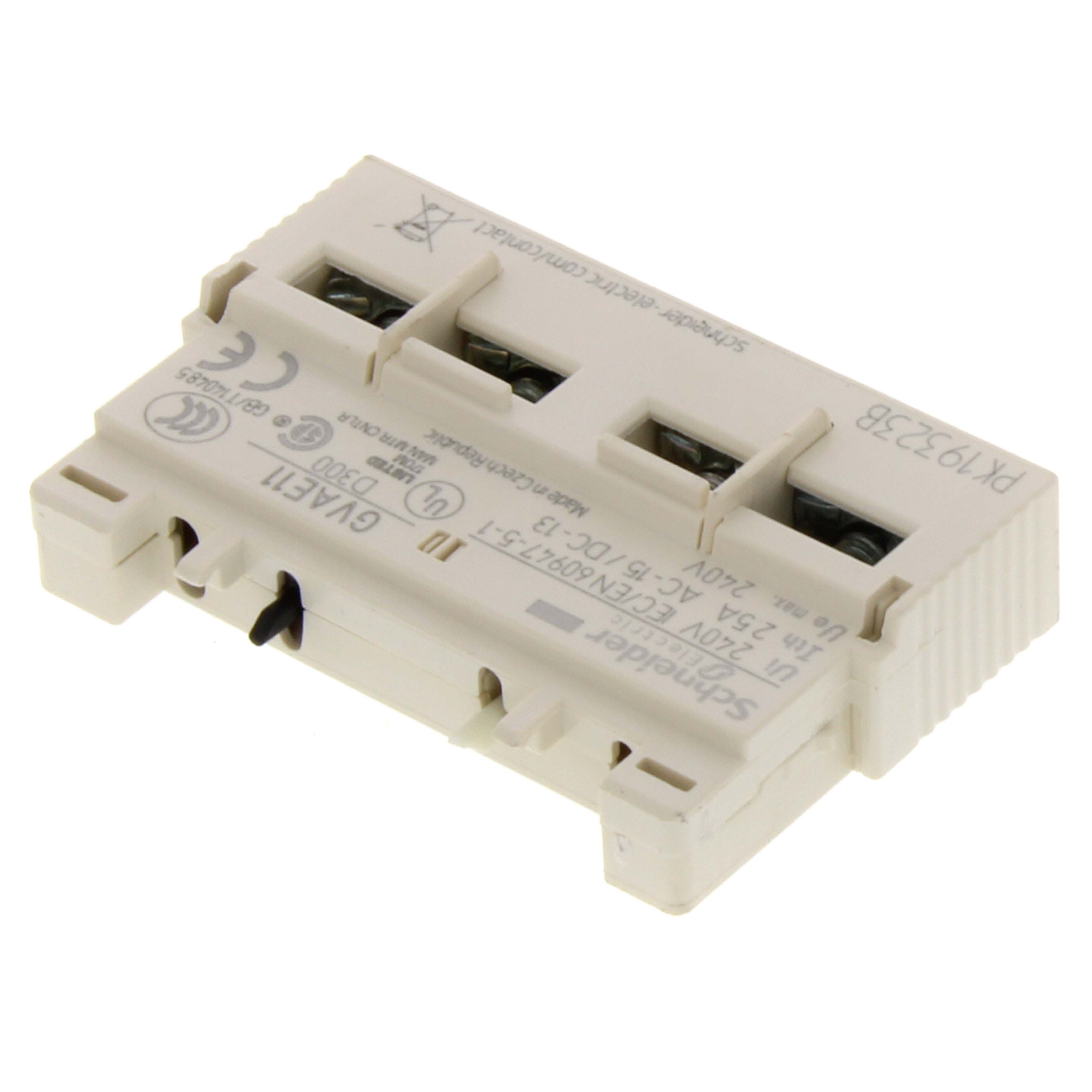

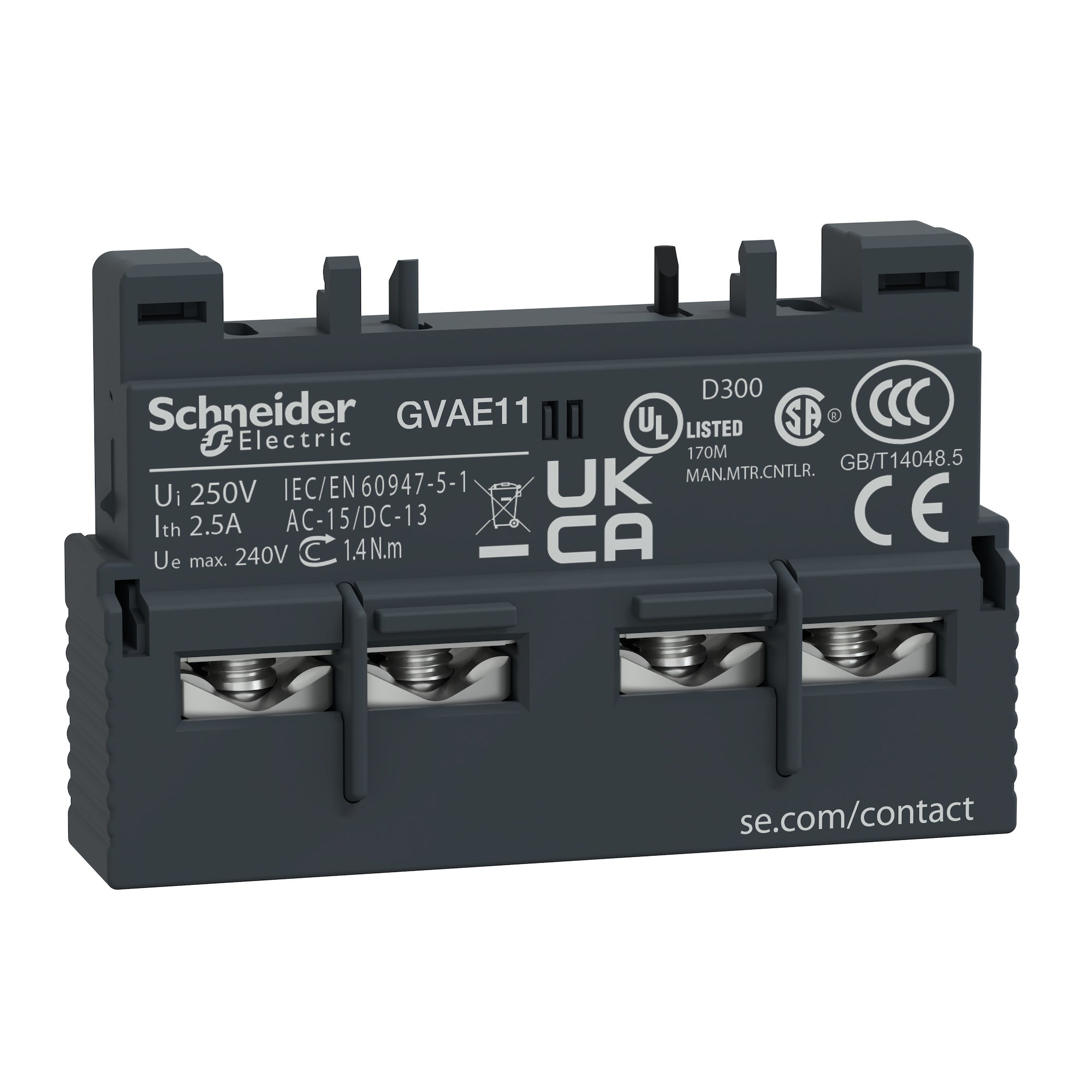

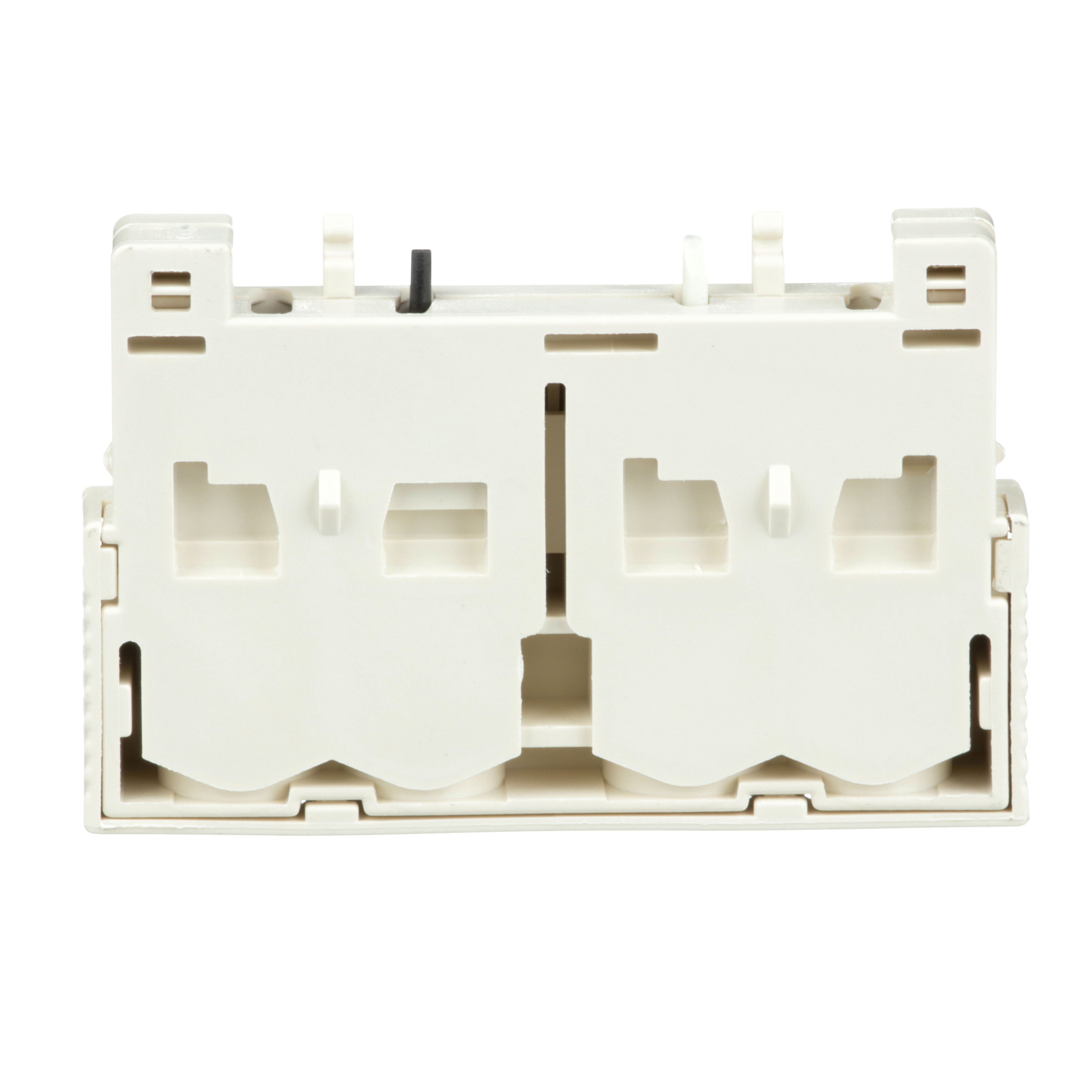

Schneider Electric GVAE11 TeSys Deca Manual Starter and Protector, Auxiliary Contact Block, 1 NO and 1 NC, Top Mount

Product Description

The Schneider Electric GVAE11 is a TeSys Deca manual starter and protector that features an auxiliary contact block design. This product includes one normally open and one normally closed auxiliary contact. It is designed to work with motor circuit breakers GV2 and GV3.

• Meets multi-standard certifications including IEC, UL, and CSA.
• Rated for operation up to 2A at 240V AC and 1A at 60V DC.
• Connection through screw clamp terminals for secure attachment.

Product Highlights

This device offers reliable performance in motor control applications, ensuring quick response in various operational environments.

Product Information

Standard Information

• Catalog Number: GVAE11
• Manufacturer: Schneider Electric

Technical Specifications

• Product Type: Auxiliary contact block
• Voltage Rating: 24...240 V AC; 24...60 V DC
• Amperage Rating: 2.5 A
• Operating Cycles: 100000 cycles
• Connection Type: Screw clamp terminals
• Warranty: 18 months
• Country of Origin: Czech Republic
• Environmental Conditions: Normal environment
