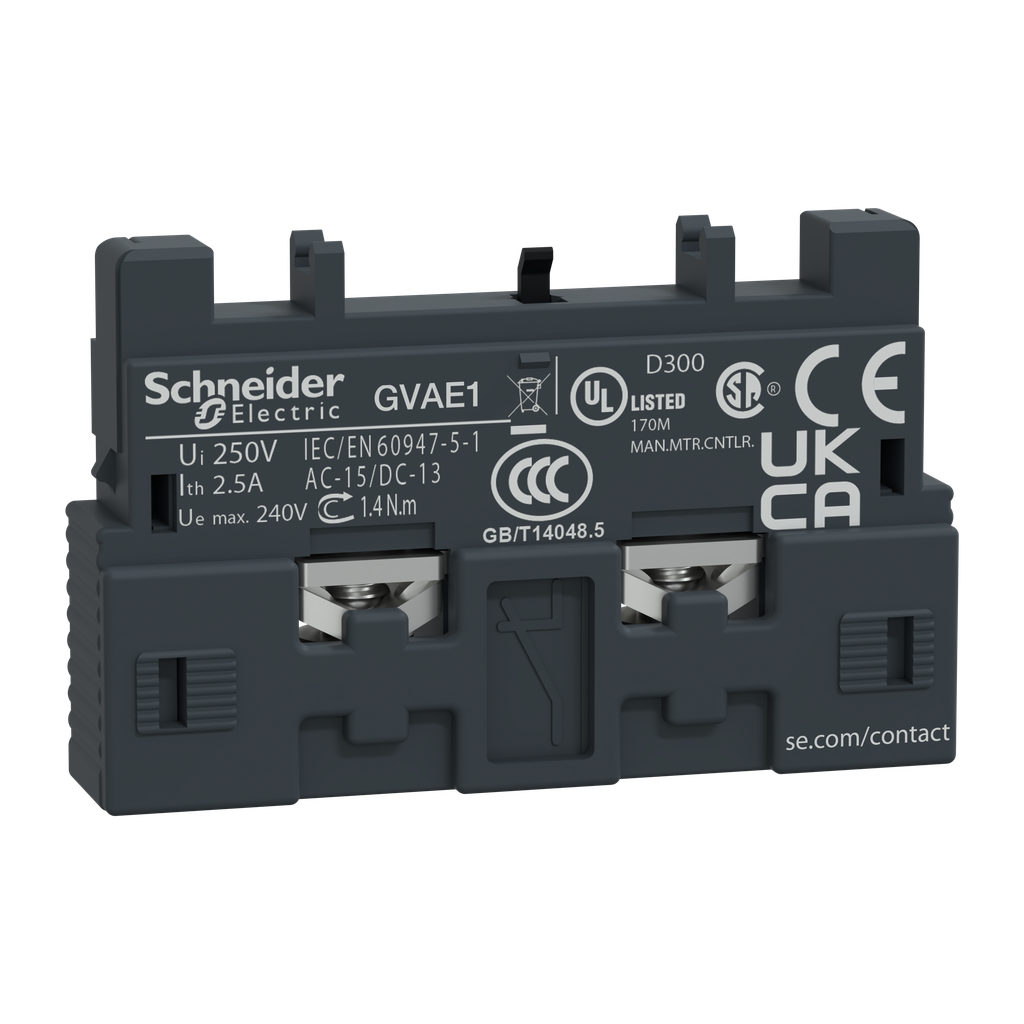

Schneider Electric GVAE1 Square D 1NO 1NC 240 VAC 60 VDC 2.5 Amp Manual Starter Auxiliary Contact

Product Description

Schneider Electric GVAE1 is a manual starter auxiliary contact suitable for motor circuit breakers GV2 and GV3. This product features either one normally open (NO) or one normally closed (NC) contact, depending on the mounting orientation. It is rated for operation up to two amperes at two hundred forty volts alternating current (AC) and one ampere at sixty volts direct current (DC). The contact block is designed for front side installation on a circuit breaker, connecting through screw clamp terminals.

• Commonly used with TeSys GV motor starters.
• Multi-standard certified including IEC, UL, CSA, and CCC.
• Sold in packages of ten units for convenience.

Product Highlights

This auxiliary contact block is certified Green Premium compliant, meeting RoHS and REACh standards. It provides reliable performance in standard environmental conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GVAE1
• Voltage: 240 Volt
• Amperage: 2.5 Amp
• Width: 45 mm
• Height: 11 mm
• Depth: 29 mm
• Weight: 0.04 lb
• Country of Origin: Czech Republic
• Operating Cycles: 100000 CYCLES
• Warranty Length: 18 months
• GTIN: 03389110343427
