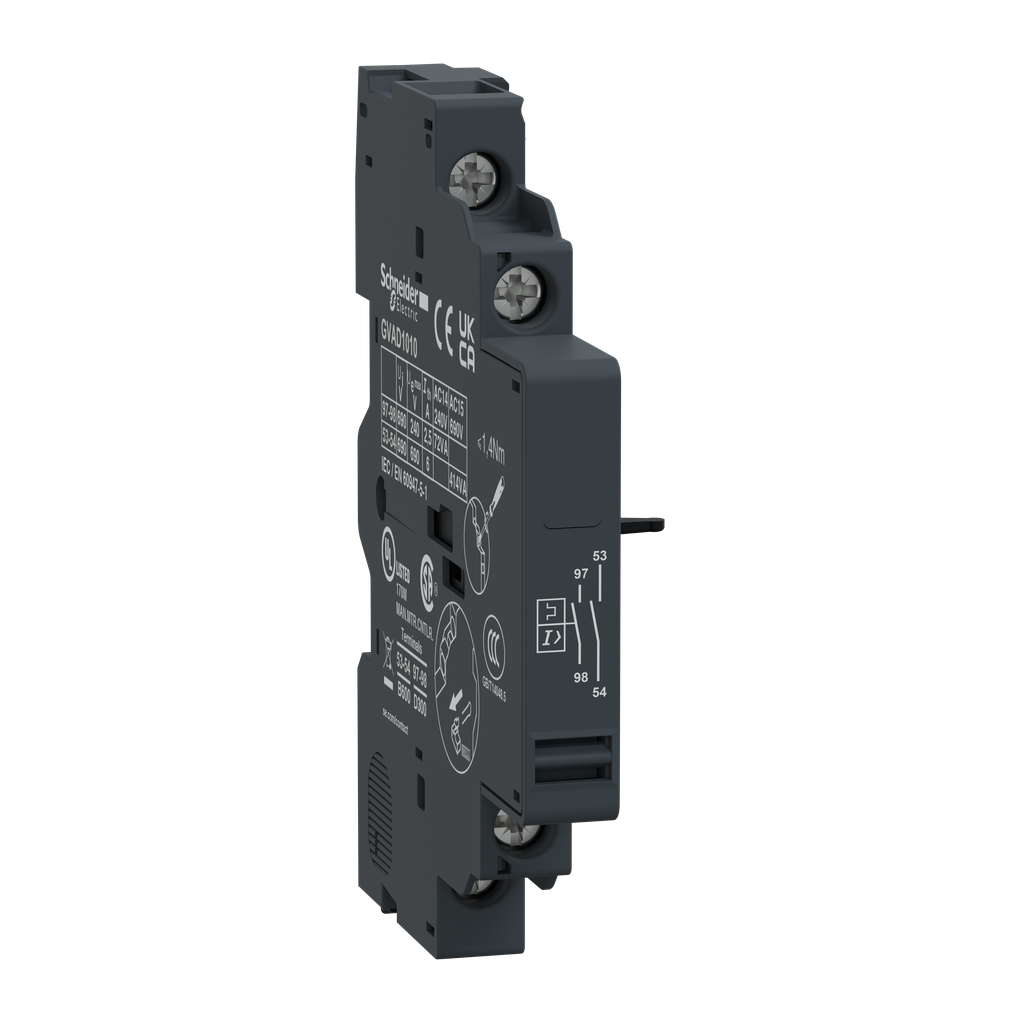

Schneider Electric GVAD1010 Auxiliary Contact 2NO 690 VAC 240 VDC 6 Amp

Product Description

The Schneider Electric GVAD1010 is an auxiliary contact block designed for motor circuit breakers GV2 and GV3. This product includes one normally open (NO) fault signaling contact and one NO instantaneous auxiliary contact. The auxiliary contact is rated for operations up to six amps at six hundred ninety volts AC and six amps at two hundred forty volts DC. The fault signaling contact supports operations up to two amps at two hundred forty volts AC and one amp at sixty volts DC.

This contact block is intended to be installed on the left side of circuit breakers, allowing for a maximum of one block to be mounted. Connections are made using screw clamp terminals, ensuring secure electrical connections. It is certified by multiple standards such as IEC, UL, and CSA, and adheres to Green Premium standards, including RoHS and REACh compliance.

• Auxiliary contact designed for motor circuit breakers.
• Operates effectively under high voltage and current.
• Complies with various international standards.

Product Highlights

This auxiliary contact block enhances the flexibility and safety of electrical motor controls.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D / Schneider

Technical Specifications

• Catalog Number: GVAD1010
• Voltage: 240 Volt
• Amperage: 6 Amp (2.5 Amp for fault signaling)
• Contact Configuration: 2 NO
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• Operating Cycles: 100,000 cycles
• Size: 66 mm x 89 mm x 9.3 mm
