Schneider Electric GVAD0110 Square D GVAD0110 1NO 1NC 690 VAC 240 VDC 6 Amp Manual Starter Auxiliary Contact

Product Description

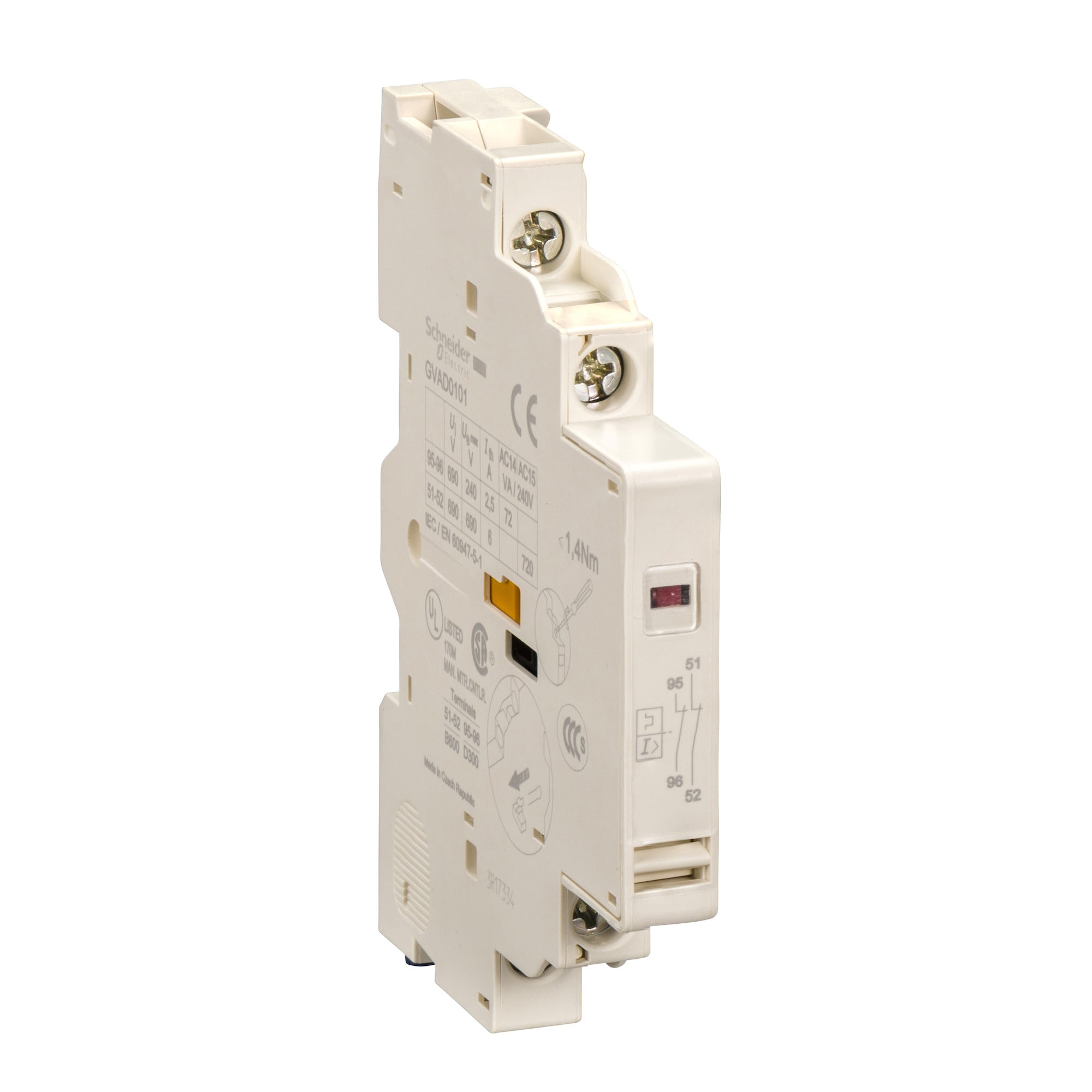

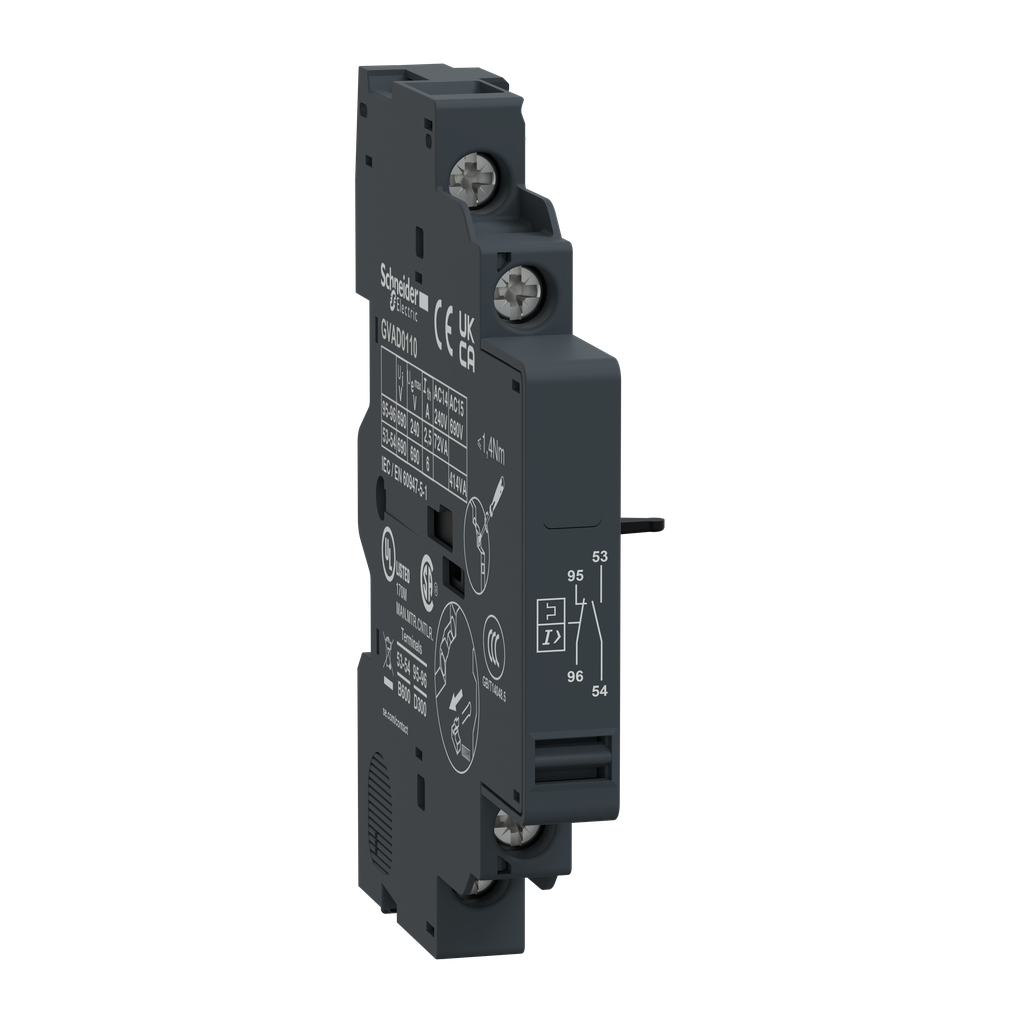

The Schneider Electric GVAD0110 is an auxiliary contact block designed for motor circuit breakers GV2 and GV3. This block includes one normally closed (NC) fault signaling contact and one normally open (NO) instantaneous auxiliary contact. Rated for operations up to six amps at six hundred ninety volts AC and six amps at two hundred forty volts DC, it also features a fault signaling contact rated for two amps at two hundred forty volts AC and one amp at sixty volts DC.

Designed for left-hand side installation on the circuit breaker, the GVAD0110 allows for easy connection through screw clamp terminals. It meets multiple international standards including IEC, UL, CSA, CCC, and EAC, ensuring compliance with various safety regulations. It is also Green Premium compliant, adhering to RoHS and REACh directives.

• One NC and one NO contact for versatile operation
• Multi-standard certification for universal application
• Low operational voltage ratings enhance safety

Product Highlights

Ideal for controlling and monitoring motor operations in various industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: GVAD0110
• Voltage: 240 Volt
• Amperage: 6 Amp (2.5 Amp for fault signaling)
• Depth: 66 mm
• Width: 9.3 mm
• Height: 89 mm
• Weight: 0.12 lb
• Operating Cycles: 100000 cycles
• Country of Origin: Czech Republic
• Warranty: 18 months
• GTIN: 03389110343533
