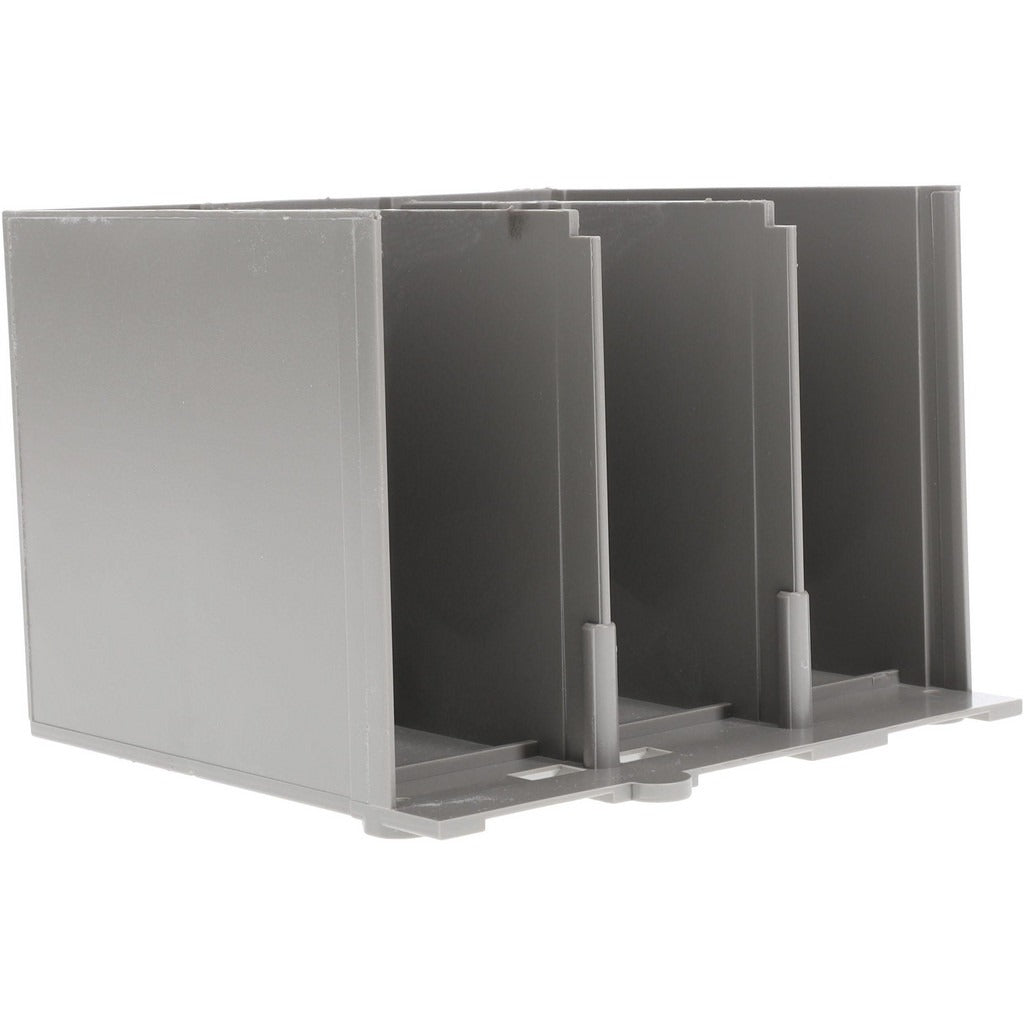

Schneider Electric GV7AC01 Terminal Shield GV7R Tesys

Product Description

The SCHNEIDER ELECTRIC GV7AC01 is a terminal shield designed for use with circuit breakers in the GV7R and TeSys product families. Terminal shields provide insulated coverage over exposed electrical terminals, reducing the risk of accidental contact with live conductors during and after installation. This accessory ships as a single unit and is installed by licensed electricians working on motor protection and control circuit breaker assemblies. The GV7AC01 measures 3.9 inches in length, 4.7 inches in width, and 3.5 inches in height, making it a compact protective cover suited for panel and enclosure work.

This terminal shield is intended for use in industrial and commercial electrical installations where motor circuit protection is provided by GV7R-series or TeSys circuit breakers. It is commonly installed in motor control centers, panel boards, and enclosures where exposed breaker terminals require additional insulation and protection from incidental contact. A single shield is included per package, providing targeted coverage for one breaker terminal assembly.

Key Features

• Provides insulated coverage over exposed circuit breaker terminals
• Compatible with GV7R and TeSys series circuit breakers
• Compact form factor: 3.9 inches long, 4.7 inches wide, 3.5 inches tall
• Single-unit packaging for targeted replacement or accessory installation
• Supports safe panel and enclosure servicing by reducing accidental contact risk

Compatibility

Designed for use with SCHNEIDER ELECTRIC GV7R and TeSys series circuit breakers, as specified by the manufacturer.

Installation Notes

Installation of this terminal shield should be performed by a qualified electrician. De-energize the circuit and verify the absence of voltage before attaching or removing any terminal cover. Ensure the shield is fully seated and secured before restoring power. Work should comply with applicable NEC requirements for guarding of live parts.
