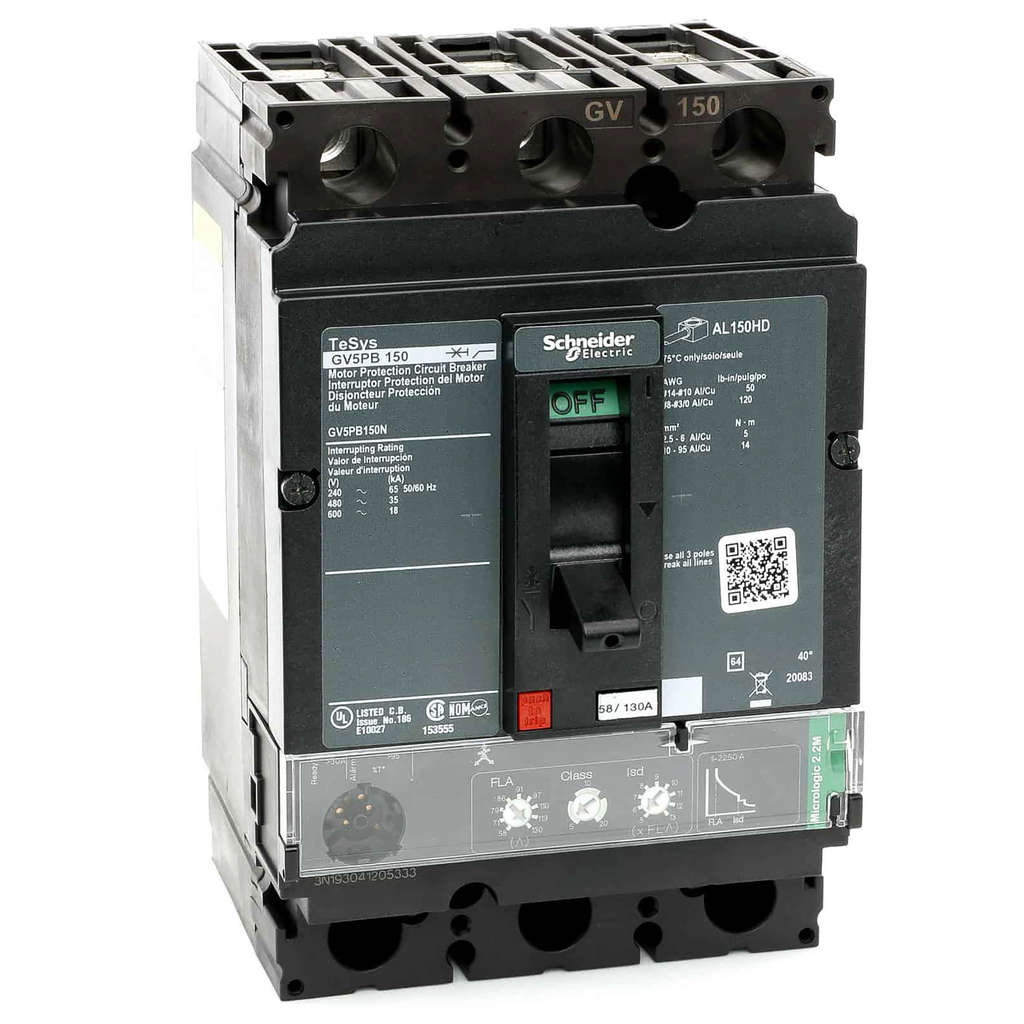

Schneider Electric GV5PB150N Motor Circuit Breaker 150A 3P 18kA SCCR

Product Description

The Schneider Electric GV5PB150N is a motor circuit breaker designed for motor protection. It provides effective control and protection for electrical systems up to five hundred twenty amps. This circuit breaker is rated at one hundred fifty amps and features three poles for versatile applications.

• Thermal protection with adjustable dials from fifty-eight amps to one hundred thirty amps.
• Select from tripping classes of five, ten, or twenty.
• Short-circuit current rating of eighteen kiloamperes at six hundred volts.

Product Highlights

The GV5PB150N motor circuit breaker is UL listed and meets various certifications including CSA, IEC, CCC, EAC, and Marine standards. It measures six point four inches in height, four point twelve inches in width, and four point thirty-six inches in depth.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GV5PB150N
• Voltage: 600 Volt
• Amperage: 150 Amp
• Mounting Type: Unit Mount
• Height: 6.4 Inch
• Width: 4.12 Inch
• Depth: 4.36 Inch
• Country of Origin: USA
