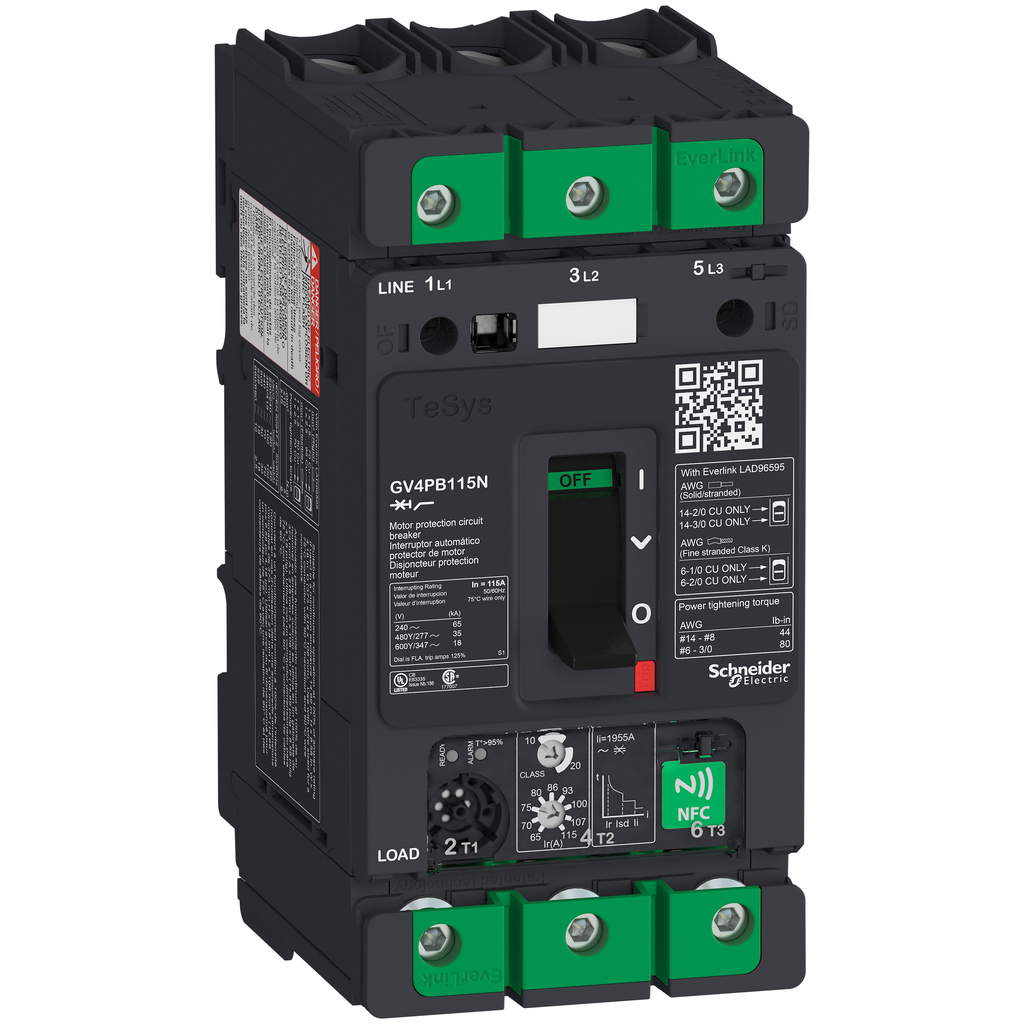

Schneider Electric GV4PB115N Motor Circuit Breaker 115A (Each) Replacement MPN

Product Description

Schneider Electric GV4PB115N is a motor circuit breaker designed to protect three-phase motors with a capacity of thirty-seven to fifty-five kilowatts at four hundred volts. It has three poles and can handle up to 115 amps at 690 volts. This device is compliant with UL489 standards and provides thermal and magnetic protection for motors. The product features adjustable thermal protection settings and can connect using Everlink BTR screw terminals.

• Provides thermal and magnetic protection
• Adjustable settings for customizable motor protection
• Compliant with multiple standards including IEC, UL, and CSA

Product Highlights

This circuit breaker includes advanced protections adjustable via smartphone using NFC technology. Users can set parameters such as short time delay and phase unbalance protection to enhance safety and performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GV4PB115N
• Voltage: 347 Volt
• Amperage: 115 Amp
• Weight: 3.20 lb
• Net Weight: 1.45 kg
• Height: 171 mm
• Width: 81 mm
• Depth: 116 mm
