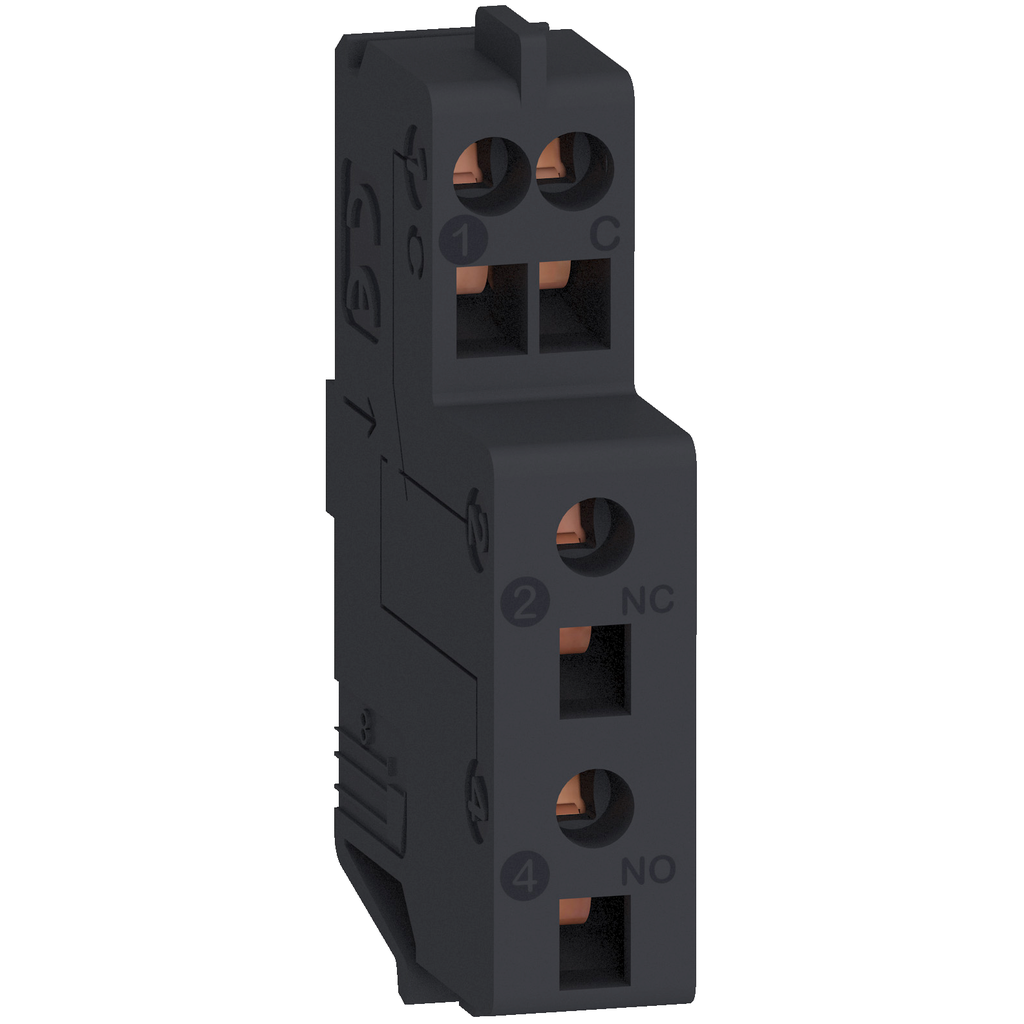

Schneider Electric GV4AE11 Auxiliary Contact 690VAC 1 NO/NC

Product Description

The Schneider Electric GV4AE11 is an auxiliary contact designed for motor circuit breakers in the GV4 series. This device features a one change-over contact capable of performing either an Open/Close function or a Trip alarm function, depending on its position in the circuit breaker. It is rated for operation at up to five amperes and six hundred ninety volts AC, and five amperes at two hundred fifty volts DC. The GV4AE11 is designed for internal mounting within the circuit breaker, connecting via spring terminals. This product meets multiple standards including IEC, UL, CSA, and EAC while being compliant with RoHS and REACH regulations.

• Multi-use for Open/Close or Trip alarm functions
• Rated for up to 5A/690V AC and 5A/250V DC
• Easy installation into circuit breaker via spring terminals

Product Highlights

This auxiliary contact is suitable for signaling applications and provides versatile functionality in motor control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GV4AE11
• Voltage: 690 Volt
• Contact Configuration: 1 NO/NC
• Country of Origin: China
• Rated Power: 110 V
• Applications: Signaling
• Strip Length: 8 mm
• Length: 8 mm
