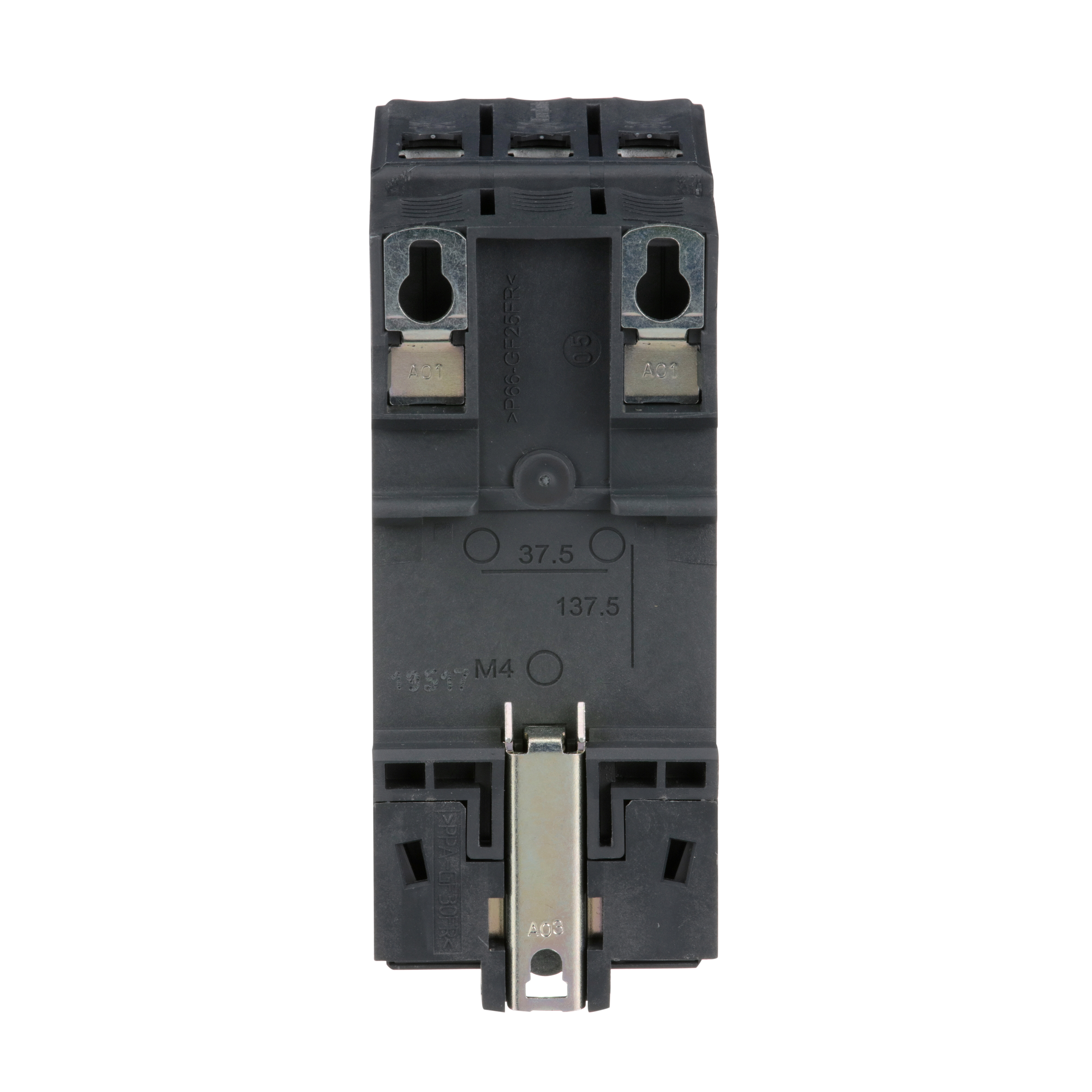

Schneider Electric GV3P50 Manual Motor Starter 50 Amp 3-Pole 690 VAC

Product Description

The Schneider Electric GV3P50 is a manual motor starter featuring a thermal magnetic circuit protector. This device provides motor control and thermal protection for motors with full load currents up to 65 amperes. It is designed to isolate, control, and protect motors effectively in one compact unit.

• Three-pole design.
• Adjustable thermal protection from thirty-seven ampere to fifty ampere.
• Multi-standard certification including IEC, UL, CSA, and more.

Product Highlights

This motor starter features a rotary handle for operation. It includes EVERLINK terminals for easier wiring and improved connections. It is suitable for various applications, providing a reliable solution for motor protection.

Product Information

Standard Information

• Catalog Number: GV3P50
• Brand: Schneider Electric

Technical Specifications

• Voltage Rating: 690 V AC
• Rated Current: 50 A
• Dimensions: 55 mm width, 136 mm depth, 132 mm height
• Weight: 2.12 lb (0.96 kg)
• Number of Poles: 3
• Operating Temperature: -20 to 60 degrees Celsius
• Applications: Motor protection
