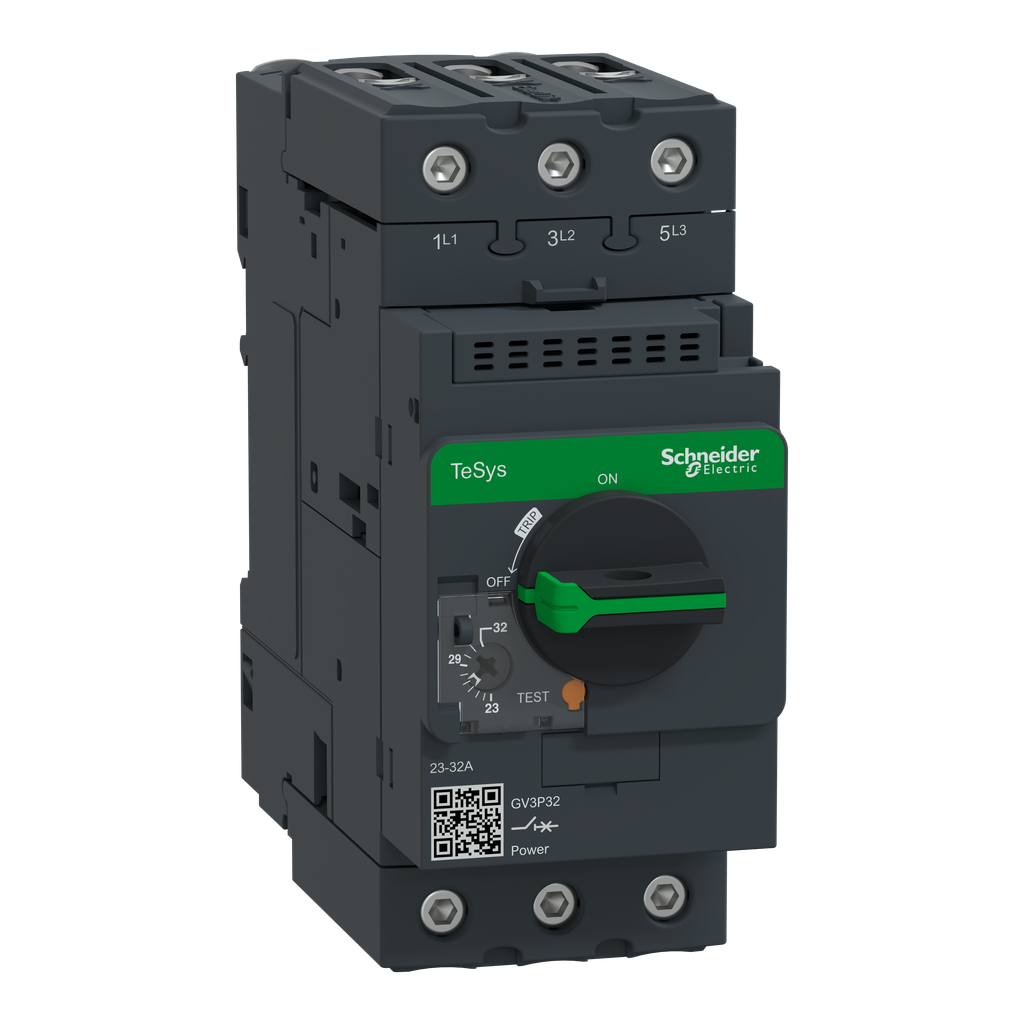

Schneider Electric GV3P32 Square D 600 VAC 40 Amp 3-Pole Manual Motor Starter

Product Description

The Schneider Electric GV3P32 is a manual motor starter designed for motor applications at 15 kW and 400 volts. This unit provides thermal-magnetic protection with a high breaking capacity of 100 kA. It features a rotary knob for start-stop control, rated for fifty thousand cycles at AC-3 and 415 volts. The thermal setting range is between twenty-three and thirty-two amperes, featuring magnetic tripping at fourteen times the rated current.

• Compact design, 55 mm wide for DIN rail and panel mounting.
• High breaking capacity suitable for industrial applications.
• Compatible with various auxiliary contacts for enhanced functionality.

Product Highlights

This device ensures complete motor protection, including overload and short-circuit protection. It is multipurpose and certified under multiple standards such as IEC, UL, and CSA, making it reliable in various installations.

Product Information

Standard Information

• Catalog Number: GV3P32
• Brand: Schneider Electric

Technical Specifications

• Type: Circuit Breaker
• Voltage: 690 Volt
• Amperage: 32 Amp
• Width: 55 mm
• Height: 132 mm
• Depth: 136 mm
• Weight: 2.12 lb
• Number of Poles: 3 Pole
