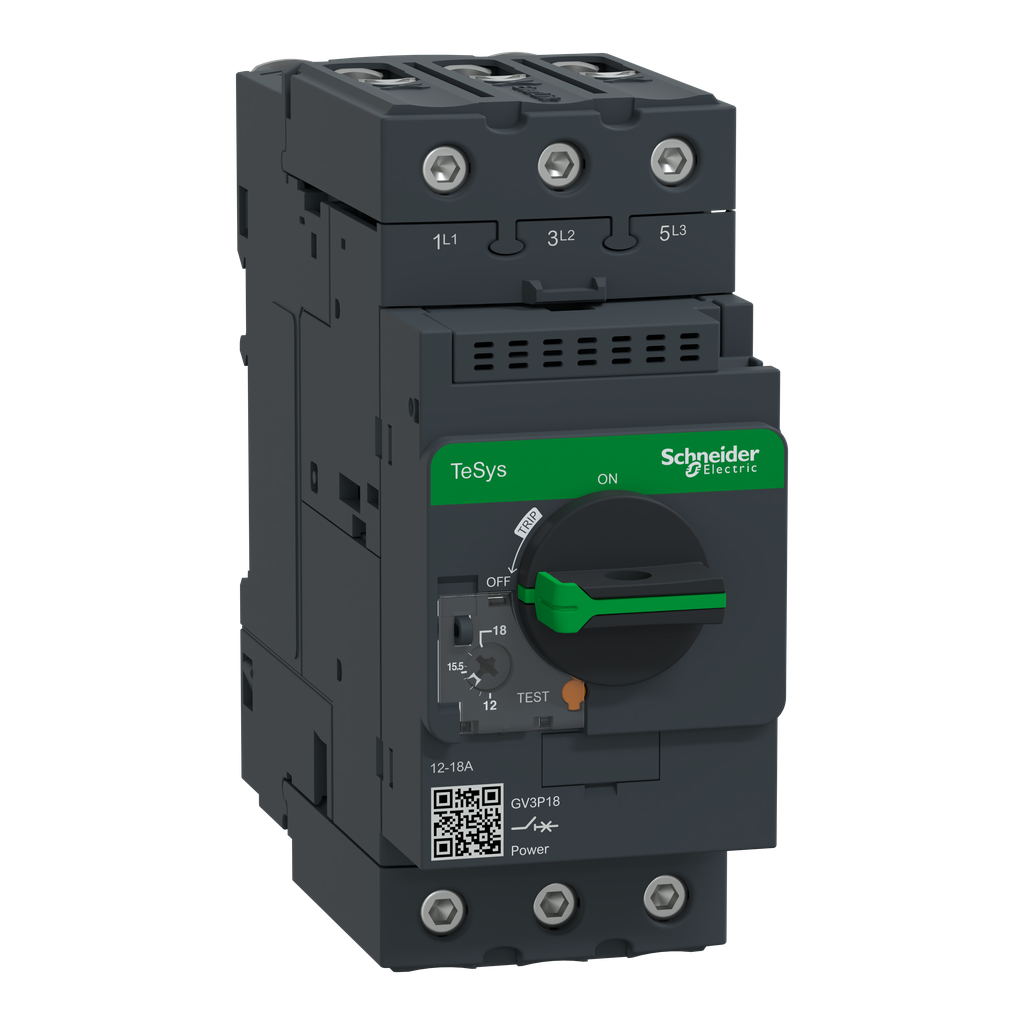

Schneider Electric GV3P18 Square D 600 VAC 40 Amp 3-Pole Manual Motor Starter

Product Description

The Schneider Electric GV3P18 is a reliable 600 VAC 40 Amp 3-pole manual motor starter. It is designed to ensure thermal and magnetic protection for motors up to 7.5 kW at 400 volts. This device offers high breaking capacity with Icu rated at 100 kA, suitable for demanding industrial applications.

• Rotary knob control for easy start and stop operation.
• Designed for up to 50,000 operational cycles.
• Multi-standard certified: IEC, UL, CSA, and more.

Product Highlights

The GV3P18 combines manual control with a compact design, making it ideal for both panel and DIN-rail mounting. Auxiliary contacts can be mounted either front or side for versatile signaling options. It also features a robust construction that withstands harsh environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GV3P18
• Voltage: 690 Volt
• Amperage: 18 Amp
• Enclosure: IP20 conforming to IEC 60529
• Number of Poles: 3 Pole
• Dimensions: 55 mm width, 136 mm depth, 132 mm height
• Weight: 2.12 lb (0.96 kg)
• Country of Origin: France
