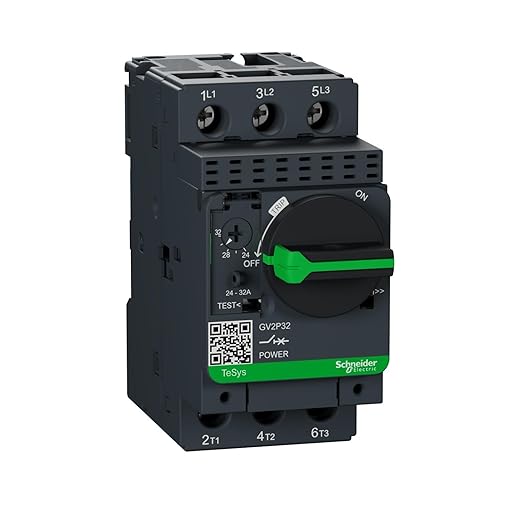

Schneider Electric GV2P32 Motor Circuit Breaker 24-32A

Product Description

The Schneider Electric GV2P32 Motor Circuit Breaker is designed for motor protection and control, offering reliable performance with a current range of 24-32 Amps. It is suitable for a variety of applications where thermal magnetic protection is required.

• 3 Pole starter
• Current rating: 24-32 Amps
• Voltage rating: 600/690VAC

Product Highlights

This circuit breaker features a compact size for easy din rail mounting and is built to meet high industry standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Current Rating: 32 Amps

Technical Specifications

• Mounting Type: Din Rail
• Series: TeSys GV2
• Amperage: 24-32
• Voltage: 600/690VAC
• Poles: 3
• Phase: 3
• Approval: EN, IEC, CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
• Frame Type: GV2
• Connection Type: Screw Clamp
• Protection: Thermal Magnetic
• Standards: RoHS
• Temperature Rating: -20 to 60°C
• Actuator Type: Rotary Handle
