Product Description

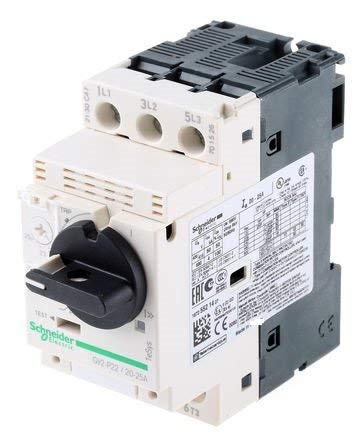

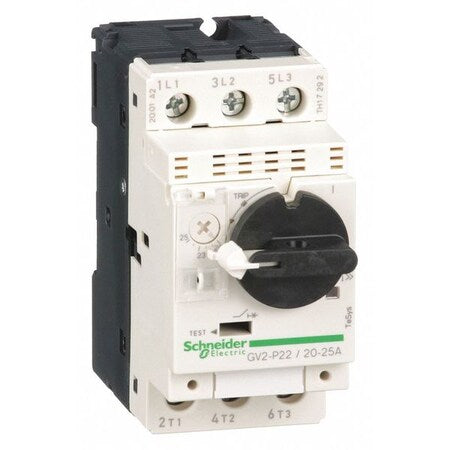

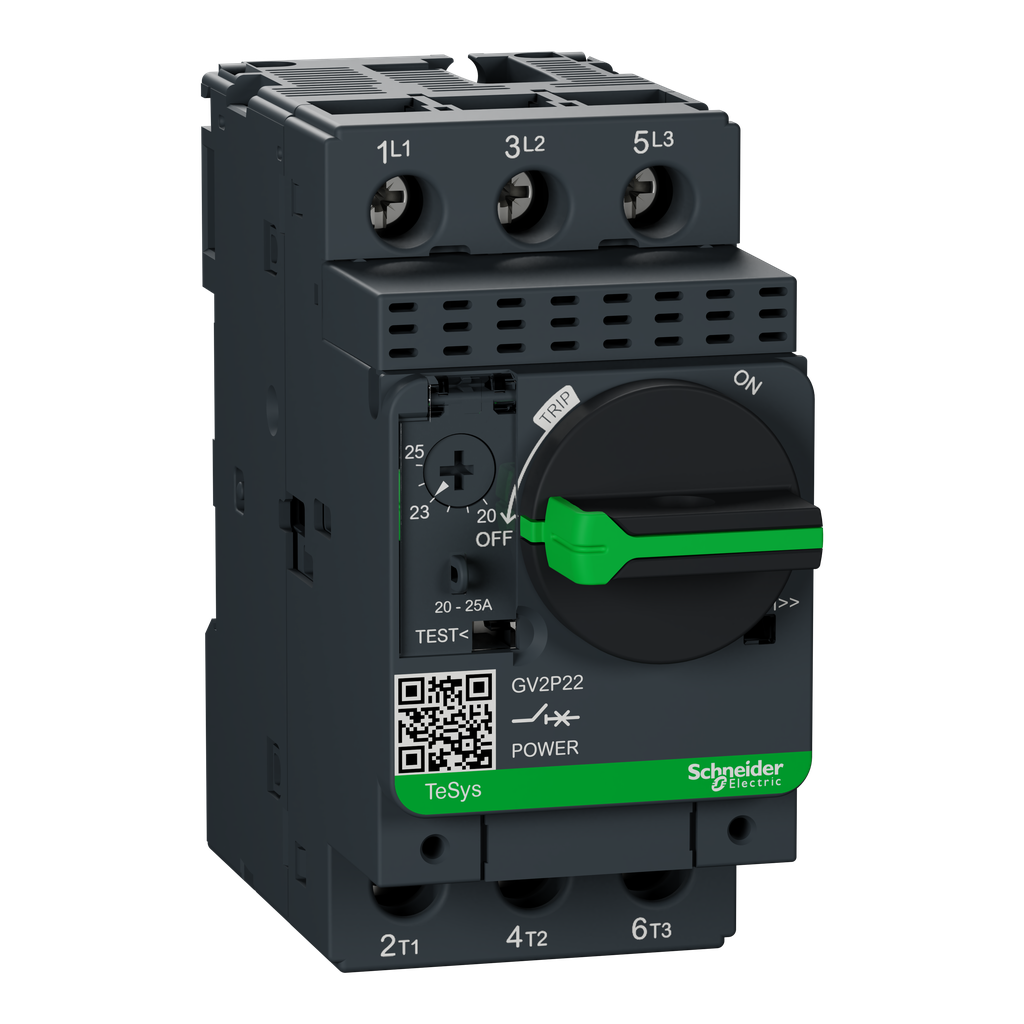

The Schneider Electric GV2P22 is a 3-pole manual motor starter and protector designed to offer manual isolation, control, and thermal overcurrent protection for motors up to 25 amps. This unit is suitable for motors with full load currents up to 32 amps and is operated via a rotary handle. It features an ambient compensated thermal overcurrent adjustment range of 20 to 25 amps and includes screw clamp terminals for secure connections. Certified for multiple standards, the GV2P22 is a reliable and compliant choice for various industrial applications.
- Manual isolation and control
- Thermal overcurrent protection
- Suitable for motors up to 25 amps
Product Highlights
The Schneider Electric GV2P22 manual starter ensures reliable motor protection with its adjustable thermal overcurrent settings and robust screw clamp terminals. Ideal for industrial environments, it supports full load currents up to 32 amps and operates with a rotary handle, providing user-friendly control.
Product Information
Standard Information
-
Brand: Schneider Electric
-
Manufacturer: Square-D / Schneider
-
Catalog Number: GV2P22
-
Country of Origin: Thailand
-
Warranty Length: 18 months
Technical Specifications
-
Type: Circuit Breaker
-
Color: Gray
-
Depth: 97 mm
-
Width: 45 mm
-
Height: 89 mm
-
Voltage: 690 Volt
-
Amperage: 25 Amp
-
Standard: EN/IEC 60947-2, EN/IEC 60947-4-1
-
Enclosure: IP20 conforming to IEC 60529
-
Sub Brand: GV2P, TeSys, TeSys GV2
-
Reset Type: Ambient compensated bimetallic (Class 10) 20A to 25A
-
Trip Point: 327-327 A
-
Product UPC: 785901832973
-
Applications: Motor
-
Control Type: Rotary knob
-
TC Connection: Screw clamp terminals 2 1-6 mmA solid, Screw clamp terminals 2 1.5-6 mmA flexible without cable end, Screw clamp terminals 2 1-4 mmA flexible with cable end
-
Certifications: ATEX, BV, CCC, CSA, DNV-GL, EAC, LROS (Lloyds Register of Shipping), RINA, UKCA, UL
-
Number of Poles: 3 Pole
-
Operating Cycles: 25 cyc/h
-
Line Rated Current: 25 A
-
Storage Temperature: -40 to 80 degrees C
-
Operating Temperature: -20 to 60 degrees C
-
Max. Voltage: 600V AC
-
Pilot Light: Yes
