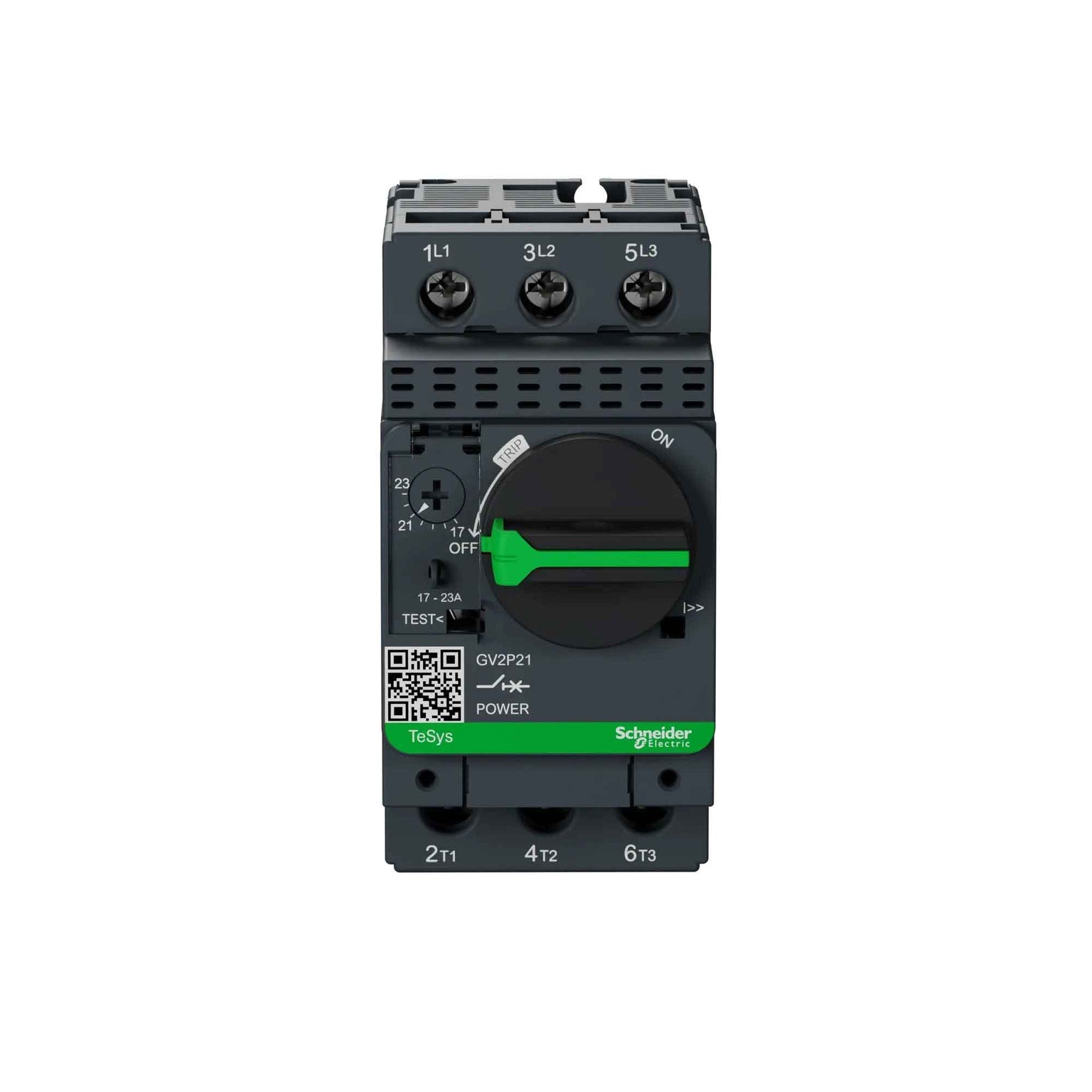

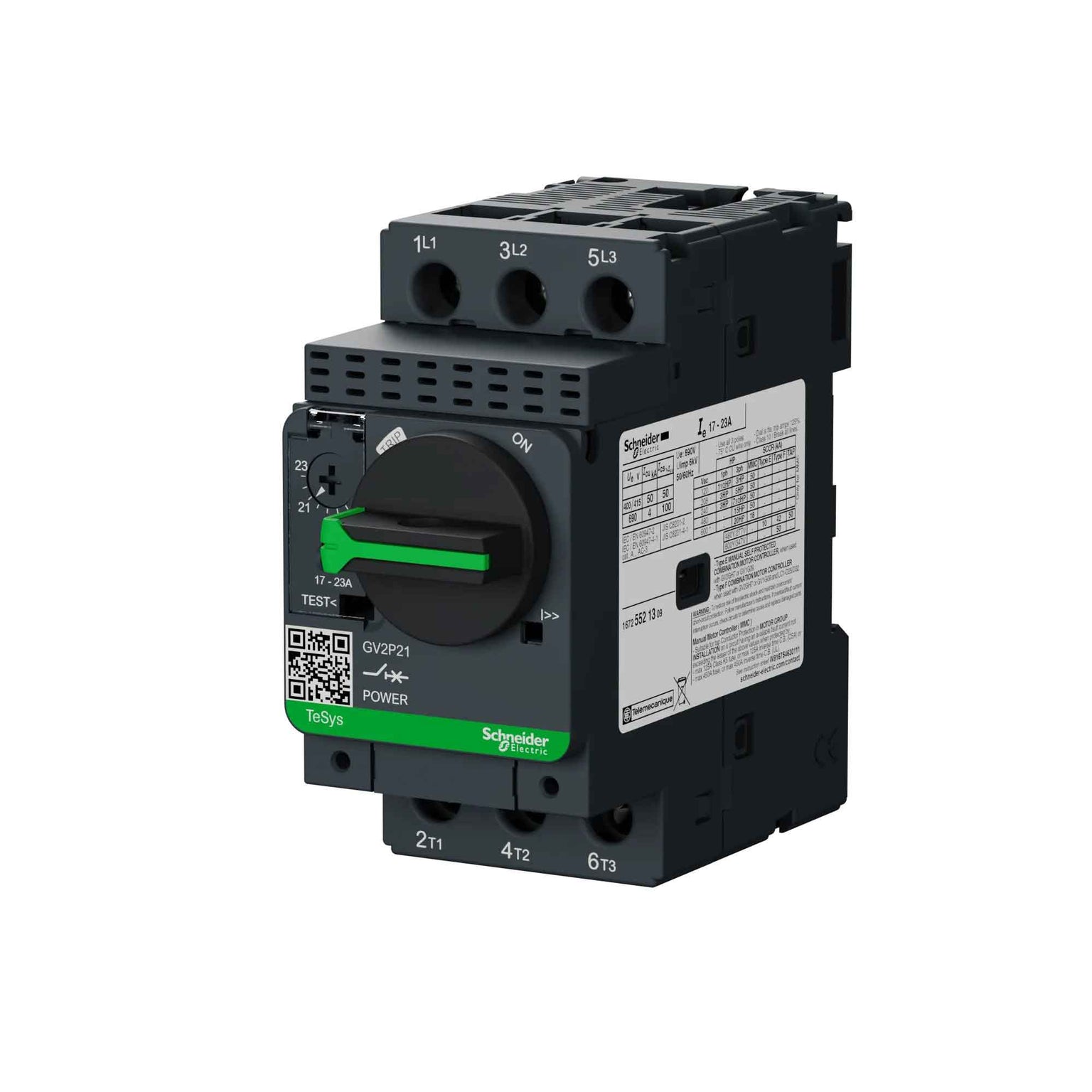

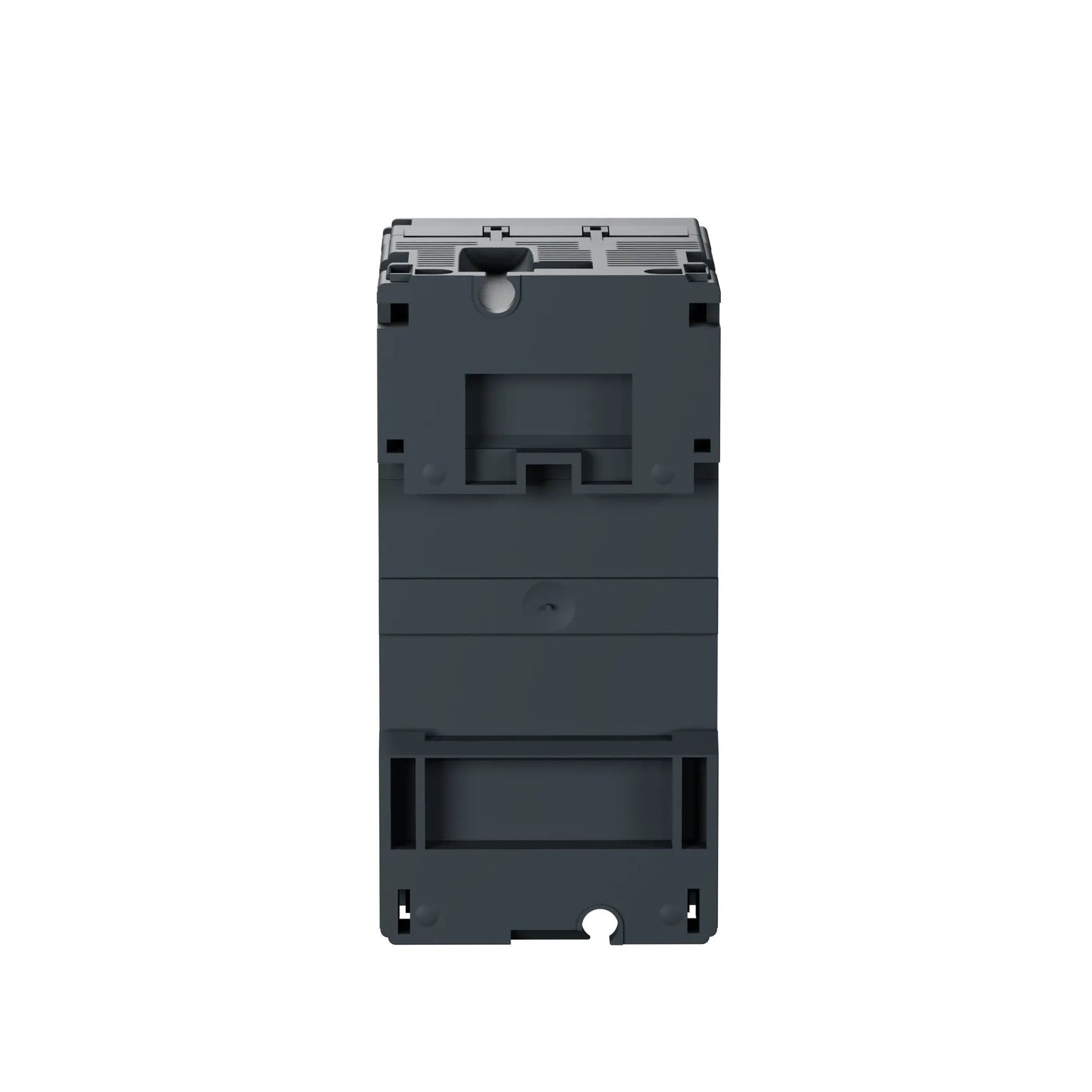

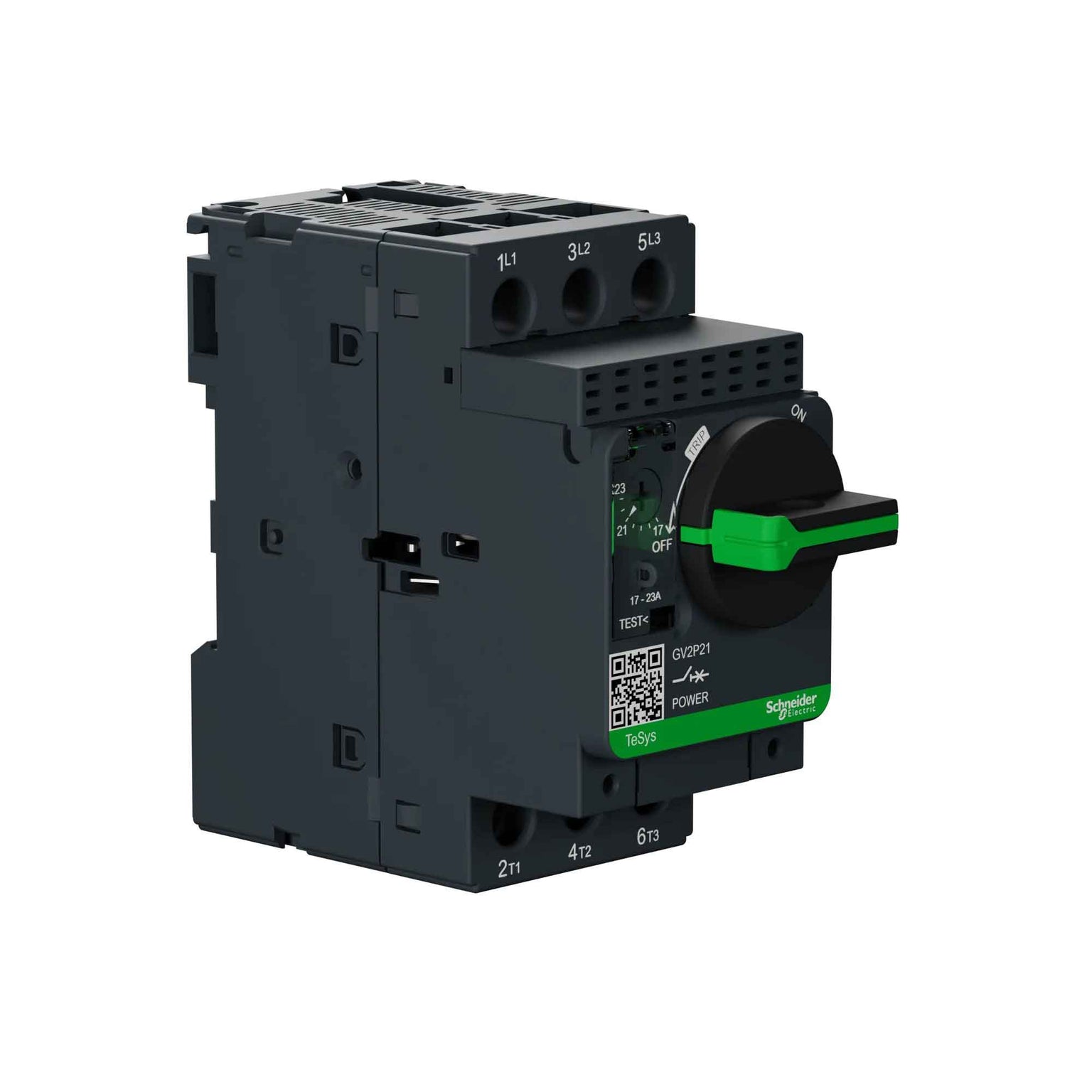

Schneider Electric GV2P21 TeSys GV2 Motor Circuit Breaker 17...23 A

Product Description

The Schneider Electric GV2P21 TeSys GV2 motor circuit breaker is designed for motor protection and control with a current range from 17 to 23 A. This three-pole circuit breaker is suitable for AC applications, allowing manual isolation and effective control of motors. The device has screw clamp terminals for secure connections and features a rotary knob for operation.

• Thermal-magnetic protection for motors.
• Compatible with LC1D motor control systems.
• Mountable on a thirty-five millimeter DIN rail or can be screwed to a panel.

Product Highlights

This motor circuit breaker ensures reliable operation and safety in various applications. It is suitable for use in industrial environments where motor protection is essential.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: GV2P21

Technical Specifications

• Trip Unit Technology: Thermal-magnetic
• Rated Current: 17 to 23 A
• Breaking Capacity: 10 kA at 500 V AC
• Rated Operational Voltage: 690 V AC
• IP Degree of Protection: IP20
• Height: 89 mm
• Width: 45 mm
• Depth: 97 mm
