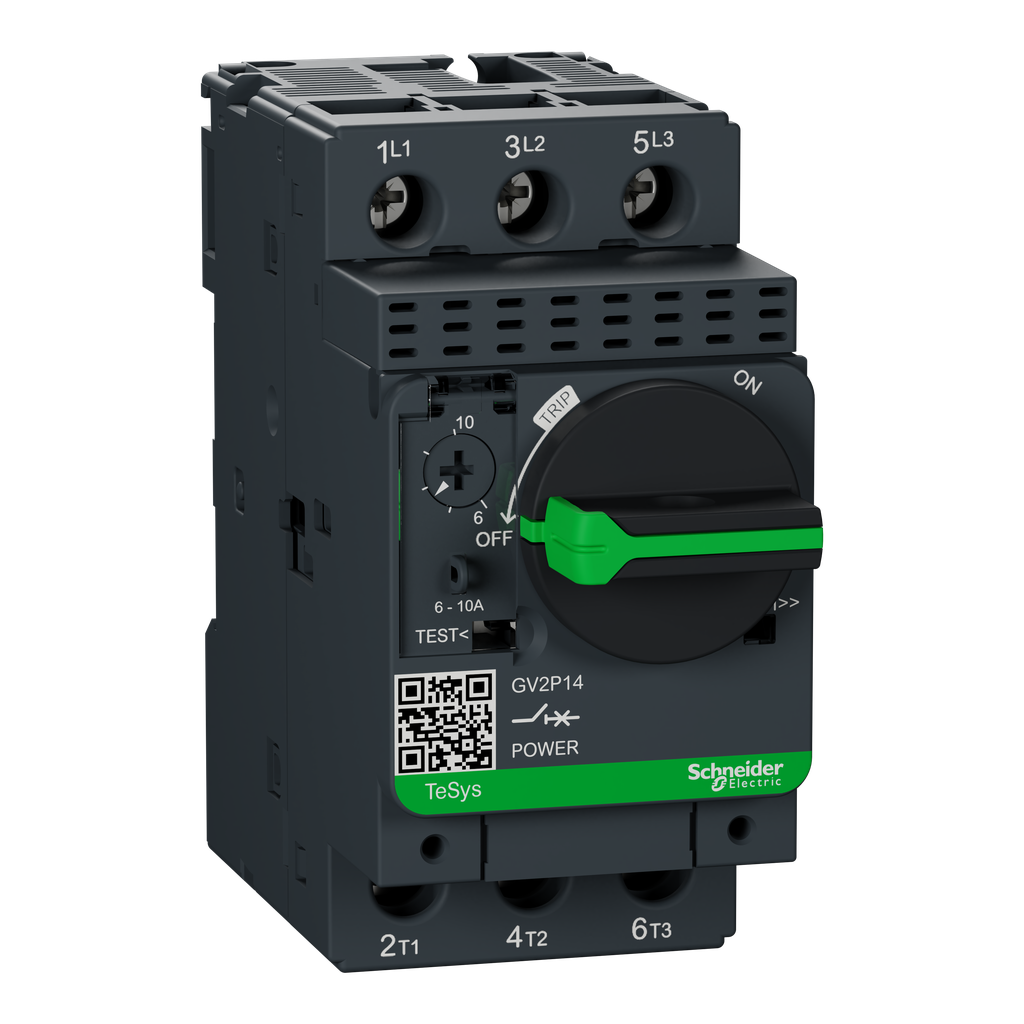

Schneider Electric GV2P14 Manual Starter 600VAC 10 Amp

Product Description

The Schneider Electric GV2P14 is a manual starter and protector designed for thermal overcurrent protection and manual motor control. This unit offers a compact solution for controlling motors with full load currents up to ten amperes. It features three poles and operates through a rotary handle, making it user-friendly. The thermal overcurrent protection is adjustable from six amperes to ten amperes, allowing for precise control. This device is equipped with screw clamp terminals for easy installation. The multi-standard certifications include IEC, UL, CSA, CCC, EAC, marine, and ATEX, confirming its reliability in various applications. It is also compliant with Green Premium standards for environmental safety.

• Manual motor control with thermal protection
• Adjustable thermal overcurrent settings from six to ten amperes
• Multi-standard compliant for safety and environmental standards

Product Highlights

This product is ideal for applications requiring consistent motor protection and control. Its robust design ensures durability in demanding environments.

Product Information

Standard Information

• Catalog Number: GV2P14
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 690 volts AC
• Amperage: 10 amps
• Number of Poles: 3
• Depth: 97 mm
• Width: 45 mm
• Height: 89 mm
• Operating Temperature: -20 to 60 degrees Celsius
• Certifications: IEC, UL, CSA, CCC, EAC, Marine, ATEX
• Warranty Length: 18 months
