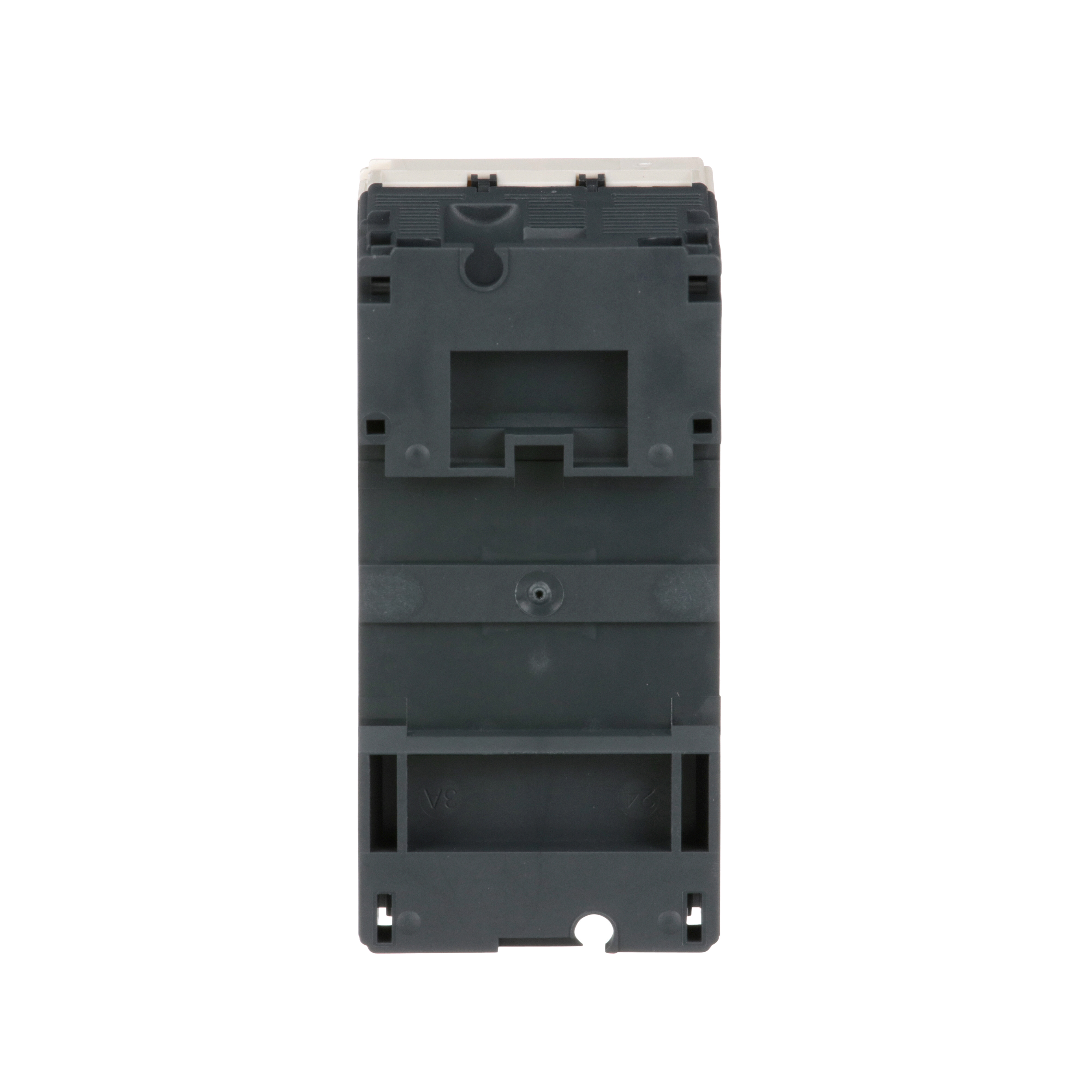

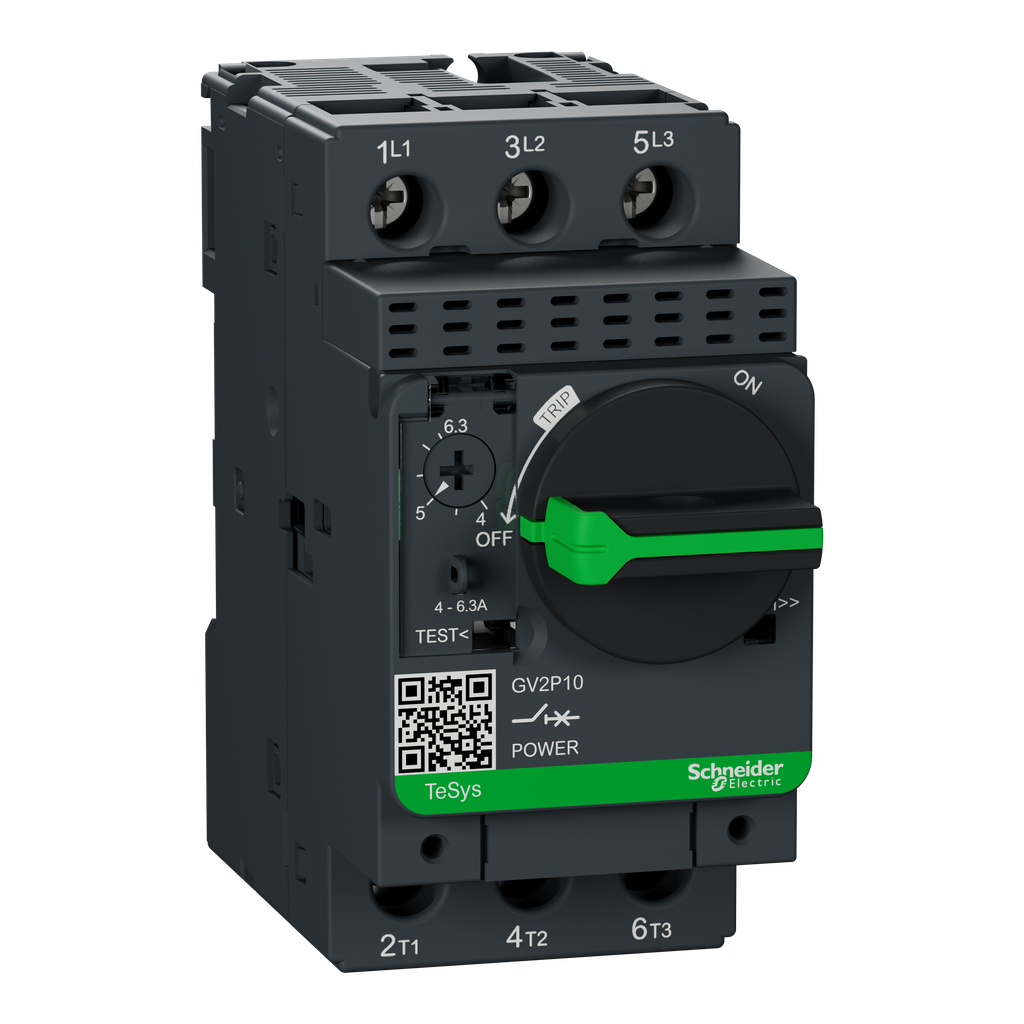

Schneider Electric GV2P10 Square D 3-Pole 600 VAC 6.3 Amp Manual Starter

Product Description

The Schneider Electric GV2P10 is a manual starter and protector designed for motor control. This unit provides manual isolation, motor control, and thermal overcurrent protection in a single compact design. It controls motors with full load currents up to thirty-two amps. This model features three poles with various horsepower ratings and operates using a rotary handle. The thermal overcurrent protection is adjustable from four amps to six point three amps. The device includes screw clamp terminals for secure connections. It meets multiple standards such as IEC, UL, and CSA and is compliant with Green Premium guidelines.

• Manual motor control and protection in one unit
• Adjustable thermal protection from four to six point three amps
• Meets multiple international safety and compliance standards

Product Highlights

Efficient and reliable motor control suitable for various applications.

Product Information

Standard Information

• Catalog Number: GV2P10
• Brand: Schneider Electric

Technical Specifications

• GTIN: 03389110213485
• Size: Forty-five MM wide, eighty-nine MM high, ninety-seven MM deep
• Voltage: Six hundred ninety Volt
• Amperage: Six point three Amp
• Number of Poles: Three
• Warranty Length: Eighteen months
• Country of Origin: Thailand
