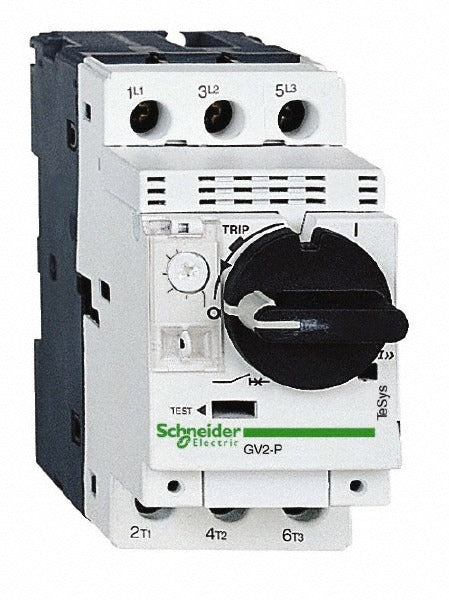

Schneider Electric GV2P04 Motor Circuit Breaker 6.30A 3 Pole

Product Description

The SCHNEIDER ELECTRIC GV2P04 is a 3-pole motor circuit breaker rated for 6.30 amps and up to 690 VAC at 50/60 Hz. It uses a thermal-magnetic tripping mechanism to protect motor branch circuits from overloads and short-circuit faults. The bolt-on, clip-mount design allows for straightforward DIN-rail or panel installation. Screw terminals provide secure conductor connections. Licensed electricians and industrial maintenance technicians install this type of device in motor control panels and machine control enclosures where branch-circuit motor protection is required by NEC Article 430.

The GV2P04 is suited for residential, commercial, and light industrial motor control applications where a compact, self-protected motor starter or standalone motor protective circuit breaker is needed. Its multiple breaking capacity ratings make it adaptable across a range of fault-current environments. The unit measures 4 inches high, 3.7 inches wide, and 1.9 inches in length, fitting into standard control enclosures without significant space impact.

Key Features

• Thermal-magnetic trip mechanism provides overload and short-circuit protection in a single device
• Rated 6.30 amps continuous with 690 VAC compatibility at 50/60 Hz
• 3-pole configuration for three-phase motor branch-circuit protection
• Bolt-on, clip-mount design for DIN-rail or direct panel installation
• Screw terminal connections for reliable conductor termination
• Multiple breaking capacity ratings for flexible fault-current application

Compatibility

Designed as an OEM-style replacement or new-installation motor circuit breaker for 3-phase motor control panels and machine control enclosures requiring thermal-magnetic branch-circuit protection at 6.30 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 430 and all applicable local electrical codes. De-energize and lock out the panel before mounting or wiring this device. Verify that conductor sizing and terminal torque comply with the enclosure and panel manufacturer specifications. Do not exceed the device amp rating when selecting motor branch-circuit conductors.
