Schneider Electric GV2MP04 Square D IP55 Flush Mount Manual Starter Enclosure

Product Description

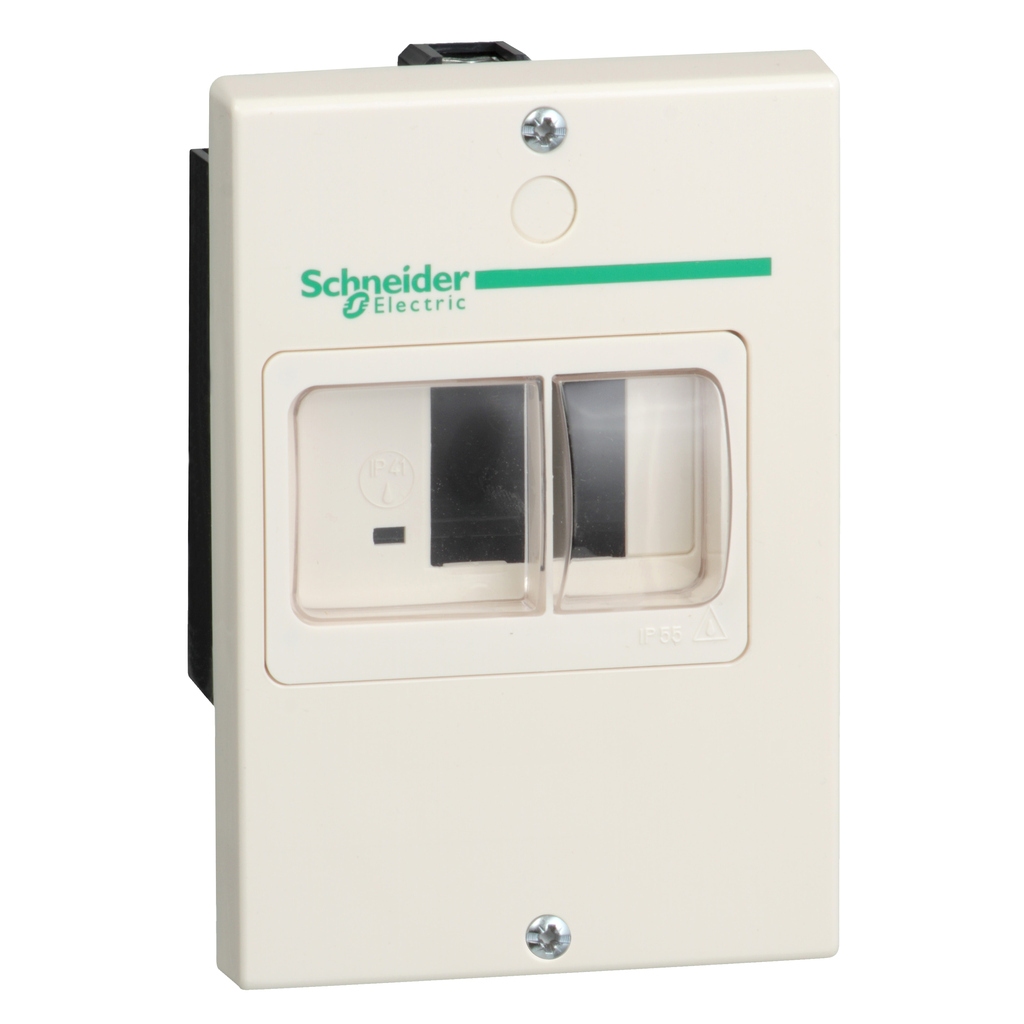

The Schneider Electric GV2MP04 is an IP55 rated enclosure designed for thermal magnetic circuit breakers GV2ME. This flush mounting enclosure features a front face that is reduced for easy installation and includes a sealable cover. The enclosure is made from polycarbonate and is double insulated with a protective conductor. It is intended to be used with a motor circuit breaker GV2ME and start-emergency stop buttons GV2K, which must be ordered separately. Additional mounting options include one side auxiliary contact block on the right-hand side of the GV2ME. The product adheres to IEC 60947-2 and IEC 60947-4-1 standards and is compliant with Green Premium (RoHS/REACh).

• IP55 rated for dust and water resistance.
• Compatible with thermal magnetic circuit breakers GV2ME.
• Double insulated construction and sealable cover.

Product Highlights

Ideal for reliable motor control applications, this enclosure ensures protection and compliance with industry standards.

Product Information

Standard Information

• Catalog Number: GV2MP04
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Enclosure
• Brand: Schneider Electric
• Protection Rating: IP55
• Overall Dimensions: Height 133 mm, Width 93 mm, Depth 98 mm
• Weight: 0.29 lb
• Warranty Length: 18 months
• Country of Origin: Czech Republic
• Certifications: CE, UKCA
• Environmental Conditions: Standard Environment
