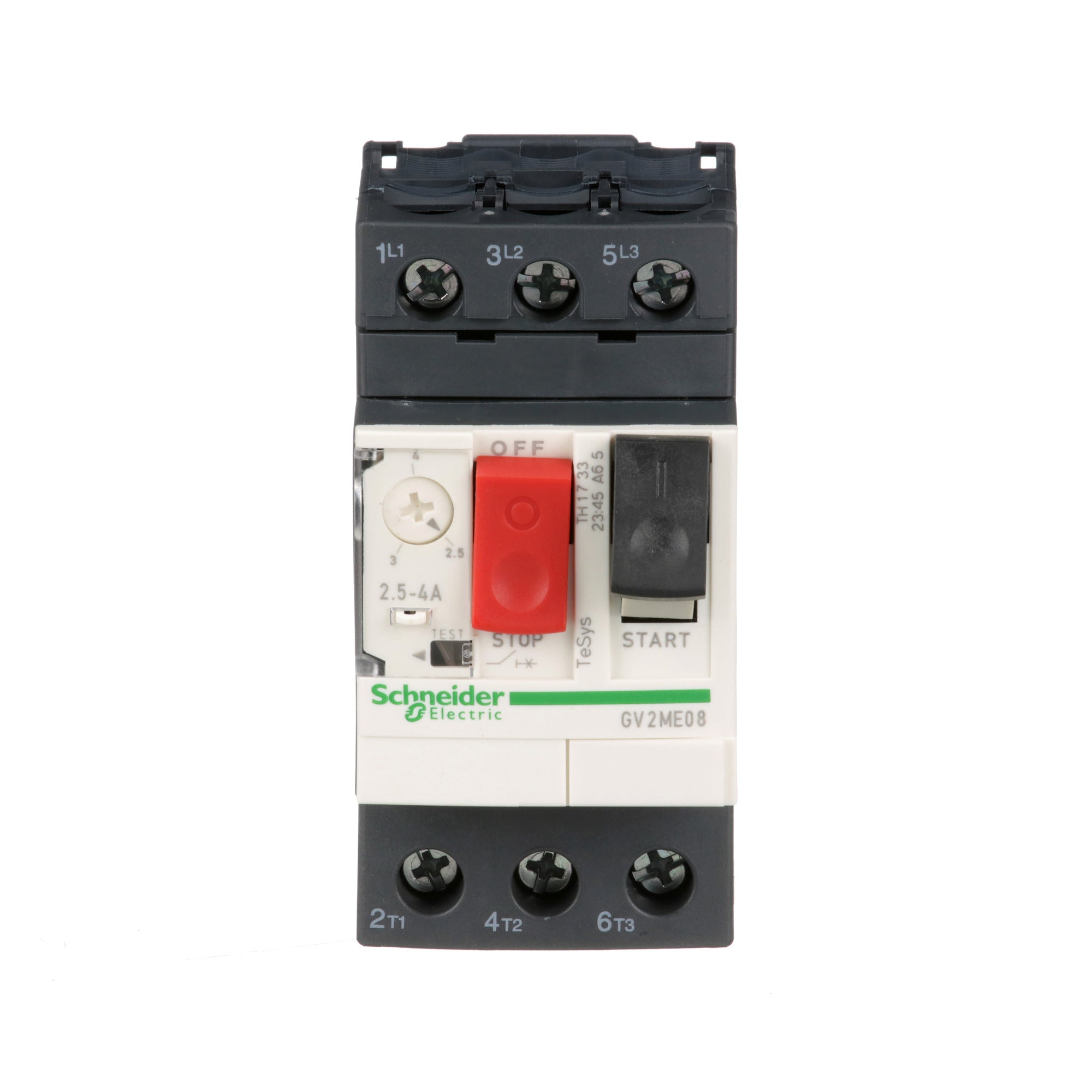

Schneider Electric GV2ME08 MOTOR CIRCUIT BREAKER TESYS DECA 3P 2.5-4 A

Product Description

Schneider Electric GV2ME08 is a motor circuit breaker designed for three-phase motor applications. This device provides both thermal and magnetic protection, with a setting range of two point five to four amps. It is rated for use at six hundred ninety volts and is suitable for motors with power ratings from one point one to one point five kilowatts at four hundred volts.

• Thermal-magnetic protection for reliable performance
• High breaking capacity rated at one hundred kA at four hundred volts
• Easy connection with screw clamp terminals

Product Highlights

This circuit breaker includes push-button controls and is tested for one hundred thousand operating cycles.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• MPN: GV2ME08

Technical Specifications

• Type: Motor starters/protection
• Number of Poles: Three
• Voltage Rating: Six hundred ninety volts
• Amperage: Four amps
• Breaking Capacity: One hundred kA at four hundred volts
• Operating Temperature: Negative twenty to sixty degrees Celsius
• Certifications: IEC, UL, CSA, CCC, EAC, Marine, ATEX
• Warranty: Eighteen months
