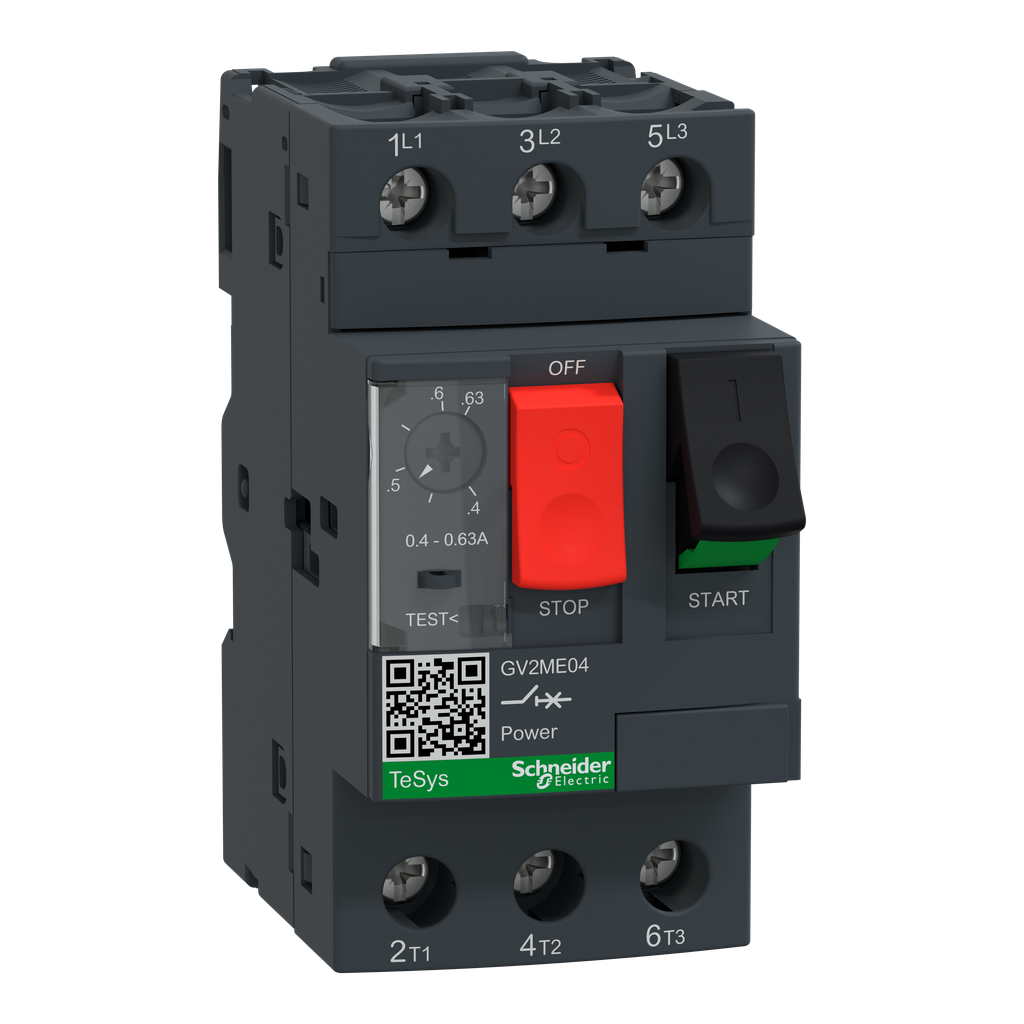

Schneider Electric GV2ME04 Square D 3-Pole 600 VAC 0.63 Amp Manual Starter

Product Description

The Schneider Electric GV2ME04 is a 3-pole manual starter rated for 600 VAC and 0.63 Amp. It is designed for 3-phase motor applications with power ratings between 0.12 and 0.18 kilowatts at 400 volts. The device features thermal-magnetic protection, allowing for a thermal setting range from 0.4 to 0.63 Amps and magnetic tripping at 13 times the nominal current. The high breaking capacity is rated at 100 kA at 400 volts. Connections are made using screw clamp terminals, which ensure a reliable connection. This product is designed for start-stop control through push-button operation, guaranteed for one hundred thousand cycles under AC-3 conditions. The GV2ME04 is certified to multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine regulations, and it adheres to the Green Premium compliance guidelines for RoHS and REACh.

• 3-pole manual starter.
• Rated for 600 VAC and 0.63 Amps.
• Thermal-magnetic protection.

Product Highlights

This manual starter is suitable for various motor protection applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: GV2ME04
• Voltage: 690 Volt
• Amperage: 0.63 Amp
• Number of Poles: 3 Pole
• Height: 89 mm
• Width: 45 mm
• Depth: 78.5 mm
• Weight: 0.57 lb
