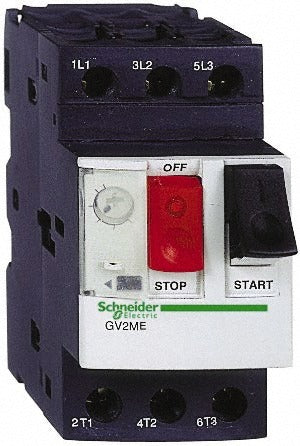

Schneider Electric GV2ME02 Motor Circuit Breaker 0.25A 690V 3P

Product Description

The SCHNEIDER ELECTRIC GV2ME02 is a 3-pole motor circuit breaker rated for 0.25 amps at up to 690 VAC at 50/60 Hz. It uses a thermal-magnetic tripping mechanism to provide both overload and short-circuit protection for small motor loads. The unit features a bolt-on, clip-mount installation style and screw-type terminal connections. Licensed electricians and industrial maintenance technicians install this device in motor control centers, control panels, and distribution boards where reliable motor branch-circuit protection is required. Multiple breaking capacity ratings expand its application range across different fault-current environments.

The GV2ME02 is suited for commercial and light industrial installations where compact motor protection is needed in tight panel layouts. Its 3-pole configuration makes it appropriate for three-phase motor branch circuits requiring coordinated overload and short-circuit protection in a single device. The screw terminal connections and clip-mount design are compatible with standard DIN-rail motor control assemblies.

Key Features

• Thermal-magnetic trip mechanism provides combined overload and short-circuit protection
• Rated 0.25 amps at 690 VAC, 50/60 Hz for small motor loads
• 3-pole design for three-phase motor branch-circuit applications
• Bolt-on, clip-mount installation for secure panel mounting
• Screw-type terminal connections for reliable field wiring
• Multiple breaking capacity ratings for use in varying fault-current environments

Compatibility

Designed as an OEM-style replacement motor circuit breaker for three-phase motor branch-circuit protection applications in commercial and industrial control panels.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lockout/tagout the panel before mounting or wiring the device. Verify that the connected motor load does not exceed the 0.25-amp rating of this breaker before energizing. Do not exceed the rated voltage or attempt to modify the thermal-magnetic trip mechanism.
