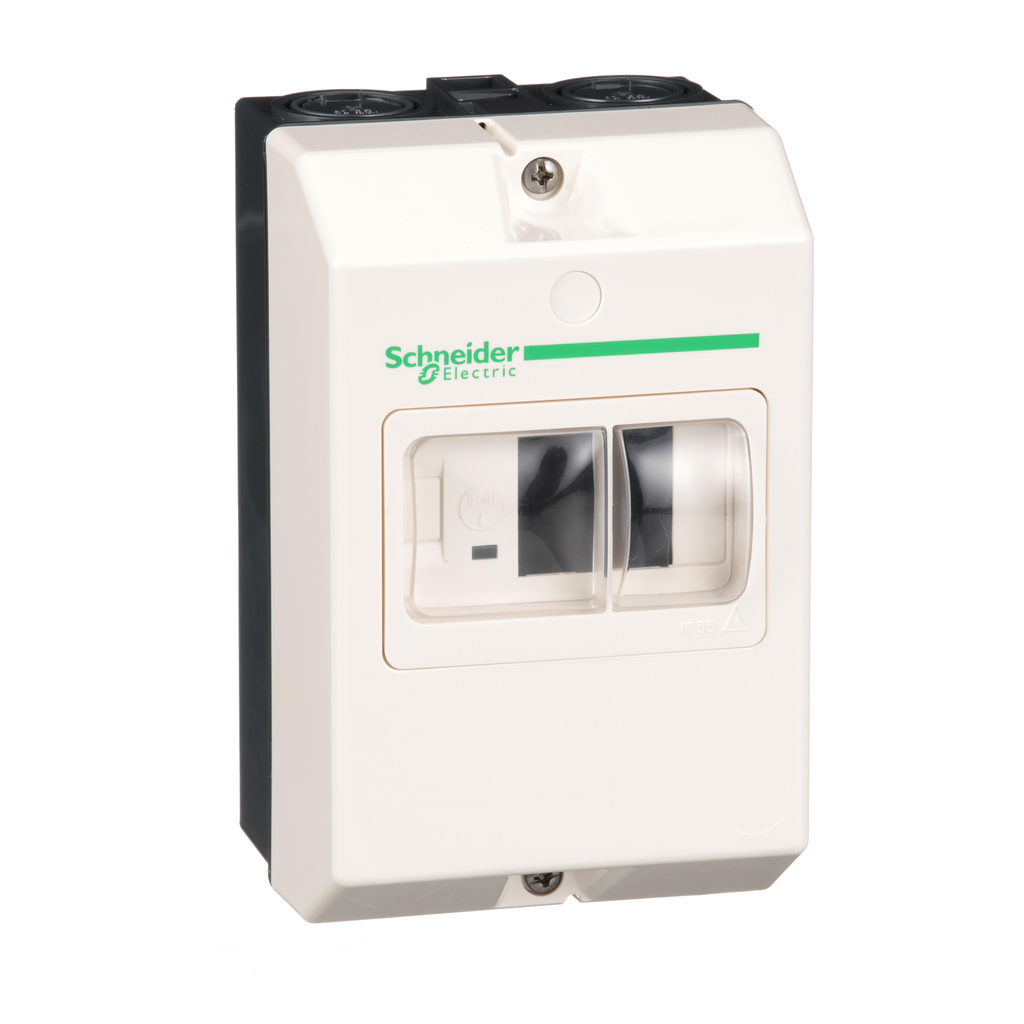

Schneider Electric GV2MC02 Square D Surface Mount Manual Starter Enclosure

Product Description

Schneider Electric GV2MC02 is a surface mount manual starter enclosure designed for thermal magnetic circuit breakers GV2ME. This enclosure accommodates a surface mounting requirement and features screw fixation for secure installation. It has two knock-outs for cable glands located on the top and bottom, enabling easy access for wiring. The enclosure is made of polycarbonate, offering durability and double insulation, and has an IP55 protection rating to guard against dust and water ingress.

It is intended for use with a motor circuit breaker GV2ME and start-emergency stop buttons GV2K, which must be purchased separately. The enclosure can also accommodate one side auxiliary contact block on either side of the GV2ME, also sold separately. This product complies with IEC standards 60947-2 and 60947-4-1 and is Green Premium compliant (RoHS/REACh).

• Surface mounted design for easy installation
• IP55 rated for protection against dust and water
• Compatible with GV2ME circuit breakers and auxiliary contact blocks

Product Highlights

This enclosure supports various electrical configurations and enhances safety in motor control applications.

Product Information

Standard Information

• Catalog Number: GV2MC02
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Schneider Electric
• Type: Enclosure; GV2MC
• Size: Three point three one inches
• Width: Ninety-three millimeters
• Height: One hundred forty-seven millimeters
• Depth: Eighty-four millimeters
• Weight: Zero point six six pounds
• Country of Origin: Czech Republic
• Operating Temperature: Negative five degrees Celsius to fifty-five degrees Celsius
• Environmental Conditions: Standard environment
