Schneider Electric GV2G445 Square D GV2G445 45 Mm 3-Pole 600 Vac 63 Amp Manual Starter Busbar

Product Description

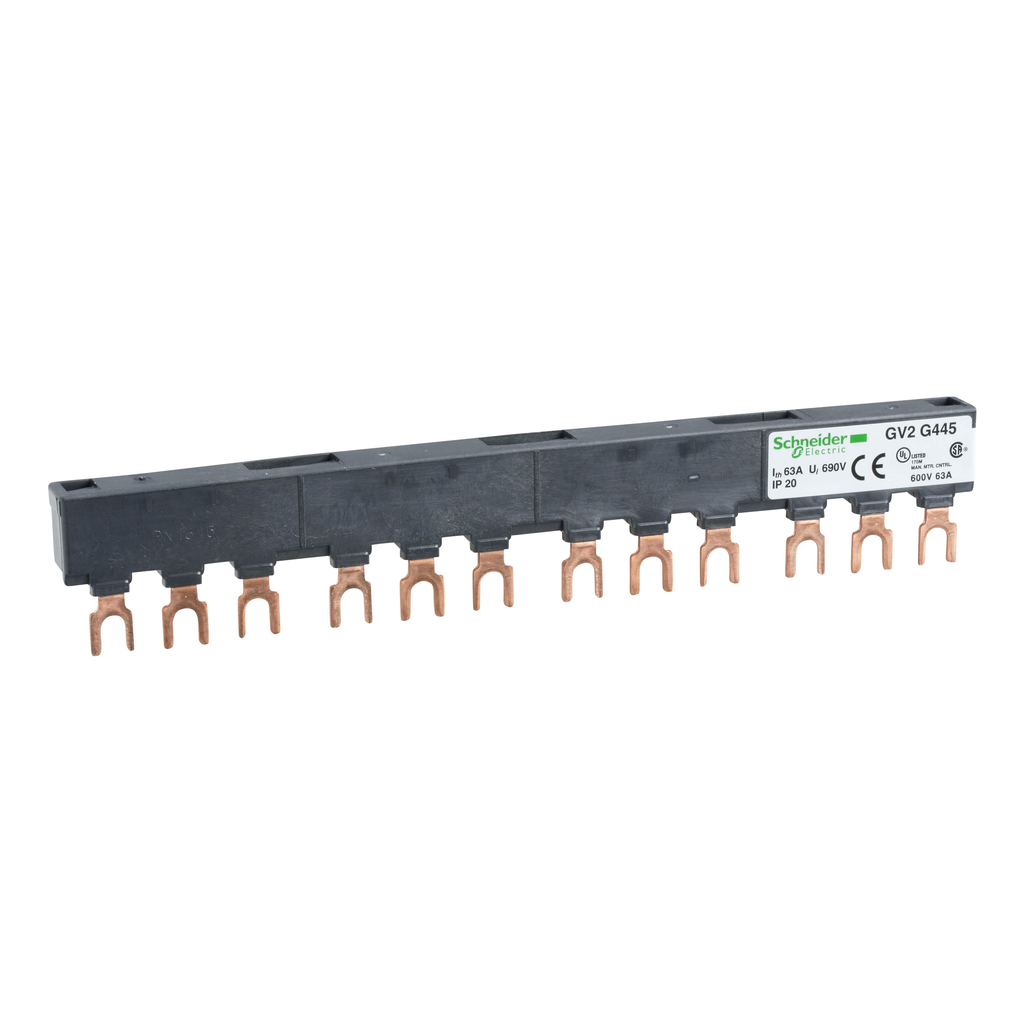

Schneider Electric GV2G445 is a manual starter busbar designed for the upstream parallel wiring of motor starters. This unit can handle up to 63 Amps at 600 VAC and is suitable for use with GV2 motor circuit breakers or LS1D32 fuse carriers. It features four tap-off outlets, allowing for the connection of up to four devices with a pitch of forty-five millimeters. The busbar is designed for screw clamp terminal devices. A terminal block, such as GV1G09 or GV2G05, is recommended for optimal performance and is sold separately. This product complies with Green Premium standards (RoHS/REACH).

• Rated for 63 Amps, 600 VAC
• Includes four tap-off outlets
• Designed for three-phase systems

Product Highlights

This busbar is ideal for applications requiring parallel wiring of multiple motor starters.

Product Information

Standard Information

• Catalog Number: GV2G445
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 63 A
• Length: 179 mm
• Number of Poles: 3
• Connection Type: Terminal mount screw clamp
• Weight: 0.17 lb
• Country of Origin: Romania
• Warranty Length: 18 months
