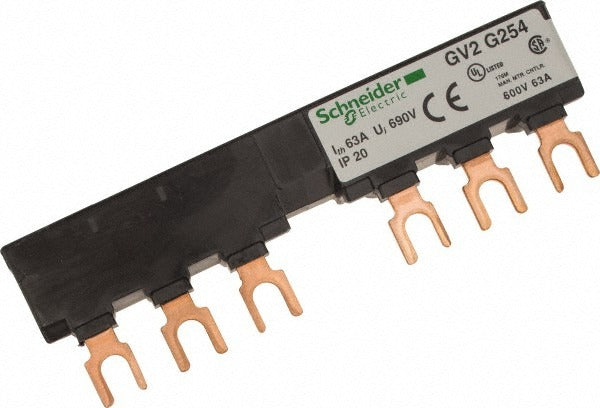

Schneider Electric GV2G254 Comb Busbar Accessory

Product Description

The SCHNEIDER ELECTRIC GV2G254 is a comb busbar accessory designed to interconnect compatible circuit breakers and motor starters in a shared power distribution arrangement. The busbar simplifies multi-pole wiring by allowing a single connection point to feed multiple devices simultaneously, reducing individual wiring runs and improving panel organization. At 3.9 inches in length, 1.2 inches in width, and 0.4 inches in height, it is compact enough for tight enclosure layouts. This component is installed by licensed electricians and industrial control panel builders working on motor control and distribution assemblies.

The GV2G254 comb busbar is suited for use in motor control centers, industrial control panels, and distribution assemblies where multiple Schneider Electric devices share a common bus. It is rated for use with Linergy busbar systems, TeSys D contactors, TeSys GV2 motor circuit breakers, TeSys K contactors, and TeSys U motor starters. Typical installation scenarios include manufacturing and process control environments where grouped motor protection and switching devices are mounted on common DIN rail assemblies.

Key Features

• Comb busbar design simplifies multi-device power interconnection in a single assembly step
• Compatible with Linergy, TeSys D, TeSys GV2, TeSys K, and TeSys U product families
• Compact form factor at 3.9 x 1.2 x 0.4 inches fits standard industrial enclosure layouts
• Reduces point-to-point wiring between adjacent devices on shared DIN rail mounting
• Sold and packaged as an individual accessory unit

Compatibility

Designed for use with Schneider Electric Linergy busbar systems, TeSys D, TeSys GV2, TeSys K, and TeSys U series devices as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and the manufacturer's wiring diagrams. De-energize and lock out the panel before installing or removing any busbar accessory. Verify device spacing and pole alignment against the manufacturer's documentation before seating the comb busbar to avoid damage to the connection contacts. Do not modify or cut the busbar to fit non-specified configurations.
