Schneider Electric GV2APN02 Square D NEMA 1/12 Door Operating Mechanism Kit with Trip Indication

Product Description

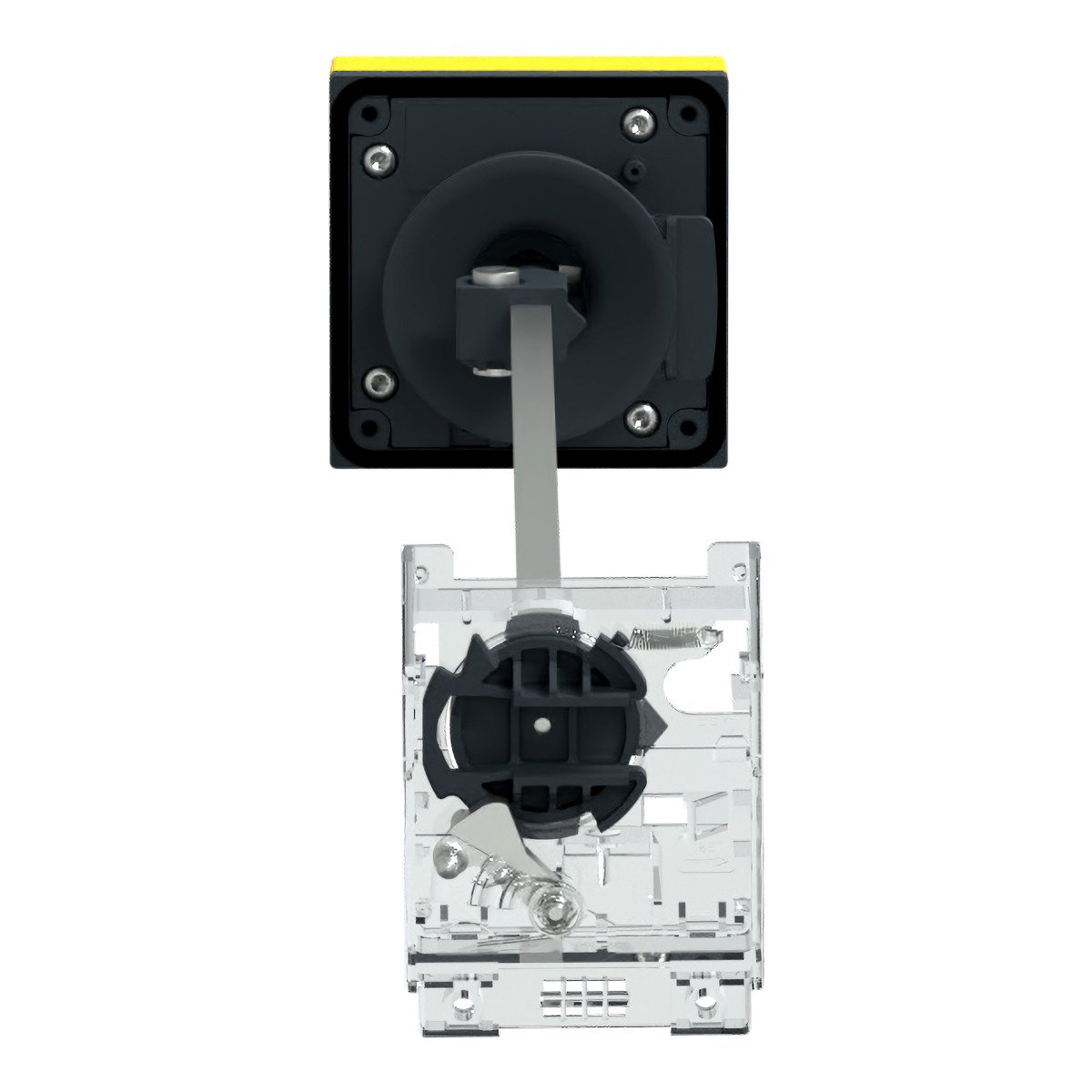

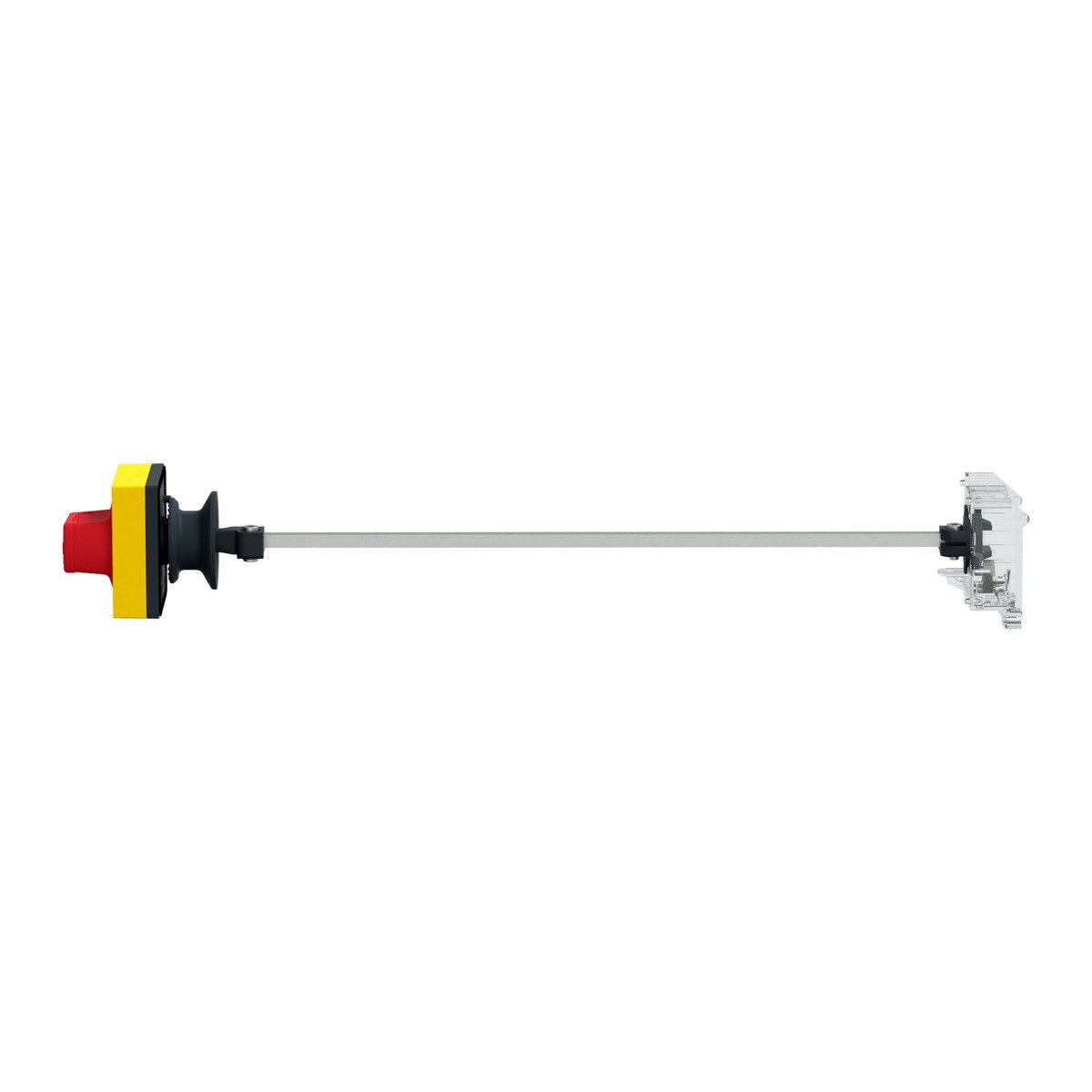

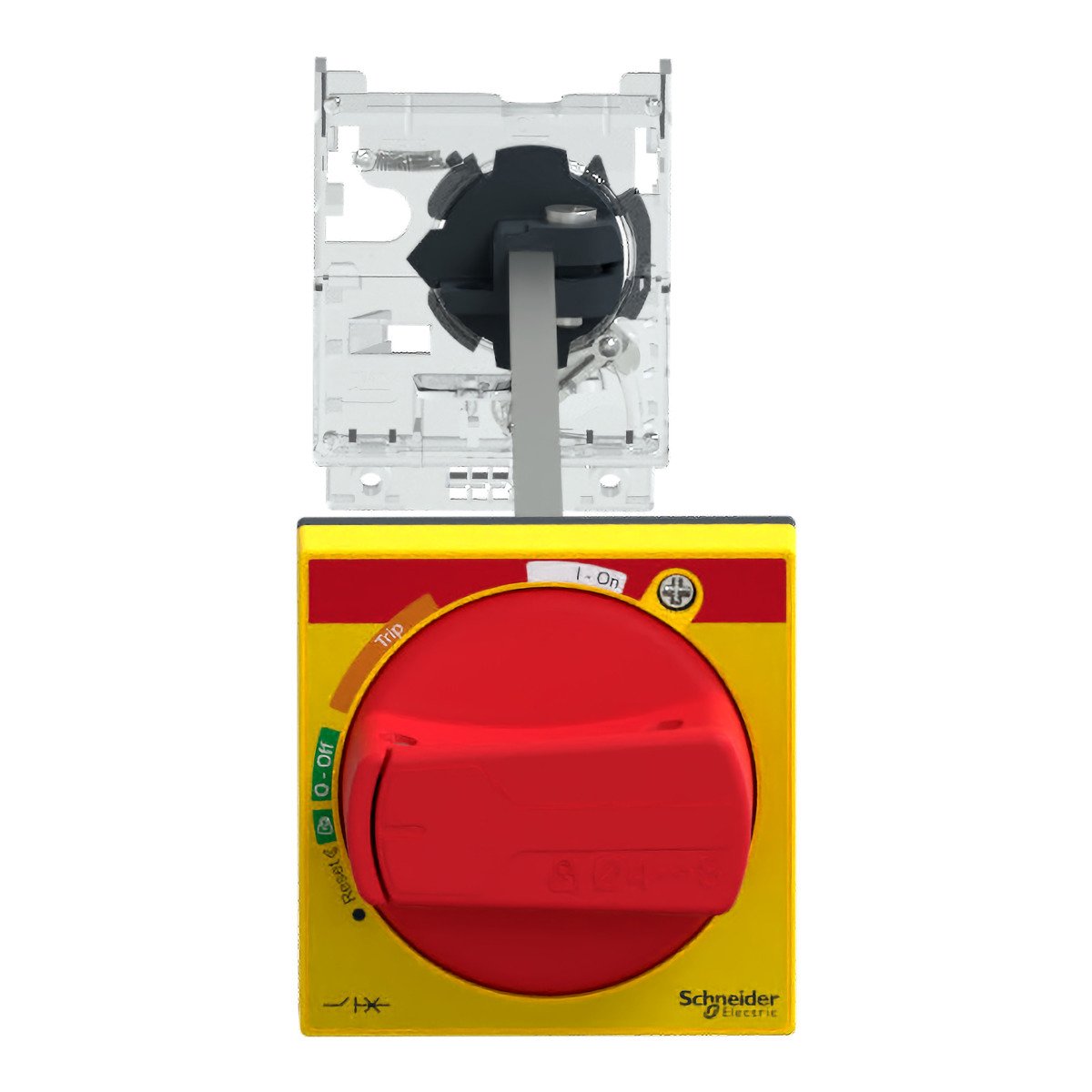

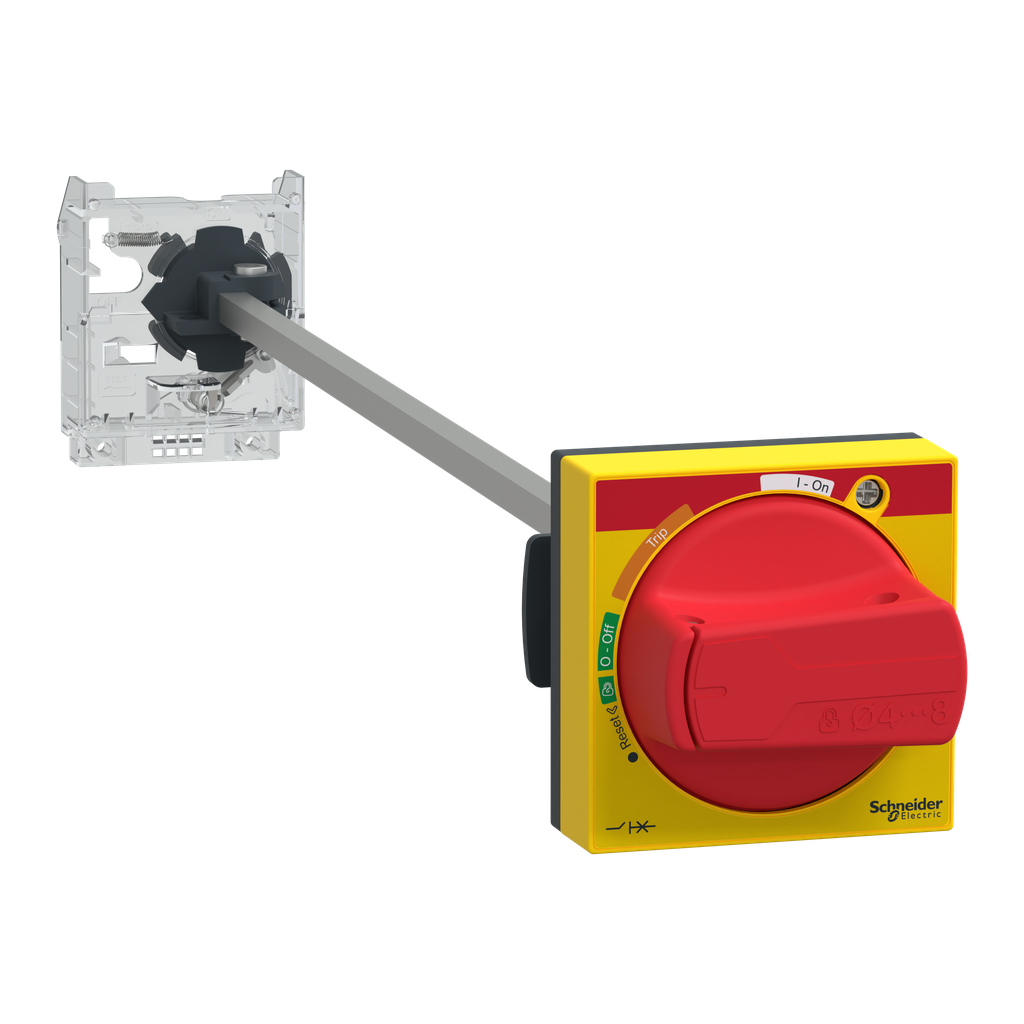

Schneider Electric GV2APN02 is a rotary handle kit designed for motor circuit breakers GV2L and GV2P. This kit is suitable for external operation of breakers mounted inside enclosures. The device features a red handle on a yellow front plate with three position indications: OFF, ON, and TRIP. It is intended for installation on the door of the enclosure and ensures IP54 protection. Included is a mounting adaptor which attaches to the circuit breaker. An extension shaft can be adjusted in length, accommodating a distance of one hundred forty-six to two hundred fifty-six millimeters between the door and the circuit breaker. It can be locked in the OFF position with up to three separate padlocks (padlocks not included). The product meets Green Premium compliance standards, including RoHS and REACh.

• Compatible with GV2L and GV2P circuit breakers
• IP54 protection rating
• Padlockable in OFF position

Product Highlights

This rotary handle kit simplifies external access to circuit breakers and enhances safety during maintenance operations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: GV2APN02
• Type: Rotary handle kit
• Enclosure Rating: IP54
• Weight: 0.66 lb
• Net Weight: 0.3 kg
• Country of Origin: Czech Republic
• Warranty Length: 18 months
• GTIN: 03606480160943
