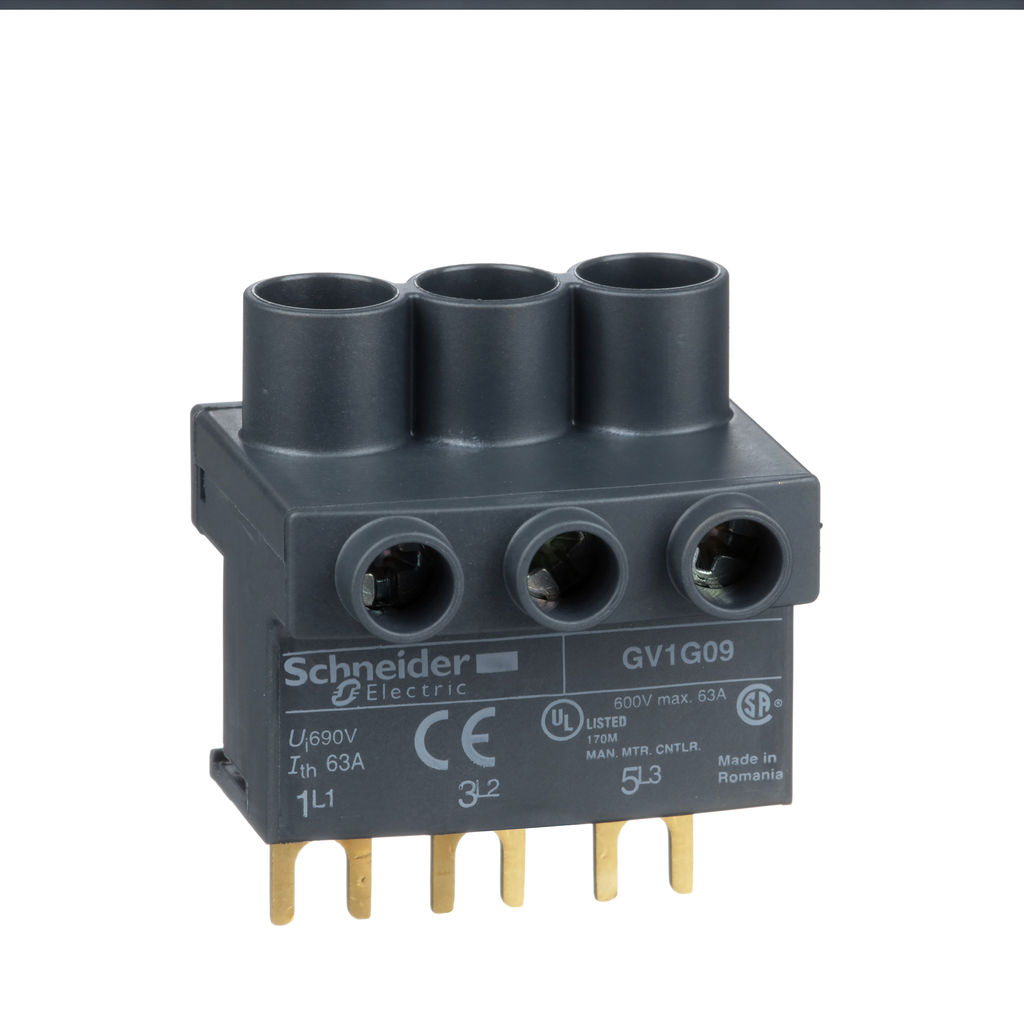

Schneider Electric GV1G09 Square D 3-Pole 575 VAC 63 Amp Terminal Block

Product Description

The Schneider Electric GV1G09 is a terminal block designed for use with busbar systems. This model supports three phases with a voltage rating of six hundred ninety volts and an amperage of sixty-three amps. The GV1G09 is intended to connect directly to the top terminals of devices linked by busbar sets. Connection to the supply cable is made through screw connectors. This terminal block is compliant with Green Premium standards, ensuring it meets RoHS and REACh requirements.

• Three-phase operation with a voltage rating of six hundred ninety volts.
• Amperage rated at sixty-three amps.
• Direct connection with screw terminals for solid and flexible wires.

Product Highlights

The GV1G09 is ideal for use in motor control applications requiring robust terminal connections. Its design ensures reliability in high-demand environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square D

Technical Specifications

• Catalog Number: GV1G09
• Voltage Rating: 690 Volt
• Amperage Rating: 63 Amp
• Number of Poles: 3 Pole
• Country of Origin: Romania
• Weight: 0.09 lb
• Enclosure Rating: IP20 according to IEC 60529
• Connections: Screw clamp terminals
