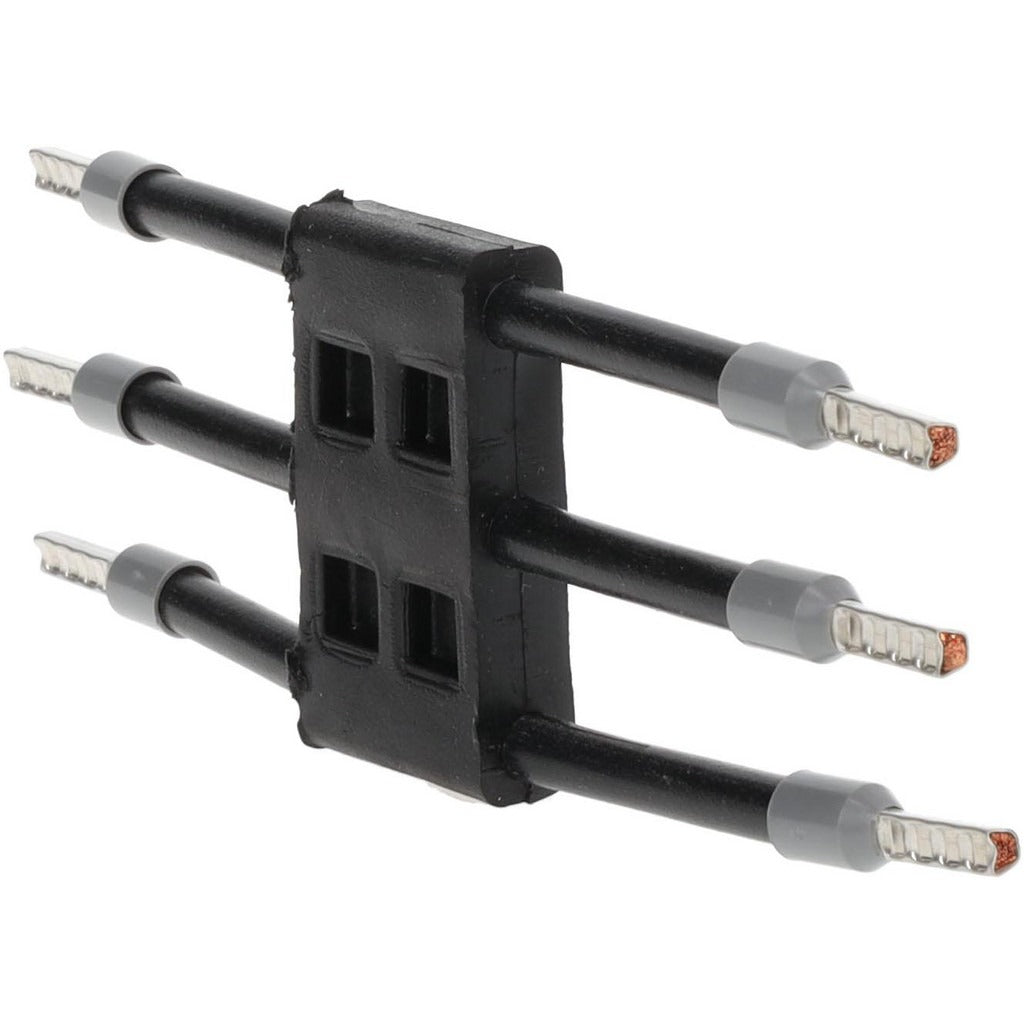

Schneider Electric GV1G02 Flexible Connection 25A

Product Description

The SCHNEIDER ELECTRIC GV1G02 is a flexible connection accessory designed for use with 3-pole motor circuit breakers and compatible contactor assemblies. Rated at 25 amps across a 3-pole configuration, it provides a wiring-free bus connection between a circuit breaker and downstream contactor, reducing installation time and minimizing loose conductor terminations in the assembly. The GV1G02 measures 3.5 inches in length, 1.2 inches in width, and 0.2 inches in height, making it a compact component suited for panel and enclosure builds. Licensed electricians and panel builders install this type of accessory during motor control center assembly or starter package construction.

The GV1G02 is intended for use in motor control and starter assemblies where a direct, rigid or flexible bus connection between a circuit breaker and contactor is required. It is compatible with the LC1D09 through LC1D38 contactor range and Linergy busbar systems. This type of connection accessory is commonly found in commercial and light industrial applications where compact motor starters are assembled in enclosed panels or disconnect enclosures.

Key Features

• 25-amp rating across a 3-pole configuration for motor starter applications
• Flexible connection design reduces wiring complexity between breaker and contactor
• Compact footprint at 3.5 x 1.2 x 0.2 inches for tight enclosure builds
• Compatible with LC1D09-D38 contactor range and Linergy busbar systems
• Direct OEM accessory for clean, factory-style assembly

Compatibility

Designed for use with LC1D09-D38 contactors and Linergy busbar systems as stated by the manufacturer.

Installation Notes

Installation is typically performed by a licensed electrician during motor starter or motor control center assembly. Always de-energize and lock out the panel before installing or removing connection accessories. Verify that the breaker and contactor combination matches the amperage rating of the GV1G02 before assembly. Follow applicable NEC requirements for motor branch circuit protection and control wiring.
