Schneider Electric GV1F03 Height Compensation Plate

Product Description

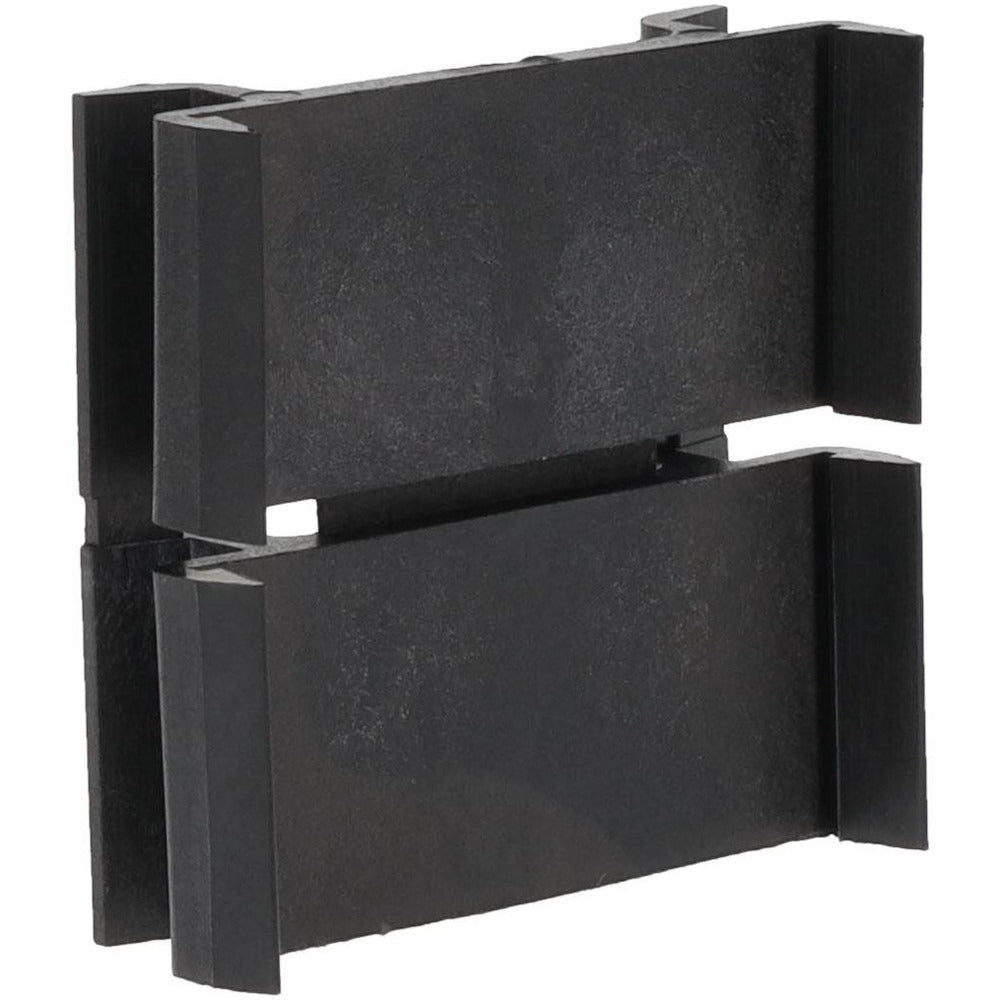

The SCHNEIDER ELECTRIC GV1F03 is a height compensation plate designed for use with circuit breaker assemblies in TeSys and TeSys GV2 motor protection systems. This small but critical accessory ensures proper mechanical alignment and consistent mounting height when integrating circuit breakers into panel assemblies or enclosures. Measuring 1.5 inches in length, 1.4 inches in width, and 0.5 inches in height, the GV1F03 is a compact component that helps maintain proper fit during installation. Licensed electricians and panel builders typically install this part during motor starter and circuit breaker assembly work.

The GV1F03 is used in industrial and commercial electrical panel assemblies that incorporate TeSys or TeSys GV2 motor protection circuit breakers. It is particularly relevant in applications where breaker height offset adjustment is needed to achieve flush or consistent mounting across an assembly. This plate is suited for panel shops, OEM build environments, and field retrofit situations where TeSys GV2 components are being replaced or reconfigured.

Key Features

• Provides height compensation for consistent breaker mounting in TeSys and TeSys GV2 assemblies
• Compact form factor: 1.5 inches x 1.4 inches x 0.5 inches
• Lightweight at 0.02 pounds, minimizing added load to panel assembly
• OEM-designed accessory for mechanical compatibility with TeSys circuit breaker platforms
• UNSPSC Code 39121529 for procurement and catalog classification

Compatibility

The GV1F03 is compatible with TeSys and TeSys GV2 circuit breaker assemblies as stated by the manufacturer.

Installation Notes

Installation of this height compensation plate should be performed by a qualified electrician following applicable NEC guidelines. De-energize and lock out the panel or enclosure before handling any circuit breaker components. The plate is positioned to correct mounting height offset during breaker assembly; refer to the TeSys GV2 installation documentation for proper placement sequence. Do not force-fit the plate, as incorrect alignment can affect breaker seating and mechanical operation.
