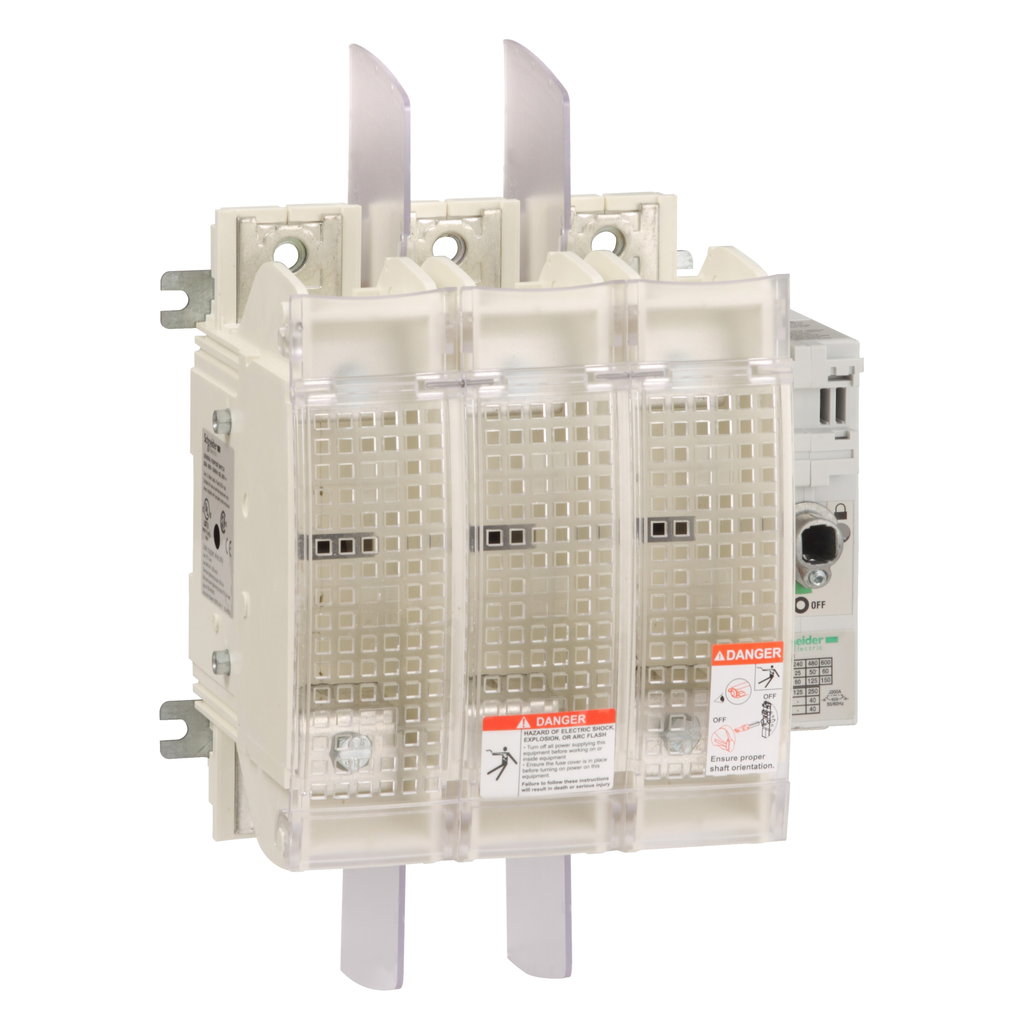

Schneider Electric GS2MU3N 600 Vac 200 Amp 3-Pole Manual Starter Enclosure Fusible Disconnect Switch

Product Description

The Schneider Electric GS2MU3N is a three-pole manual starter enclosure fusible disconnect switch designed for effective motor protection. It operates at 600 volts with a current rating of 200 amps, suitable for motors with applications up to one hundred kilowatts at four hundred volts. This switch can be paired with class J fuse links for optimal performance. It features screw terminals for easy installation and can accommodate an external operating handle.

• Rated for three poles and a maximum of 200 amps.
• Compliant with UL and CSA standards.
• Designed for motor applications up to one hundred kilowatts.

Product Highlights

The GS2MU3N provides high short circuit current ratings, equipped to handle demands in industrial applications. The device is also Green Premium compliant and RoHS certified, ensuring minimal environmental impact.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square-D / Schneider

Technical Specifications

• Catalog Number: GS2MU3N
• Depth: 130 mm
• Width: 196.2 mm
• Height: 195 mm
• Wattage: 100 kW at 400 Volt, 140 kW at 500 Volt, 185 kW at 690 Volt
• Amperage: 200 Amp
• Enclosure: IP20 with terminal cover
• Operating Temperature: -20 to 70 degrees Celsius
• Interrupt Rating: 1.6 kAIC
